990233 - Simplicity Super Roticul Tiller, 4hp SUPER ROTICUL MFR. NO. 233 - Diagram 3 Parts Diagram

Super Roticul Tiller, 4hp

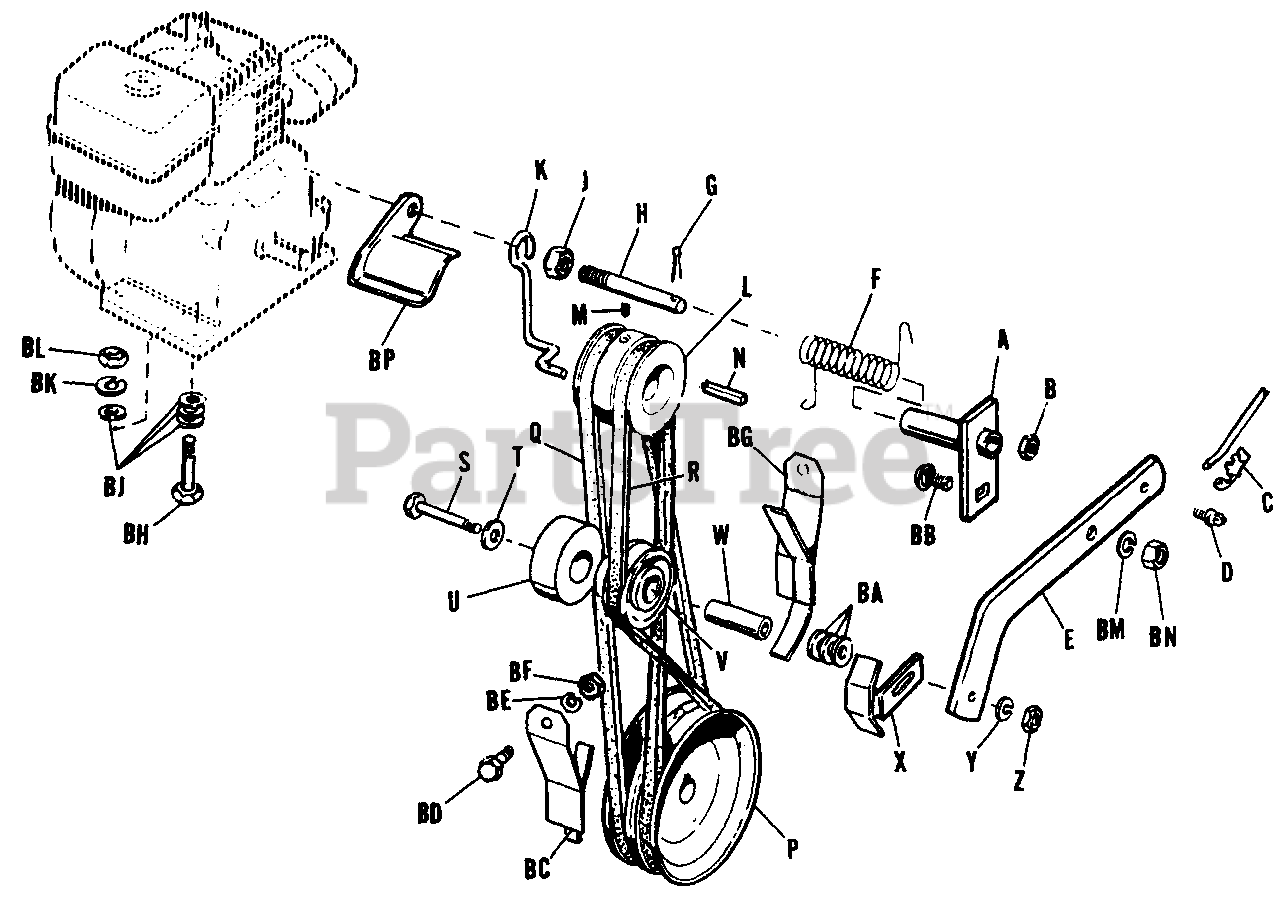

SUPER ROTICUL MFR. NO. 233 - Diagram 3 Parts Diagram

  • Title

A

Simplicity 118150

Support Assembly, Idler Lever

$

$

Not available

B

Simplicity 2717513

Hex Nut, Full Lock, 1/4-20

$

$

Not available

C

Simplicity 118108

Clip, Rod Clevis

$

$

Not available

D

Simplicity 118109

Screw

$

$

Not available

E

Simplicity 118149

Lever, Idler

$

$

Not available

F

Simplicity 118110

Spring, Idler Lever

$

$

Not available

G

Simplicity 2722006

Cotter Pin, 1/8" x 1"

$

$

Not available

H

Simplicity 118089

Engine Stud

$

$

Not available

J

Simplicity 2717016

Hex Jam Nut, 1/2" NF

$

$

Not available

K

Simplicity 118176

Belt Stop

$

$

Not available

L

Simplicity 118095

Drive Pulley

$

$

Not available

M

Simplicity 2713503

Set Screw, Socket Hd, 5/16-18 x 5/16

$

$

Not available

N

Simplicity 2805850SM

Key

$

$

Not available

P

Simplicity 118112

Driven Pulley

$

$

Not available

Q

Simplicity 2118068

V-Belt,"Forward"

$

$

Not available

R

Simplicity 2118116

V-Belt,"Reverse"

$

$

Not available

S

Simplicity 705013

Capscrew, Hex Hd, 3/8-16 x 3"

$8.99

$

In Stock, only 1 left!

0

T

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

U

Simplicity 101002

Pulley Assembly, Idler

$

$

Not available

V

Simplicity 118090

Pulley Assembly, Reverse Idler

$

$

Not available

W

Simplicity 118093

Spacer

$

$

Not available

X

Simplicity 118188

Belt Retainer

$

$

Not available

Y

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

Z

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BA

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

BB

Simplicity 2702002

Carriage Bolt, 3/8-16 x 1"

$

$

Not available

BC

Simplicity 118186

Belt Guard

$

$

Not available

BD

Simplicity 2705004

Capscrew, Hex Hd, 3/8-16 x 3/4"

$

$

Not available

BE

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BF

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BG

Simplicity 118183

Guard Assembly, Reverse Belt

$

$

Not available

BH

Simplicity 2705020

Capscrew, Hex 5/16-18 x 2"

$

$

Not available

BJ

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

BK

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BL

Simplicity 2717001

Nut, Hex, Full, 5/16-18

$

$

Not available

BM

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BN

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

BP

Simplicity 118180

Guard, Belt

$

$

Not available
