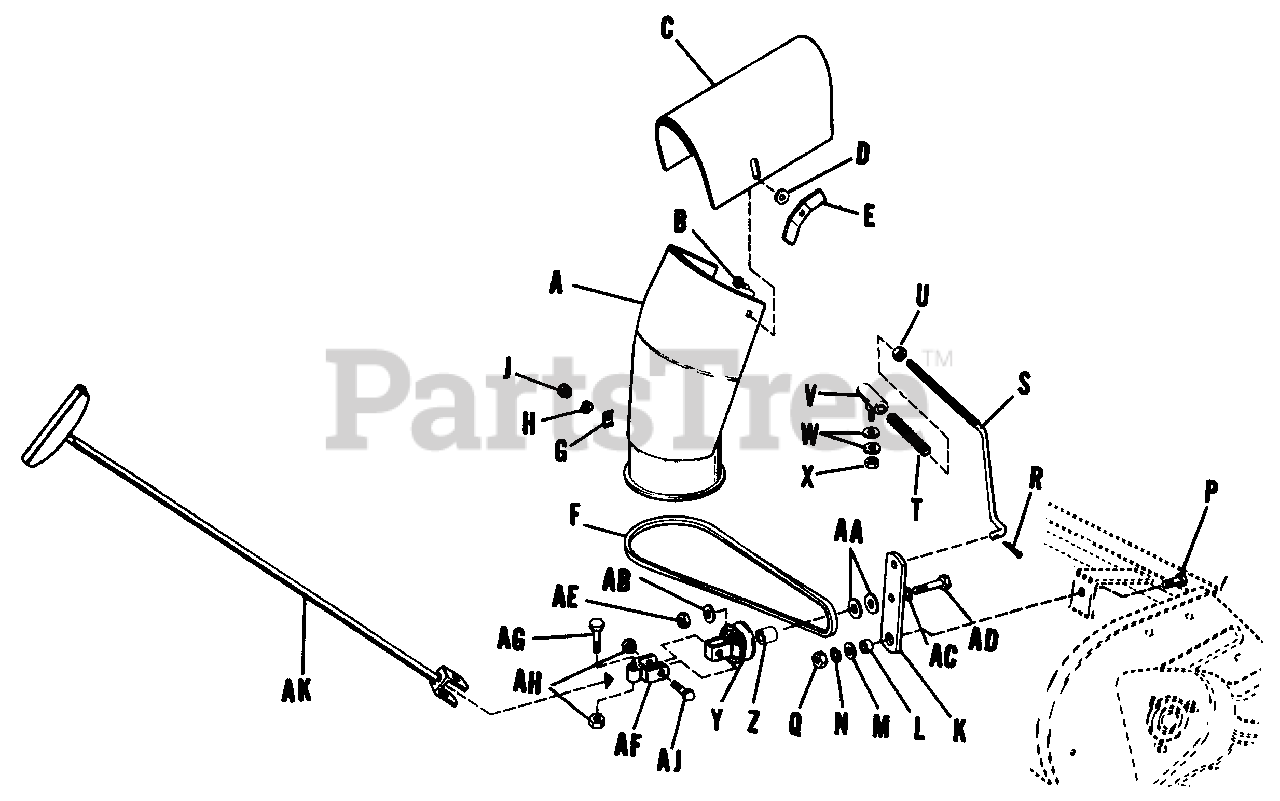

990221 - Simplicity Sno-Away 23" Snow Thrower SPOUT GROUP Parts Diagram

Sno-Away 23" Snow Thrower

SPOUT GROUP Parts Diagram

  • Title
A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 NC x 3/4" lg.

$

$

Not available

C

Simplicity 106331

Extension, Spout

$

$

Not available

D

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

E

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

F

Simplicity 106359

Belt, "V" (Spout)

$

$

Not available

$

$

Not available

H

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

J

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

K

Simplicity 106128

Lever, Idler Pulley

$

$

Not available

$

$

Not available

M

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

N

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

P

Simplicity 2705005

Capscrew, Hex, 3/8"-16 NC x 1" lg.

$

$

Not available

Q

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

R

Simplicity 106358

Rod, Belt Tightener

$

$

Not available

S

Simplicity 2722001

Pin, Cotter, 3/32" x 3/4" lg.

$

$

Not available

$6.99

$

In Stock, only 1 left!

0

U

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

V

Simplicity 106357

Socket Assembly, Rod

$

$

Not available

W

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

X

Simplicity 2717511

Nut, Lock, Full, Hex, 5/16"-18 NC

$

$

Not available

Y

Simplicity 106343

Pulley Assembly

$

$

Not available

$

$

Not available

$1.99

$

Usually ships in 2-12 days

0

AB

Simplicity 2719002

Washer, Plain

$

$

Not available

AC

Simplicity 2720002

Washer, Lock

$

$

Not available

AD

Simplicity 2705010

Capscrew, Hex, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available

AE

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

AF

Simplicity 2106131SM

Fork Assembly

$75.99

$

Usually ships in 2-12 days

0

AG

Simplicity 2705018

Capscrew, Hex., 5/16"-18 NC x 1-1/2" lg.

$

$

Not available

AH

Simplicity 2717511

Nut, Hex, Full, Lock, 5/16"-18 NC

$

$

Not available

AJ

Simplicity 2705023

Capscrew, Hex, 5/16"-18 NC x 1-3/4" lg.

$

$

Not available

AK

Simplicity 106160

Handle Assembly, Adjusting

$

$

Not available
