990220 - Simplicity Mobile Generator Mobile Generator Parts Diagram

Mobile Generator

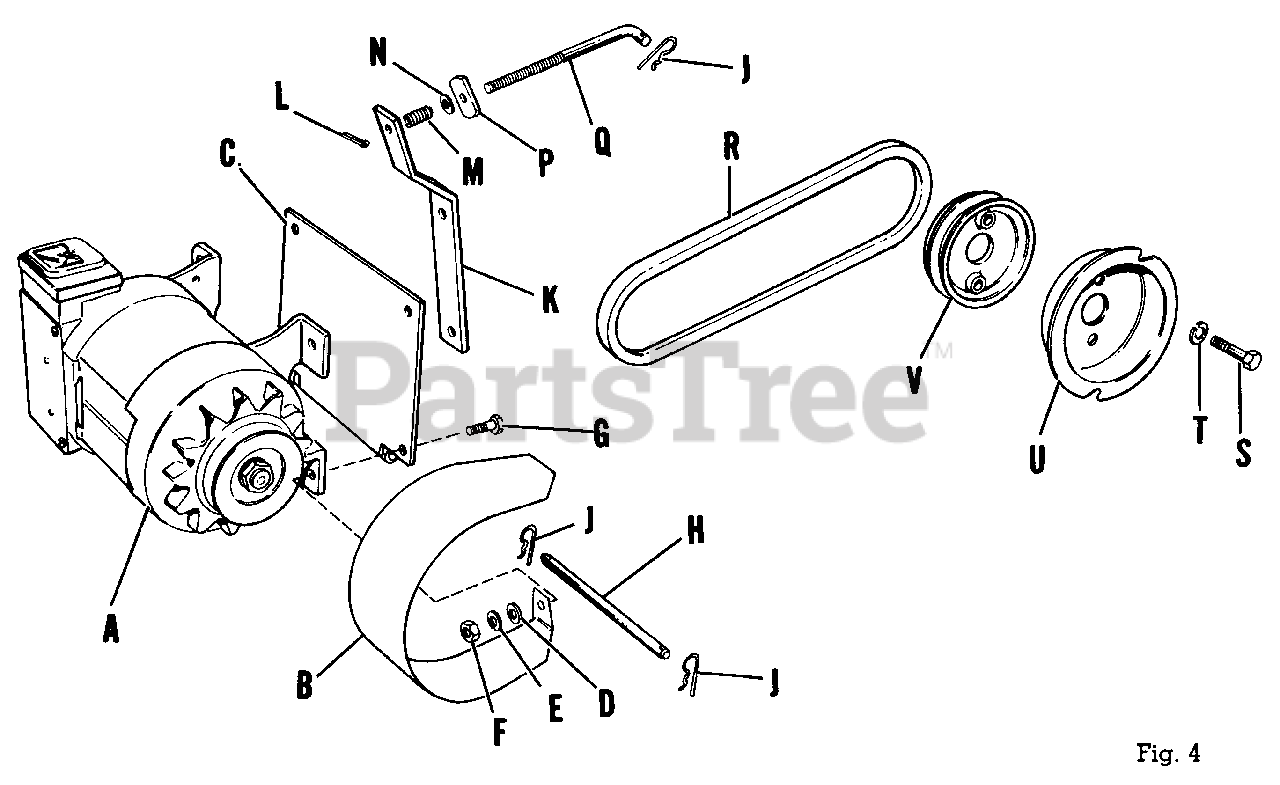

Mobile Generator Parts Diagram

  • Title

A

Simplicity 122070

Generator

$

$

Not available

B

Simplicity 122074

Guard, Generator

$

$

Not available

C

Simplicity 122071

Base Assembly, Generator

$

$

Not available

D

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

E

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

F

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

G

Simplicity 2705007

Capscrew, Hex Hd., 5/16"-18 NC x 1" lg.

$

$

Not available

H

Simplicity 105140

Rod, Pivot

$

$

Not available

J

Simplicity S1-A45A

Clip, Spring

$

$

Not available

K

Simplicity 122075

Bracket, Belt Tightening

$

$

Not available

L

Simplicity 2722005

Pin, Cotter, 3/32" dia. x 7/8" lg.

$

$

Not available

M

Simplicity 122077

Spring, Compression

$

$

Not available

N

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

P

Simplicity 718020

Nut, Wing

$

$

Not available

Q

Simplicity 122076

Rod, Adjusting

$

$

Not available

R

Simplicity 2122069

Belt, "V"

$

$

Not available

S

Simplicity 2705023

Capscrew, Hex Hd., 5/16"-18 NC x 1 3/4" lg.

$

$

Not available

T

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

U

Simplicity 154384

Pulley, Rope Starter

$

$

Not available

V

Simplicity 122068

Pulley

$

$

Not available
