990212 - Simplicity Tine Extension Tine Extension Kit Parts Diagram

Tine Extension

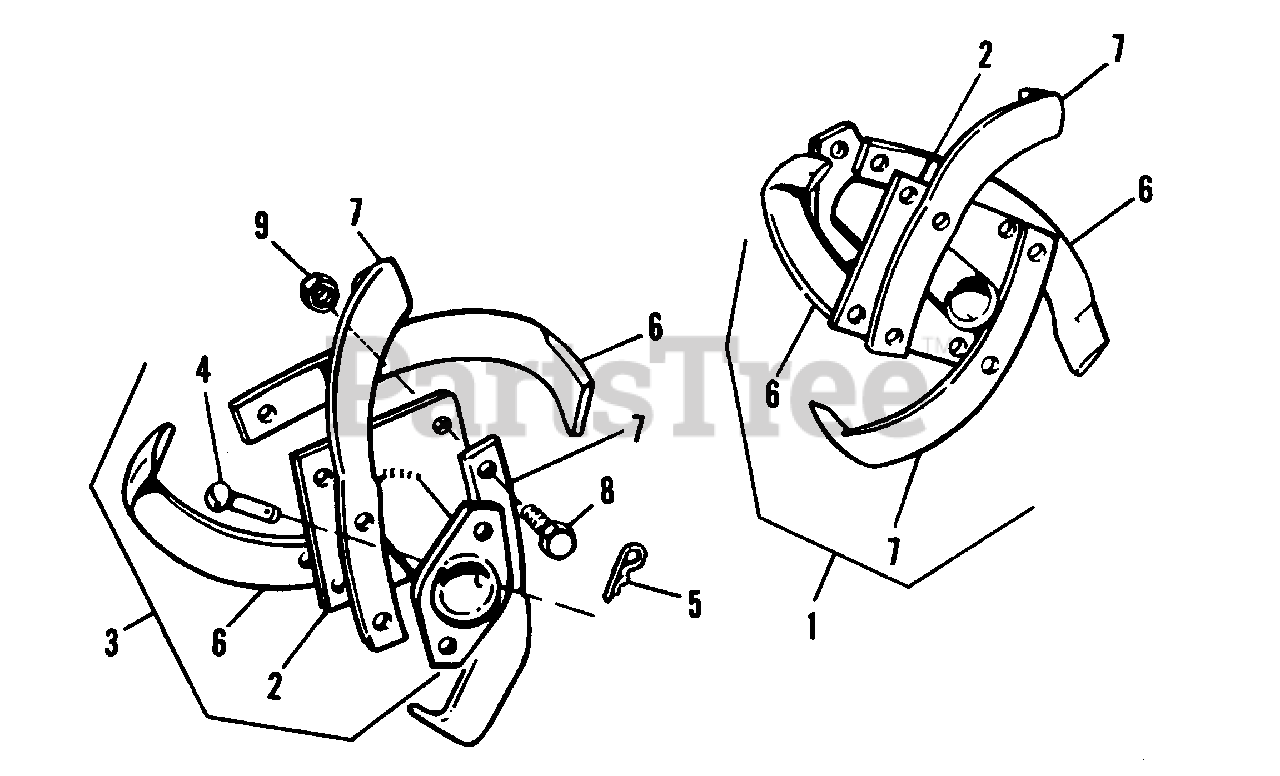

Tine Extension Kit Parts Diagram

  • Title

1

Simplicity 105222

EXTENSION ASSY, Tine Blade, L.H. Complete

$

$

Not available

1

Simplicity 1609339

EXTENSION ASSY, Tine Blade, L.H. Complete

Note: FOR USE ONLY WITH MFG. NO. 1600407

$

$

Not available

2

Simplicity 105221

PLATE ASSY, Tine Extension

$

$

Not available

2

Simplicity 1609334

PLATE ASSY, Tine Extension

Note: FOR USE ONLY WITH MFG. NO. 1600407

$

$

Not available

3

Simplicity 105223

EXTENSION ASSY, Tine Blade, R.H. Complete

$

$

Not available

3

Simplicity 1609340

EXTENSION ASSY, Tine Blade, R.H. Complete

Note: FOR USE ONLY WITH MFG. NO. 1600407

$

$

Not available

4

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

5

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1729271SM

BLADE, Tine, L.H.

$

$

Not available

7

Simplicity 1729272SM

BLADE, Tine, R.H.

$28.99

$

Usually ships in 2-12 days

0

8

Simplicity 920488

CAPSCREW, Hex, 7/16-20 x 1-1/4

$

$

Not available

9

Simplicity 2828867

NUT, Hex, Full, 7/16-20

$

$

Not available
