990209 - Simplicity Rear Cultivator REAR CULTIVATOR Parts Diagram

Rear Cultivator

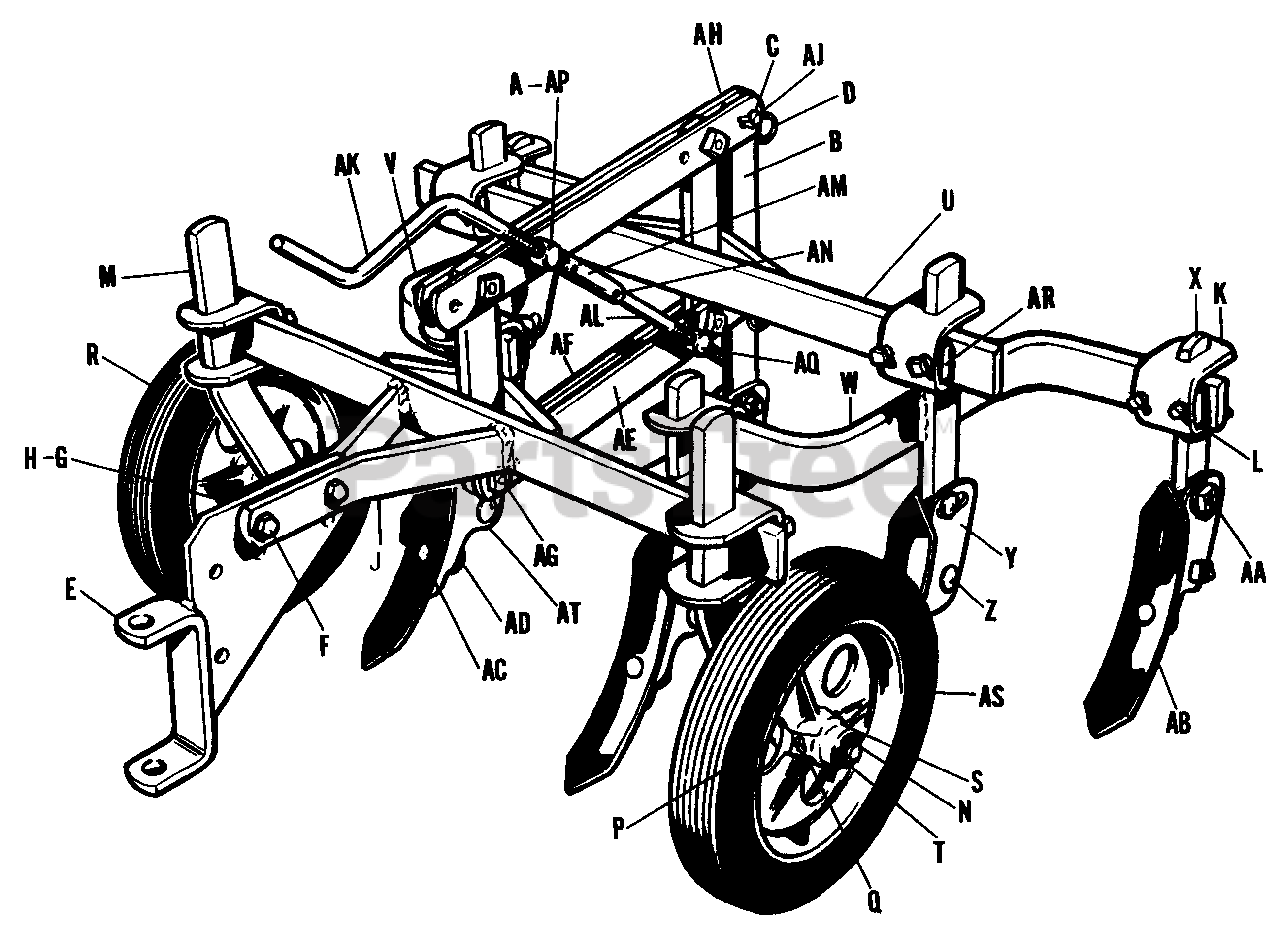

REAR CULTIVATOR Parts Diagram

  • Title

A

Simplicity 2722006

Pin, Cotter, 1/8" dia. x 1" LG.

$

$

Not available

B

Simplicity 8272013

Standard

$

$

Not available

C

Simplicity 1729281SM

Pin

$8.49

$

In Stock, only 1 left!

0

D

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

E

Simplicity 117011

End Assembly, Drawbar

$

$

Not available

F

Simplicity 2702005

Bolt, Carriage, 3/8-16 x 1-1/2"

$

$

Not available

G

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

H

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 NC

$

$

Not available

J

Simplicity 117012

Drawbar Assembly

$

$

Not available

K

Simplicity 8261023

Clamp, Shank

$

$

Not available

L

Simplicity 2713004

Screw, Set, 3/8"-16 x 1" lg.

$

$

Not available

M

Simplicity 112057

Standard, Wheel

$

$

Not available

N

Simplicity 112058

Spindle, Wheel

$

$

Not available

P

Simplicity 2717018

Nut, Jam, Hex., 5/8"-11 NC

$

$

Not available

Q

Simplicity 2727002

Fitting, Grease

$

$

Not available

R

Simplicity 8271506

Wheel, Complete

$

$

Not available

S

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

T

Simplicity 2722006

Pin, Cotter, 1/8" dia. x 1"

$

$

Not available

U

Simplicity 8272502

Tool Bar Assembly

$

$

Not available

V

Simplicity 8273503

Frame Assembly, Tool, R.H.

$

$

Not available

W

Simplicity 8273504

Frame Assembly, Tool, L.H.

$

$

Not available

X

Simplicity 8271018

Standard, Tool, Short

$

$

Not available

Y

Simplicity 8271503

Tool Holder Assembly

$

$

Not available

Z

Simplicity 2703002

Bolt, Carriage, 3/8-16 x 1-1/4"

$

$

Not available

AA

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AB

Simplicity 8271014

Steel, Cultivator

$

$

Not available

AC

Simplicity 704001

Bolt, Plow

$4.49

$

In Stock, Qty 17

0

AD

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AE

Simplicity 8272002

Bar, Parallel, R.H.

$

$

Not available

AF

Simplicity 8272003

Bar, Parallel, L.H.

$

$

Not available

AG

Simplicity 2705016

Capscrew, Hex, 3/8"-16 x 1-1/4"

$

$

Not available

AH

Simplicity 117007

Bar, Parallel, R.H.

$

$

Not available

AJ

Simplicity 117008

Bar, Parallel, L.H.

$

$

Not available

AK

Simplicity 8272008

Screw, Upper

$

$

Not available

AL

Simplicity 8271009

Screw, Lower

$

$

Not available

AM

Simplicity 8271017

Coupling, Screw

$

$

Not available

AN

Simplicity 724003

Rivet, Round Head

$

$

Not available

AP

Simplicity 8271021

Nut, Adj., Upper

$

$

Not available

AQ

Simplicity 8271022

Nut, Adj., Lower

$

$

Not available

AR

Simplicity 8201073

Nut, Special

$

$

Not available

AS

Simplicity 8271240

Tire Only, 10 x 1.75

$

$

Not available

AT

Simplicity 2717003

Nut

$

$

Not available
