990206 - Simplicity 8 Disc Harrow 8-12" DISC HARROW Parts Diagram

8 Disc Harrow

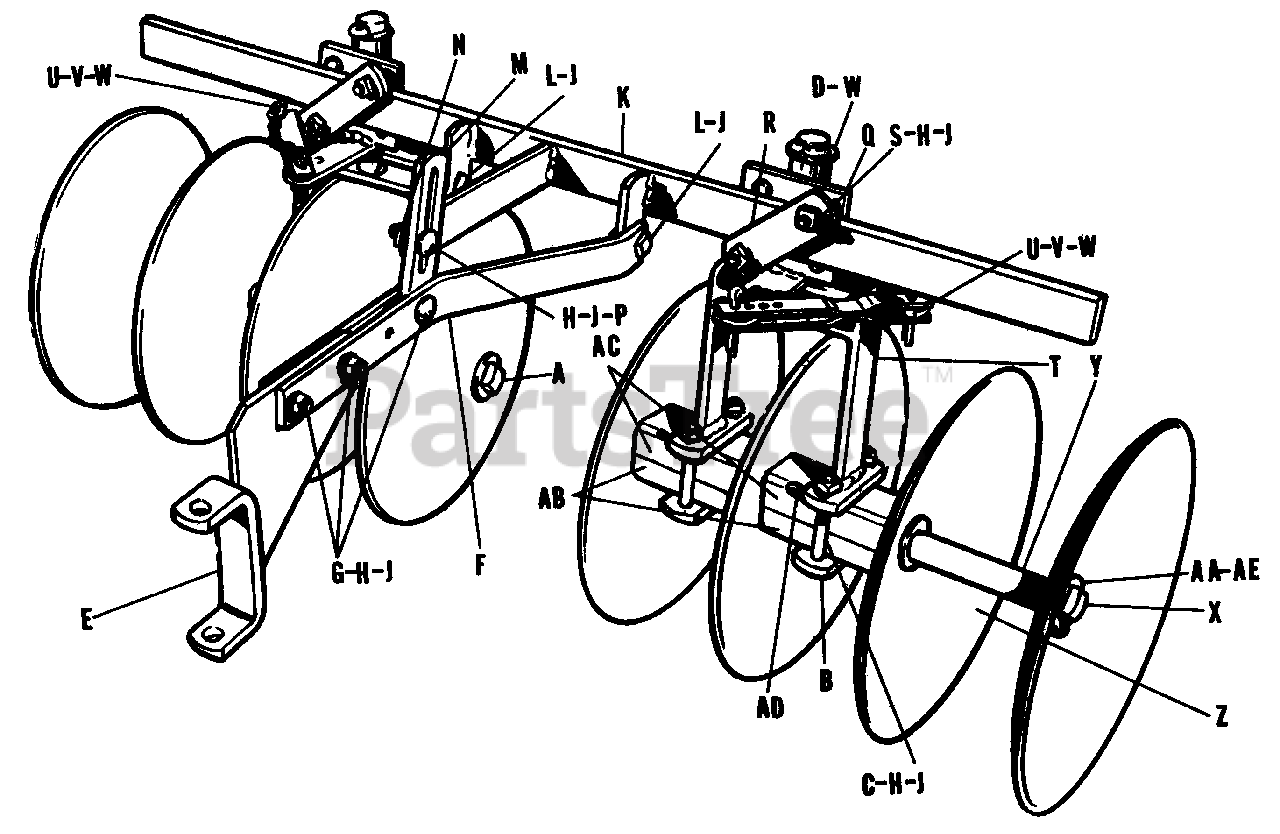

8-12" DISC HARROW Parts Diagram

  • Title

A

Simplicity 2717004

Nut, Full Hex., 5/8-11 NC

$

$

Not available

B

Simplicity 8281013

Clip, Bearing

$

$

Not available

C

Simplicity 702007

Bolt, Carriage, 3/8-16 NC x 3 1/4" lg.

$28.99

$

Usually ships in 2-12 days

0

D

Simplicity 2860208SM

Washer, Post

$4.99

$

Usually ships in 2-12 days

0

E

Simplicity 117011

Drawbar End

$

$

Not available

F

Simplicity 116002

Bar, Draw

$

$

Not available

G

Simplicity 2702004

Bolt, Carriage, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

H

Simplicity 72002

Washer, Lock 3/8"
(Superseded to 7072002YP)

$165.99

$

Usually ships in 2-12 days

0

J

Simplicity 2717003

Nut, Full Hex., 3/8"-16 NC

$

$

Not available

K

Simplicity 8283503

Bar Assembly, Cross

$

$

Not available

L

Simplicity 2705005

Screw, Cap, Hex ., 3./8"-16 NC x 1" lg.

$

$

Not available

M

Simplicity 8281024

Link, Tilt Adjusting

$

$

Not available

N

Simplicity 2153073

Spacer

$

$

Not available

P

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1" lg.

$

$

Not available

Q

Simplicity 8282501

Clamp Assembly

$

$

Not available

R

Simplicity 8281008

Clamp, Clip

$

$

Not available

S

Simplicity 702006

Bolt, Carriage, 3/8"-16 NC x l 3/4" lg.

$

$

Not available

T

Simplicity 8283502

Arch Assembly

$

$

Not available

U

Simplicity 8281501

Strap Assembly, Adjusting

$

$

Not available

V

Simplicity 116004

Chain

$

$

Not available

W

Simplicity 722013

Pin, Cotter

$

$

Not available

X

Simplicity 8281018

Axle

$

$

Not available

Y

Simplicity 8281016

Spacer, Disc.

$

$

Not available

Z

Simplicity 8281019

Blade, Disc. 12"

$

$

Not available

AA

Simplicity 2116001

Washer, Special

$

$

Not available

AB

Simplicity 8281021

Block, Lower Bearing

$

$

Not available

AC

Simplicity 8281015

Block, Upper Bearing

$

$

Not available

AD

Simplicity 722012

Pin, Cotter, 3/16" x 3/4" lg.

$

$

Not available

AE

Simplicity 2722005

Washer, Lock

$

$

Not available
