990204 - Simplicity 10" Heavy Duty Plow 10" PLOW Parts Diagram

10" Heavy Duty Plow

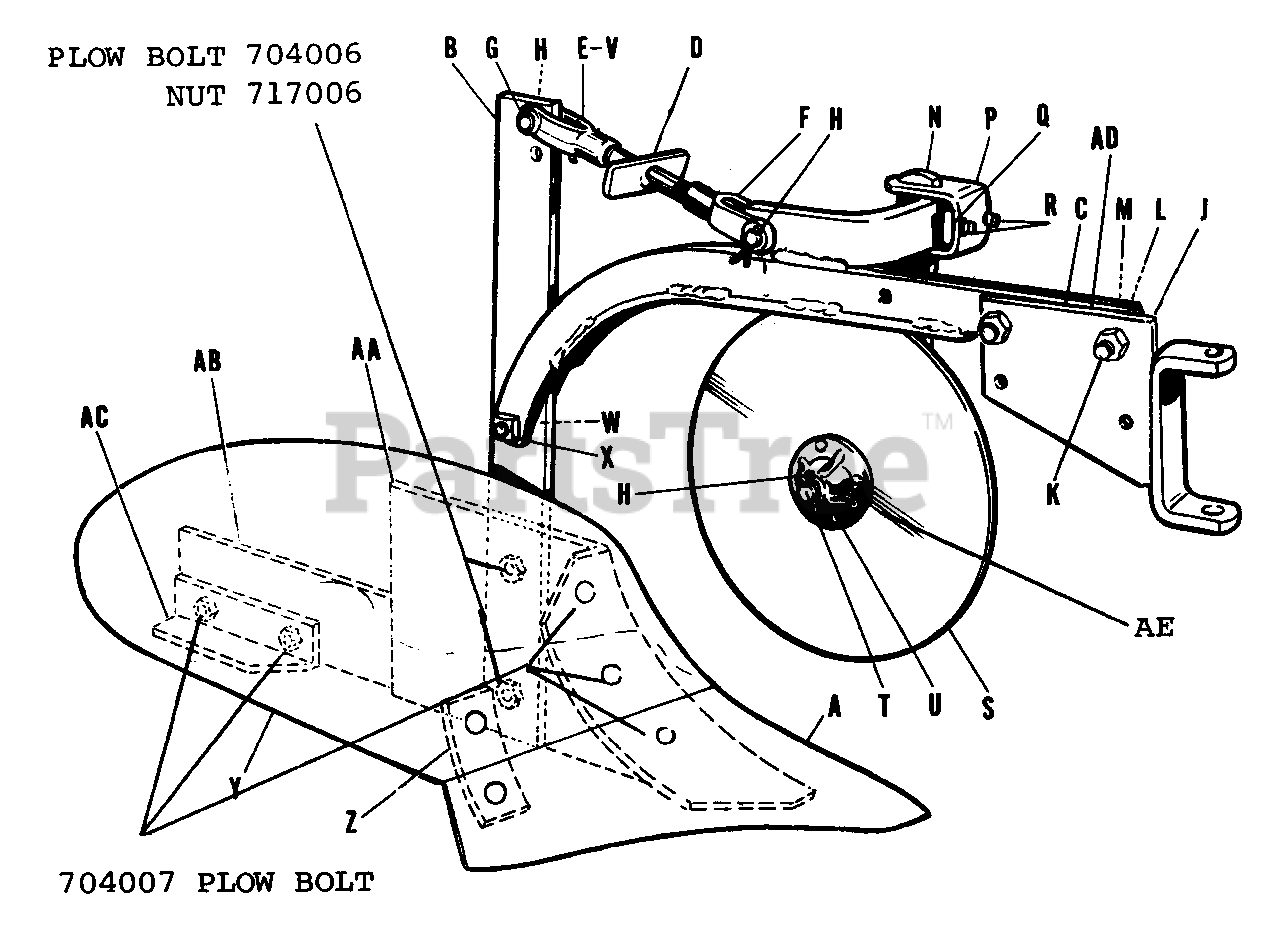

10" PLOW Parts Diagram

  • Title

A

Simplicity 112065

Share

$

$

Not available

B

Simplicity 112044

Standard

$

$

Not available

C

Simplicity 112077

Beam Assembly, Plow

$

$

Not available

D

Simplicity 112047

Yoke Rod Assembly

$

$

Not available

E

Simplicity 112050

Yoke, L.H.

$

$

Not available

F

Simplicity 112051

Yoke, R.H.

$

$

Not available

G

Simplicity 2112052

Pin, Yoke

$

$

Not available

H

Simplicity 2722006

Pin, Cotter, w/extended prong, 1/8" dia. x 1" lg.

$

$

Not available

J

Simplicity 112053

End Assembly, Plow Beam

$

$

Not available

K

Simplicity 2715036

Capscrew, Hex Hd., 3/8"-16 x 2-1/4" lg.

$

$

Not available

L

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

M

Simplicity 2717003

Nut, Full Hex., 3/8"-16 NC

$

$

Not available

N

Simplicity 112057

Standard, Coulter

$

$

Not available

P

Simplicity 8271023

Clamp

$

$

Not available

Q

Simplicity 8201073

Nut, Special, 5/16" x 1" x 2 1/4" lg.

$

$

Not available

R

Simplicity 2713004

Set Screw, Cup Point, Sq. Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

S

Simplicity 112040

Coulter Assembly, w/bushing

$

$

Not available

T

Simplicity 112058

Spindle, Coulter

$

$

Not available

U

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

V

Simplicity 2717018

Nut, Hex, Jam, 5/8"-11 NC

$

$

Not available

W

Simplicity 2705046

Screw, Cap, Hex., 1/2"-13 NC x 1 3/4" lg.

$

$

Not available

X

Simplicity 2717006

Nut, Hex., Full, 1/2"-13 NC

$

$

Not available

Y

Simplicity 112068

Moldboard

$

$

Not available

Z

Simplicity 112069

Brace, Moldboard

$

$

Not available

AA

Simplicity 112066

Saddle

$

$

Not available

AB

Simplicity 112067

Landside

$

$

Not available

AC

Simplicity 112070

Angle, Slip Heel

$

$

Not available

AD

Simplicity 112076

Spacer, Plow Beam

$

$

Not available

AE

Simplicity 8111050

Bushing, Coulter

$

$

Not available
