990198 - Simplicity Gang companion Mower Gang Mower Group (3594I01) Parts Diagram

Gang companion Mower

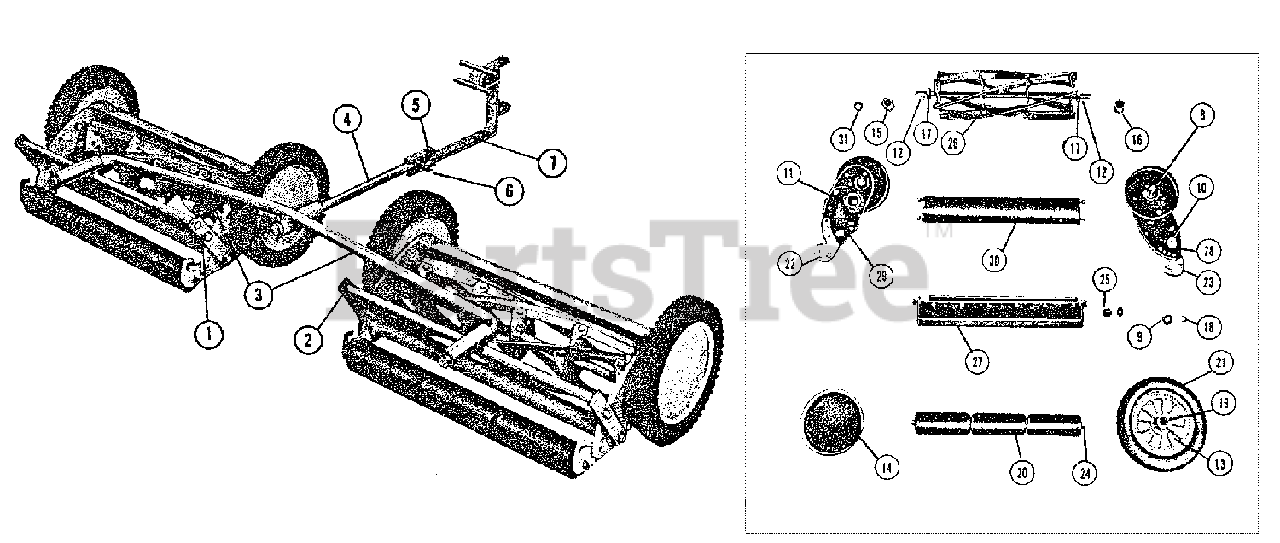

Gang Mower Group (3594I01) Parts Diagram

  • Title

1

Simplicity 100014

*SINGLE DRAW BAR ASSEMBLY

$

$

Not available

2

Simplicity 100015

*SINGLE DRAW BAR ASSEMBLY

$

$

Not available

3

Simplicity 100017

DOUBLE DRAW BAR ASSEMBLY

$

$

Not available

4

Simplicity 100022

TONGUE ASSEMBLY

$

$

Not available

5

Simplicity 100018

TONGUE PIN

$

$

Not available

6

Simplicity 161045

SPRING CLIP

$

$

Not available

7

Simplicity 100033

FRAME EXTENSION ASSEMBLY
(Superseded to 100033R)

$20.99

$

Usually ships in 2-12 days

0

8

Simplicity 844

WHEEL AXLE

$

$

Not available

9

Simplicity 4107

WHEEL RETAINING WASHER

$29.99

$

Usually ships in 2-12 days

0

10

Simplicity 4114

ADJUSTING DAM
(Superseded to 4194)

$29.99

$

Usually ships in 2-12 days

0

12

Simplicity 4185

DRIVING PAWL

$

$

Not available

13

Simplicity 201

INTERNAL GEAR WHEEL

$

$

Not available

14

Simplicity 202

HUB CAM

$

$

Not available

15

Simplicity 20815

PINION GEAR (L.H.)
(Superseded to 5020815)

$111.99

$

Usually ships in 2-12 days

0

16

Simplicity 20816

PINION GEAR (R.H.)
(Superseded to 5020816)

$78.99

$

Usually ships in 2-12 days

0

17

Simplicity 20257

REEL BEARING, "Nice" #1623DS

$13.99

$

Usually ships in 2-12 days

0

18

Simplicity 20320

RING, Retainer

$

$

Not available

20

Simplicity 220

ROLLER

$

$

Not available

21

Simplicity 269

TIRE

$

$

Not available

22

Simplicity 281

ROLLER, Retainer Bracket (L.H.)

$

$

Not available

23

Simplicity 282

ROLLER, Retainer Bracket (R.H.)

$

$

Not available

24

Simplicity 283

ROLLER SHAFT

$

$

Not available

25

Simplicity 443

HITCH BUSHING

$

$

Not available

26

Simplicity 13098

REEL ASSEMBLY, 20"

$

$

Not available

27

Simplicity 10351

CUTTER BAR ASSEMBLY, 20"

$

$

Not available

28

Simplicity 10544

SIDE FRAME ASSEMBLY (R.H.)

$

$

Not available

29

Simplicity 10545

SIDE FRAME ASSEMBLY (L.H.)

$

$

Not available

30

Simplicity 472

BRUSH BAR ASSEMBLY, 20"

$

$

Not available

31

Simplicity 4179

PINION GEAR INSERT L.H.

$32.99

$

Usually ships in 2-12 days

0

31

Simplicity 4180

PINION GEAR INSERT R.H.

$17.99

$

Usually ships in 2-12 days

0
