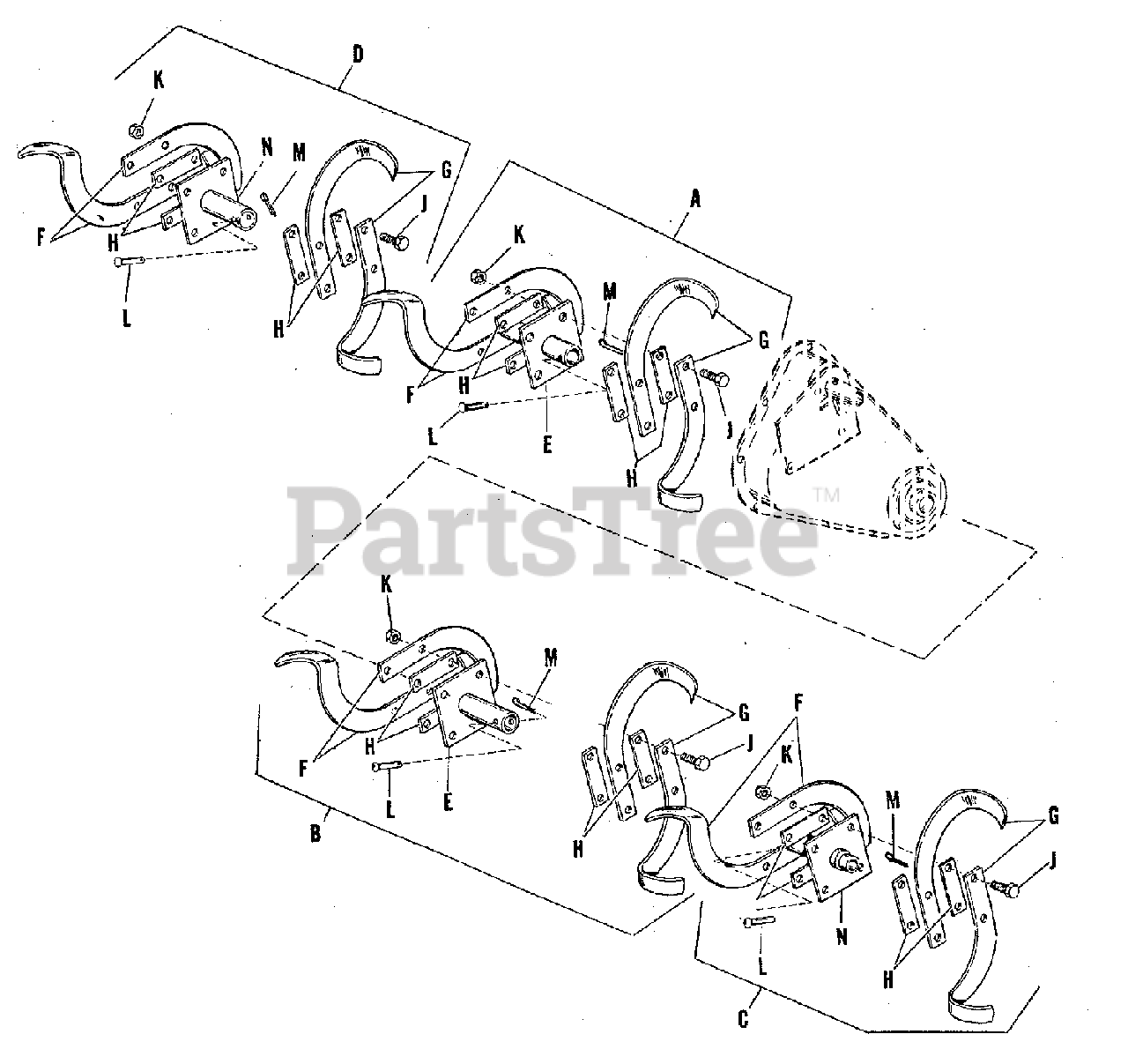

990191 - Simplicity 32" Heavy Duty Tiller Attachment Tine Group (3597I01) Parts Diagram

32" Heavy Duty Tiller Attachment

Tine Group (3597I01) Parts Diagram

  • Title

A

Simplicity 105159

BLADE ASSEMBLY, R.H. Inner Tine

$

$

Not available

B

Simplicity 105163

BLADE ASSEMBLY, L.H. Inner Tine

$

$

Not available

C

Simplicity 105164

BLADE ASSEMBLY, R.H. Outer Tine

$

$

Not available

D

Simplicity 105165

BLADE ASSEMBLY, L.H. Outer Tine

$

$

Not available

E

Simplicity 105248

PLATE ASSEMBLY, Tine, Inner

$

$

Not available

F

Simplicity 1729272SM

BLADE, Tine, R.H.

$28.99

$

Usually ships in 2-12 days

0

G

Simplicity 1729271SM

BLADE, Tine, L.H.

$

$

Not available

H

Simplicity 105162

SPACER

$

$

Not available

J

Simplicity 706014

CAPSCREW, Hex, 7/16"-20 NC x 1-3/4" Lg.

$3181.99

$

Usually ships in 2-12 days

0

K

Simplicity 2717512

NUT, Lock, Hex, Full, 7/16"-20 NC

$

$

Not available

L

Simplicity 2105249SM

PIN, Tine Shaft

$16.99

$

Usually ships in 2-12 days

0

M

Simplicity 2722009

PIN, Cotter, 1/8" Diameter

$

$

Not available

N

Simplicity 105245

PLATE ASSEMBLY, Tine, Outer

$

$

Not available
