990191 - Simplicity 32" Heavy Duty Tiller Attachment Housing Group (3597I02) Parts Diagram

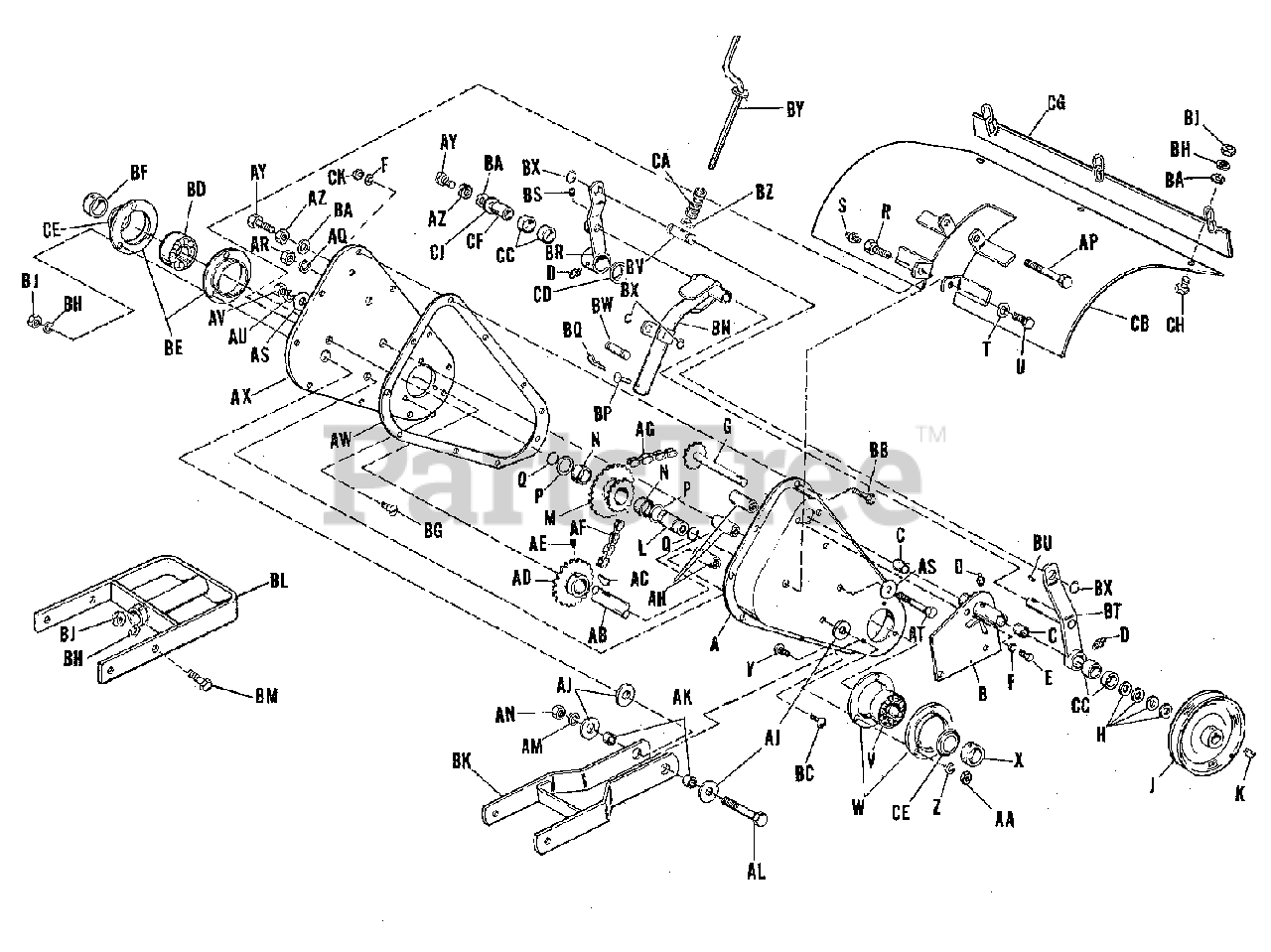

32" Heavy Duty Tiller Attachment

Housing Group (3597I02) Parts Diagram

  • Title

A

Simplicity 105123

GUARD ASSEMBLY, Chain

$

$

Not available

B

Simplicity 105127

SUPPORT ASSEMBLY, Bearing Housing

$

$

Not available

C

Simplicity 2108054

BEARING, Needle

$

$

Not available

D

Simplicity 2727001

FITTING, Grease

$

$

Not available

E

Simplicity 2705017

CAPSCREW, Hex, 5/16-18NC x 3/4"

$

$

Not available

F

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

G

Simplicity 105189

DRIVE SHAFT ASSEMBLY

$

$

Not available

H

Simplicity 2153079

WASHER

$

$

Not available

J

Simplicity 105191

PULLEY, Drive

$

$

Not available

K

Simplicity 2725003

KEY, Woodruff

$

$

Not available

L

Simplicity 2105192SM

SPACER, Intermediate

$110.99

$

Usually ships in 2-12 days

0

M

Simplicity 105193

SPROCKET ASSEMBLY

$

$

Not available

N

Simplicity 2105195SM

BEARING, Roller

$34.99

$

Usually ships in 2-12 days

0

P

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2105194

RING, Retaining

$

$

Not available

R

Simplicity 2105132SM

BOLT

$18.99

$

Usually ships in 2-12 days

0

S

Simplicity 2727002

FITTING, Grease

$

$

Not available

T

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

U

Simplicity 706012

CAPSCREW, Hex, 1/2"-20 x 1-3/4"

$189.99

$

Usually ships in 2-12 days

0

V

Simplicity 1729268SM

BEARING

$55.99

$

Usually ships in 2-12 days

0

W

Simplicity 8151072

FLANGE, Bearing

$

$

Not available

X

Simplicity 1729269

COLLAR, Bearing

$

$

Not available

Y

Simplicity 2702003

BOLT, Carriage, 3/8"-16 x 3/4" Lg.

$

$

Not available

Z

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AA

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

AB

Simplicity 105084

SHAFT, Tine

$

$

Not available

AC

Simplicity 2725503

KEY, Hi-Pro, 1/4" x 7/8"

$

$

Not available

AD

Simplicity 8151022

SPROCKET

$

$

Not available

AE

Simplicity 2713503

SCREW, Set, Cup Point, Socket Head, 5/16"-18 x 5/16"

$

$

Not available

AF

Simplicity 2178174SM

CHAIN, Rotor

$86.99

$

Usually ships in 2-12 days

0

AG

Simplicity 105055

CHAIN, Drive

$

$

Not available

AH

Simplicity 105085

SPACER, Guard

$

$

Not available

AJ

Simplicity 2105010

WASHER

$

$

Not available

AK

Simplicity 105133

SPACER

$

$

Not available

AL

Simplicity 705033

CAPSCREW, Hex, 7/16"-14 4-1/2"
(Superseded to 709771)

$7.49

$

Usually ships in 2-12 days

0

AM

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

AN

Simplicity 2717022

NUT, Hex, Full, 7/16"-14

$

$

Not available

AP

Simplicity 2715054

CAPSCREW, 7/16"-14 x 4" Lg.

$

$

Not available

AQ

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

AR

Simplicity 2717022

NUT, Hex, Full, 7/16"-14

$

$

Not available

AS

Simplicity 2105010

WASHER

$

$

Not available

AT

Simplicity 705034

CAPSCREW, Hex, 7/16"-14 x 3-3/4" Lg.

$6.49

$

Usually ships in 2-12 days

0

AU

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

AV

Simplicity 2717022

NUT, Hex, Full, 7/16"-14

$

$

Not available

AW

Snapper 2105016SM

GASKET

$

$

Not available

AX

Simplicity 105229

PLATE ASSEMBLY

$

$

Not available

AY

Simplicity 715052

CAPSCREW, Hex, 3/8"-24 x 2-1/2" Lg.

$161.99

$

Usually ships in 2-12 days

0

AZ

Simplicity 2717014

NUT, Hex, Jam, 3/8"-24

$

$

Not available

BA

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

BB

Simplicity 2705012

CAPSCREW, Hex, 5/16"-18 x 5/8" Lg.

$

$

Not available

BC

Simplicity 2703005

BOLT, Carriage, 5/16"-18 x 5/8" Lg.

$

$

Not available

BD

Simplicity 1729268SM

BEARING

$55.99

$

Usually ships in 2-12 days

0

BE

Simplicity 8151072

FLANGE, Bearing

$

$

Not available

BF

Simplicity 1729269

COLLAR, Bearing

$

$

Not available

BG

Simplicity 2702003

BOLT, Carriage, 3/8"-16 x 3/4" Lg.

$

$

Not available

BH

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

BJ

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

BK

Simplicity 105137

FRAME ASSEMBLY

$

$

Not available

BL

Simplicity 105215

TILLER SOCKET ASSEMBLY

$

$

Not available

BM

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 x 1" Lg.

$

$

Not available

BN

Simplicity 105141

LIFT BAR ASSEMBLY

$

$

Not available

BP

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

BQ

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

BR

Simplicity 105251

LEVER ASSEMBLY, R.H. Side, Belt Tension

$

$

Not available

BS

Simplicity 2713503

SCREW, Set, Cup Point, Socket Head, 5/16"-18 x 5/16"

$

$

Not available

BT

Simplicity 105253

LEVER ASSEMBLY, L.H. Side, Belt Tension

$

$

Not available

BU

Simplicity 2725002

KEY, Woodruff

$

$

Not available

BV

Simplicity 105153

PIVOT, Upper

$

$

Not available

BW

Simplicity 105154

PIVOT, Lower

$

$

Not available

BX

Simplicity 2154264SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

BY

Simplicity 105207

SCREW ASSEMBLY, Adjusting

$

$

Not available

BZ

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

CA

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

CB

Simplicity 105155

DEFLECTOR ASSEMBLY

$

$

Not available

CC

Simplicity 2105058SM

BUSHING

$3.99

$

Usually ships in 2-12 days

0

CD

Simplicity 105238

WASHER, Thrust

$

$

Not available

CE

Simplicity 105237

SHIELD

$

$

Not available

CF

Simplicity 105236

ADAPTER

$

$

Not available

CG

Simplicity 105210

FLAP ASSEMBLY

$

$

Not available

CH

Simplicity 2705031

CAPSCREW, Hex, 3/8"-16 x 7/8" Lg.

$

$

Not available

CJ

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

CK

Simplicity 2717511

NUT, Hex, Lock, 5/16"-18 NC

$

$

Not available
