990190 - Simplicity 42" Mower Deck for Model 725 Mowers MOWER UNDERSIDE Parts Diagram

42" Mower Deck for Model 725 Mowers

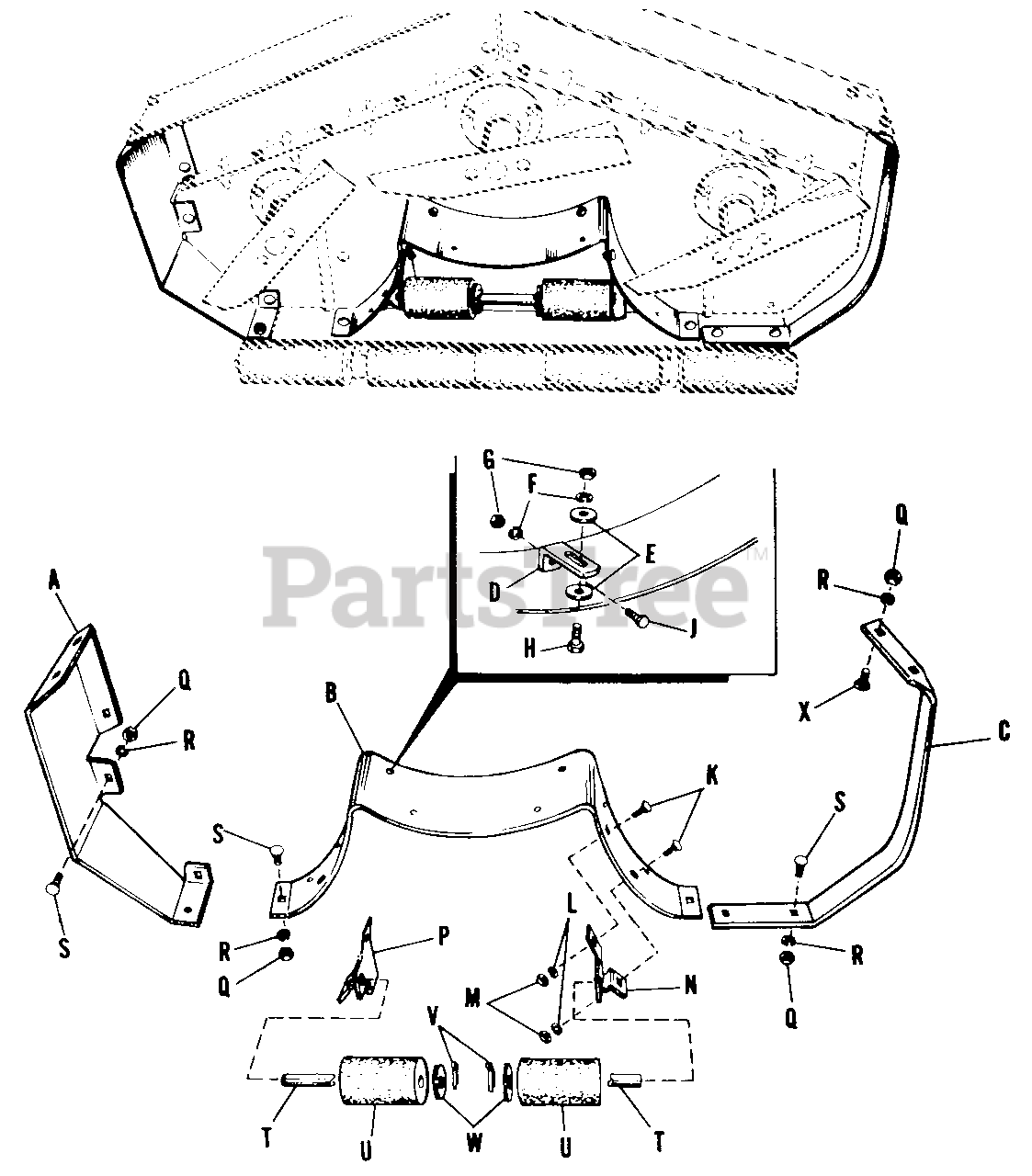

MOWER UNDERSIDE Parts Diagram

  • Title

A

Simplicity 108213

Plate, End, Housing

$

$

Not available

B

Simplicity 2108222

Baffle

$

$

Not available

C

Simplicity 108214

Guard Assembly, Housing

$

$

Not available

D

Simplicity 2108186SM

Clip, Baffle

$12.99

$

In Stock, only 1 left!

0

E

Simplicity 2719006

Washer, Plain, 1/4"

$

$

Not available

F

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

G

Simplicity 2717005

Nut, Hex, Full, 1/4"-20 NC

$

$

Not available

H

Simplicity 2715018

Capscrew, Hex, 1/4"-20 NC x 5/8"

$

$

Not available

J

Simplicity 2714012

Screw, Recessed Hex, Self Tapping 1/4"-20 NC x 7/8" lg.

$

$

Not available

K

Simplicity 2702015

Bolt, Carriage, 5/16"-18 NC x 3/4" lg.

$

$

Not available

L

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

M

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

N

Simplicity 2108224ASM

Bracket, Roller, Lower, L.H.

$59.99

$

In Stock, only 2 left!

0

P

Simplicity 2108426SM

Bracket, Roller, Lower, R.H.
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

R

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

S

Simplicity 2702003

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

T

Simplicity 2108426SM

Shaft, Roller
(Superseded to 2108426ASM)

$70.99

$

Usually ships in 2-12 days

0

U

Simplicity 2108178

Roller

$

$

Not available

V

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg.

$

$

Not available

W

Simplicity 2116001

Washer

$

$

Not available

X

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1" lg.

$

$

Not available
