990190 - Simplicity 42" Mower Deck for Model 725 Mowers ARBOR ASSEMBLIES Parts Diagram

42" Mower Deck for Model 725 Mowers

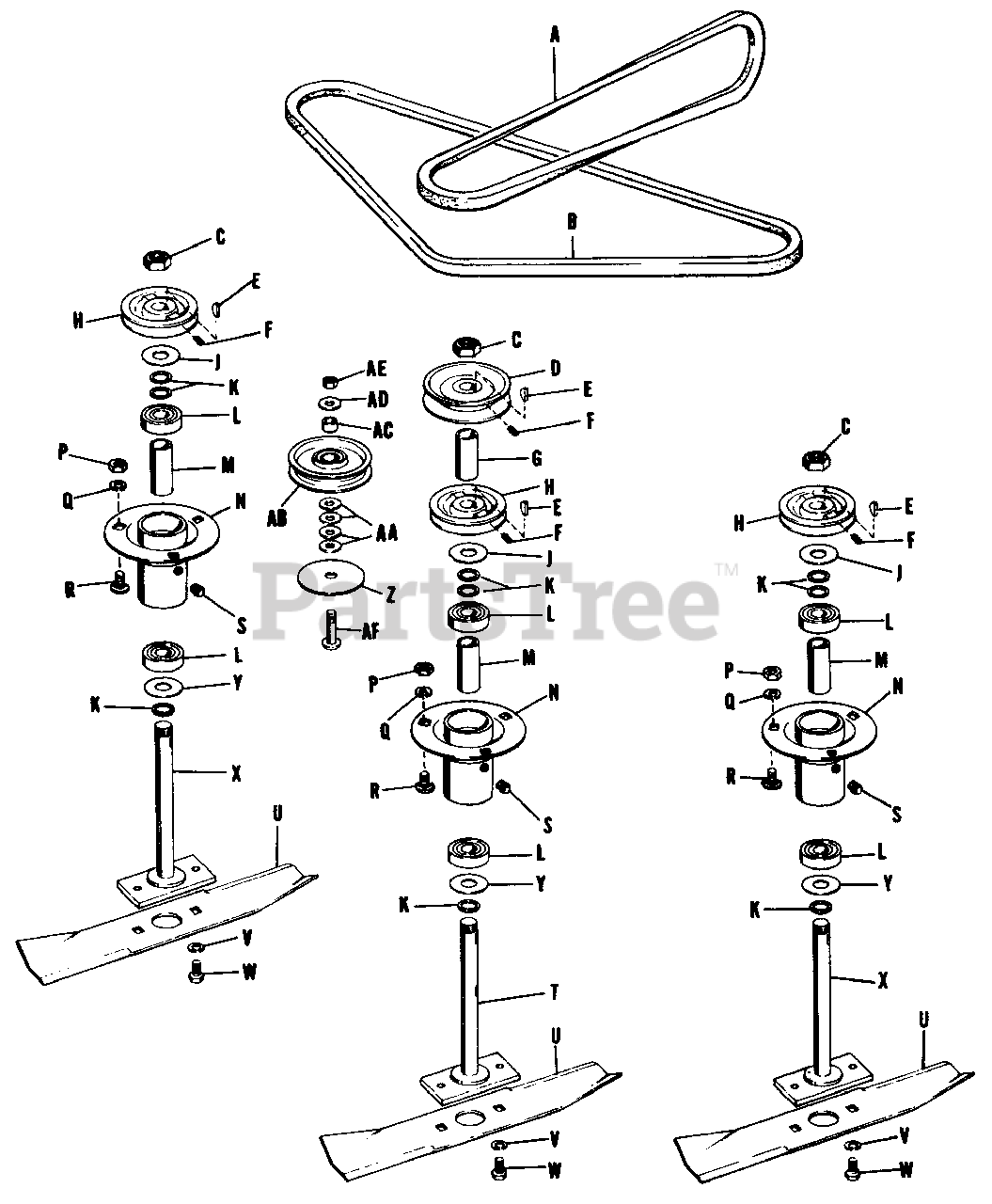

ARBOR ASSEMBLIES Parts Diagram

  • Title

A

Simplicity 2108099

Belt, "V " (Cross Drive)

$

$

Not available

B

Simplicity 2108209

Belt, "V" (Mower Spindle Drive)

$

$

Not available

C

Simplicity 2717517

Nut, Jam, Hex, Lock, 3/4"-16 NF

$

$

Not available

D

Simplicity 2108207SM

Pulley, Cross Drive

$120.99

$

In Stock, only 1 left!

0

E

Simplicity 2725006

Key Woodruff, #61

$

$

Not available

F

Simplicity 2713504

Screw, Set, Cup Point Socket Hd., 5/16"-18 NC x 3/8" lg.

$

$

Not available

G

Simplicity 2108245SM

Spacer

$14.99

$

Usually ships in 2-12 days

0

H

Simplicity 2108142

Pulley

$

$

Not available

J

Simplicity 2108139

Flinger

$

$

Not available

K

Simplicity 2108181

Washer

$

$

Not available

L

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

M

Snapper 2108201SM

Spacer

$19.99

$

In Stock, only 1 left!

0

N

Simplicity 2108203

Tube Assembly, Arbor

$

$

Not available

P

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

Q

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

R

Simplicity 2703004

Bolt, Carriage, 3/8"-16 NC x 3/4"

$

$

Not available

S

Simplicity 726001

Plug, Pipe, 1/8" Sq. Hd.

$

$

Not available

T

Simplicity 2108252SM

Arbor Assembly, Drive

$155.99

$

In Stock, only 2 left!

0

U

Simplicity 2108298

Blade, Knife

$

$

Not available

V

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

W

Simplicity 2705011

Capscrew, Hex Hd., 3/8"-16 NC x 5/8" lg.

$

$

Not available

X

Simplicity 2108250SM

Arbor Assembly

$115.99

$

Usually ships in 2-12 days

0

Y

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0

Z

Simplicity 108150

Washer

$

$

Not available

AA

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AB

Simplicity 2108149

Pulley, Idler

$

$

Not available

AC

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

AD

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AE

Simplicity 2717510

Nut, Hex, Full, Lock, 3/8"-16 NC

$

$

Not available

AF

Simplicity 703006

Bolt, Carriage, 3/8"-16 NC x 1-1/2" lg.

$651.99

$

Usually ships in 2-12 days

0
