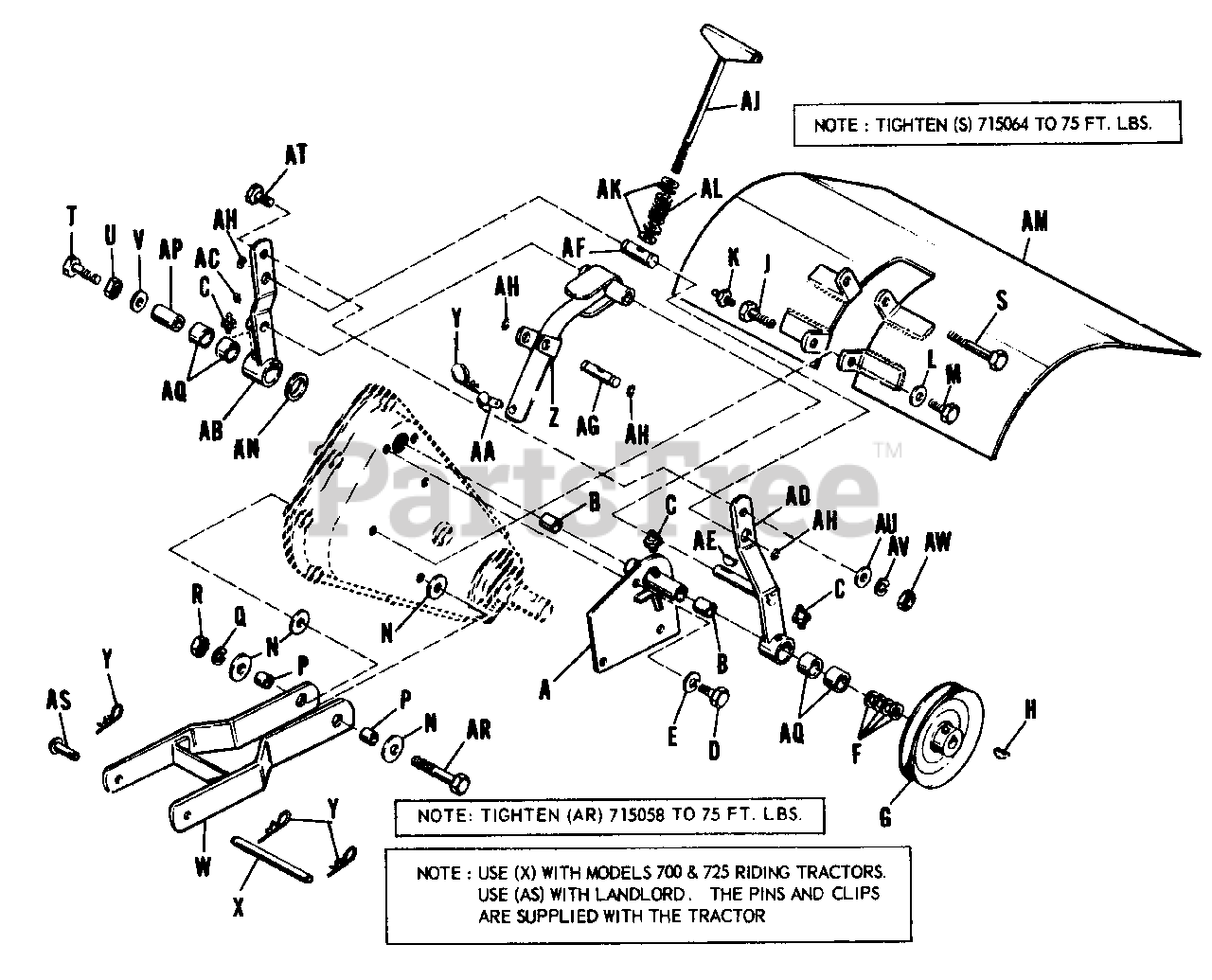

990174 - Simplicity 32" Heavy Duty Tiller Attachment HITCH GROUP Parts Diagram

32" Heavy Duty Tiller Attachment

HITCH GROUP Parts Diagram

  • Title

A

Simplicity 105127

Support Assembly, Brg. Hsg.

$

$

Not available

B

Simplicity 2108054

Bearing, Needle

$

$

Not available

C

Simplicity 2727001

Fitting, Grease

$

$

Not available

D

Simplicity 2705017

Capscrew, Hex, 5/16"-18 NC x 3/4" lg.

$

$

Not available

E

Simplicity 2720001

Washer, Lock 5/16"

$

$

Not available

F

Simplicity 2153079

Washer

$

$

Not available

G

Simplicity 105191

Pulley, Drive

$

$

Not available

H

Simplicity 2725003

Key, Woodruff

$

$

Not available

J

Simplicity 2105132SM

Bolt

$18.99

$

Usually ships in 2-12 days

0

K

Simplicity 2727002

Fitting, Grease

$

$

Not available

L

Simplicity 2719003

Washer, Plain, 7/16"

$

$

Not available

M

Simplicity 706012

Capscrew, Hex, 1/2"-20 NF x 1-3/4" lg.

$189.99

$

Usually ships in 2-12 days

0

N

Simplicity 105250

Washer

$

$

Not available

P

Simplicity 105133

Spacer

$

$

Not available

Q

Simplicity 2720006

Washer, Lock 7/16"

$

$

Not available

R

Simplicity 2717022

Nut, Hex, Full 7/16"-14 NC

$

$

Not available

S

Simplicity 715064

Capscrew 7/16"-14 NC x 4" lg.

$64.99

$

Usually ships in 2-12 days

0

T

Simplicity 715052

Capscrew 3/8"-24 NF x 2-1/2" lg.

$161.99

$

Usually ships in 2-12 days

0

U

Simplicity 2717014

Nut, Hex, Jam-3/8"-24 NF

$

$

Not available

V

Simplicity 1924356SM

Washer, Plain, 3/8"
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

W

Simplicity 105137

Frame Assembly

$

$

Not available

X

Simplicity 105140

Rod, Pivot

$

$

Not available

Y

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

Z

Simplicity 105141

Bar, Assembly, Lift

$

$

Not available

AA

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

AB

Simplicity 105251

Lever Assembly, R.H., Belt Tension

$

$

Not available

AC

Simplicity 2713503

Screw, Set, Cup Pr., Socket Hd. 5/16"-18 NC x 2/16" lg.

$

$

Not available

AD

Simplicity 105253

Lever Assembly, L.H. Belt Tension

$

$

Not available

AE

Simplicity 2725002

Key Woodruff #6

$

$

Not available

AF

Simplicity 105153

Pivot, Upper

$

$

Not available

AG

Simplicity 105154

Pivot, Lower

$

$

Not available

AH

Simplicity 2154264SM

Ring, Retaining

$5.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2108415

Screw Assembly, Adjusting

$

$

Not available

AK

Simplicity 2719002

Washer Plain 5/16"

$

$

Not available

AL

Simplicity 1729278SM

Spring

$2.49

$

Usually ships in 2-12 days

0

AM

Simplicity 105155

Deflector Assembly

$

$

Not available

AN

Simplicity 105238

Washer Thrust

$

$

Not available

AP

Simplicity 105236

Adapter

$

$

Not available

AQ

Simplicity 2105058SM

Bushing

$3.99

$

Usually ships in 2-12 days

0

AR

Simplicity 715058

Capscrew Hex, 7/16"-14 NC x 4-1/2" lg.

$

$

Not available

AS

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

AT

Simplicity 2705005

Capscrew, Hex, 3/8"-16 x 1" lg.

$

$

Not available

AU

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

AV

Simplicity 2720002

Washer, Lock 3/8"

$

$

Not available

AW

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available
