990123 - Simplicity Gang Mower Gang Mower - Diagram 2 Parts Diagram

Gang Mower

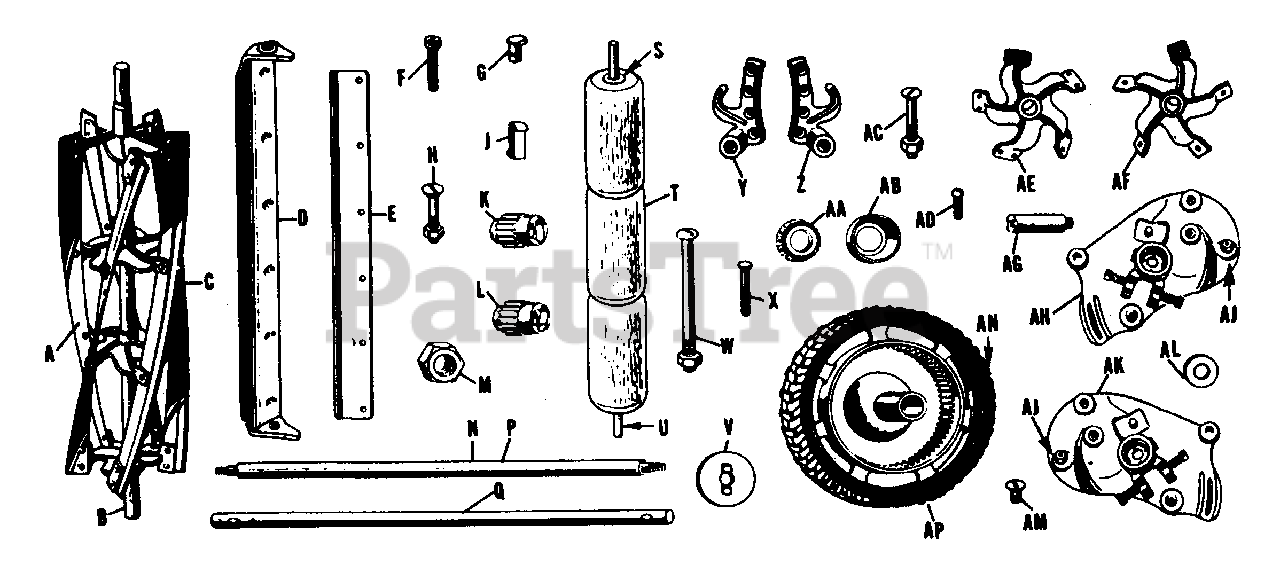

Gang Mower - Diagram 2 Parts Diagram

  • Title

A

Simplicity NLA - 2615-21

Cylinder Knife 21"

$

$

Currently unavailable

B

Simplicity 2641-21

Cylinder Shaft, 21", 11/16" dia x 26 1/8" lg.

$

$

Not available

C

Simplicity 2611-21

CYLINDER ASSEMBLY, Less Bearings or Spacer

$

$

Not available

D

Simplicity 2416-21

Cast Back, less Stationary blade 21"

$

$

Not available

D

Simplicity 2416-21SA

Cast Back, complete with blade assembled

$

$

Not available

E

Simplicity 2413-21

Steel Stationary Blade, 21"

$

$

Not available

F

Simplicity 1612

SET SCREW, to Regulate Cast Back

$

$

Not available

G

Simplicity 1044

Oil cup, for side plate

$

$

Not available

H

Simplicity 784-A

BOLT AND NUT, For Roller Bracket, 1/4" x 1-1/8"

$

$

Not available

J

Simplicity 1106

Steel Pawl, 3/8" wide (both alike)

$

$

Not available

K

Simplicity E45

left Hand Pinion, 11/16" hole, 11 teeth

$

$

Not available

L

Simplicity E44

Right Hand Pinion, 11/16" hole, 11 teeth

$

$

Not available

M

Simplicity 6811

Nut for end of front frame shaft

$

$

Not available

N

Simplicity 1118-A-21

Front Frame Shaft

$

$

Not available

P

Simplicity 1118-RA-21

Rear Frame Shaft

$

$

Not available

Q

Simplicity 2641-21

Cylinder Shaft, 21", 11/16" dia x 26 1/8" lg.

$

$

Not available

S

Simplicity W-1321

SPACING, Washer for sectional roller

$

$

Not available

T

Simplicity 2419-CA

Sectional Wood Roller 2-7/16" x 6-9/16" (1/2" hole)

$

$

Not available

U

Simplicity 2437-A-21

Roller Shaft 21" (7/16" x 22-13/16")

$

$

Not available

V

Simplicity 1338-T

Wheel Washer, for side plate (2 lugs)

$

$

Not available

W

Simplicity 1334-T

Wheel Bolt and Nut 5/16" x 3 1/4"

$

$

Not available

X

Simplicity 1332-SL

SPRING LOCK PIN, To attatch cylinder end to cylinder shaft

$

$

Not available

Y

Simplicity 2430-A

LEFT HAND ROLLER, Bracket

$

$

Not available

Z

Simplicity 2421-A

RIGHT HAND ROLLER, Bracket

$

$

Not available

AA

Simplicity 40258-A

Precision Taper Cylinder Bearing

$

$

Not available

AB

Simplicity 40259-A

BEARING CUP, For side plate (less bearings)

$

$

Not available

AC

Simplicity 22178-SA

Cast Back Bolt and Nut

$

$

Not available

AD

Simplicity PM-1430-L

RIVETS, For cylinder knives (1 set)

$

$

Not available

AE

Simplicity PM-1316-R

Cylinder End (both alike)

$

$

Not available

AF

Simplicity PM-1575-R

Cylinder Rings (all alike)

$

$

Not available

AG

Simplicity 1148

Steel Wheel Stud 7/8" x 2-25/32"

$

$

Not available

AH

Simplicity 26143

Left Hand Side Plate with stud

$

$

Not available

AJ

Simplicity 4488-SA

BOLT AND NUT, For tow bracket

$

$

Not available

AK

Simplicity 26144

Right Hand Side Plate with stud

$

$

Not available

AL

Simplicity 1340

FLAT WASHING, For roller bracket bolt and side plate towing bolt

$

$

Not available

AM

Simplicity P87

Machine screw for stationary blade, 1/4" x 3/8" flat head

$

$

Not available

AN

Simplicity PM-51-WW-D

RUBBER TIRE, 3" Wide for Wheel 2645-W

$

$

Not available

AP

Simplicity 2645-W-SA

WHEEL, With tire PM-51-WW-D assembled

$

$

Not available

AP

Simplicity 2645-W

Wheel only, less tire

$

$

Not available

AP

Simplicity 1354

LockWasher for front frame shaft

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 1363-A

Hex Nut, 5/16", for 1334-T or 4488SA

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 1904-F

Lock Washer for tow bolt and wheel bolt

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 1945-A

Campbell Hammerlock Cotter Pin for roller bracket

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 2260

Spacer for tow bolt

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 2660

Internal Shakeproof Lock Washer for rear frame shaft

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 40260

Cylinder Bearing Dust Washer (left side)

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 40262

Cylinder Bearing Pressure Spring (left side)

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available

Simplicity 40263

Cylinder Pressure Spring Cover

Note: PARTS ARE NOT ILLUSTRATED

$

$

Not available
