990120 - Simplicity Wonderboy Rear-Engine Riding Mower, 4hp TRANSMISSION ASSEMBLY Parts Diagram

Wonderboy Rear-Engine Riding Mower, 4hp

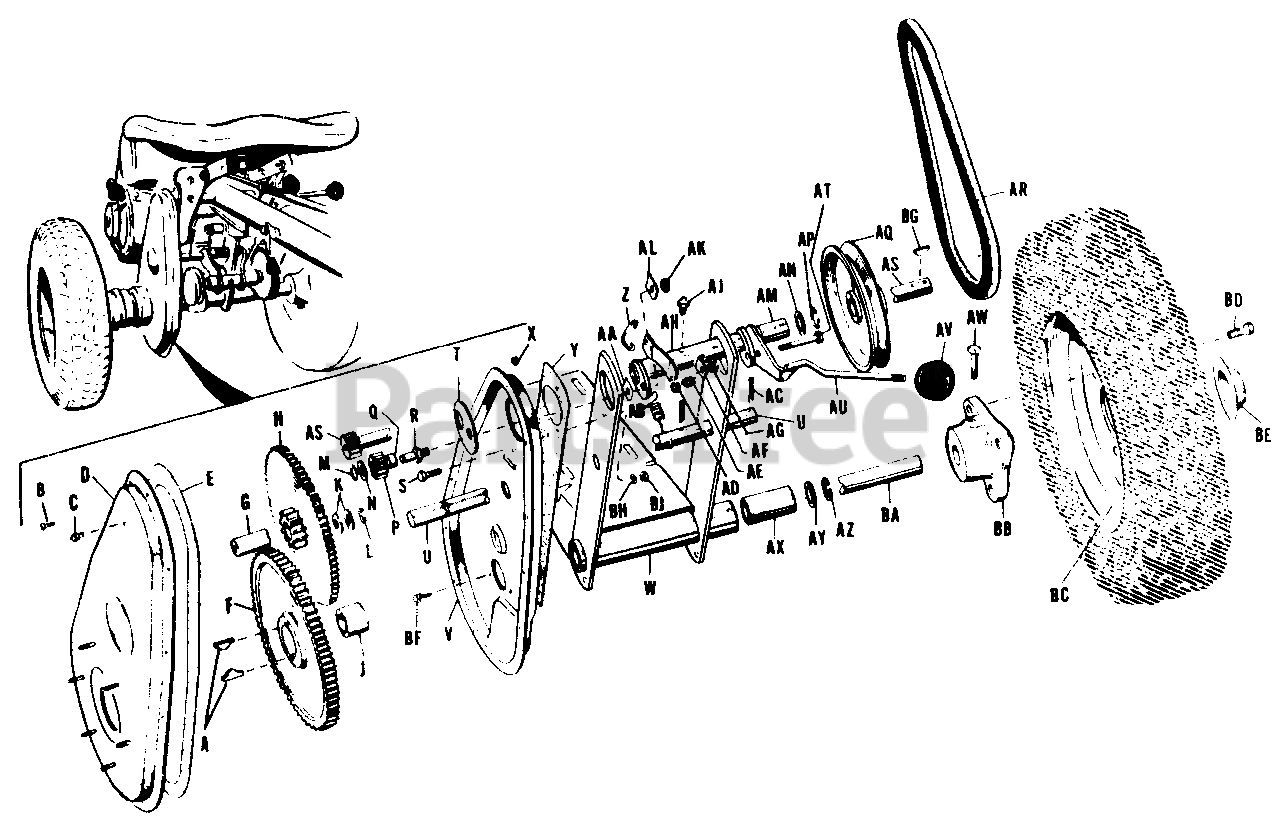

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

A

Simplicity 2725501

Key, Hi-Pro, HP-108

$

$

Not available

B

Simplicity 710004

Screw, Rd. Hd. Mach. 10-32 x 3/8"

$3.99

$

In Stock, only 1 left!

0

C

Simplicity 727003

Grease Fitting No. AD-1051

$

$

Not available

D

Simplicity 121174

Cover Assembly

$

$

Not available

E

Simplicity 153115

Gasket Case

$

$

Not available

F

Simplicity 121165

Gear Assembly, Drive

$

$

Not available

G

Simplicity 2153078

Bearing, Intermediate Pinion

$

$

Not available

H

Simplicity 121119

Gear Assembly, Intermediate (available only as 2 gears assd.)

$

$

Not available

J

Simplicity 2153068SM

Bearing

$31.99

$

Usually ships in 2-12 days

0

K

Simplicity 2153079

Washer

$

$

Not available

L

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

M

Simplicity 153125

Ring, Retaining

$

$

Not available

N

Simplicity 2153072

Washer, Reverse Pinion

$

$

Not available

P

Simplicity 121117

Pinion Assembly, Reverse With Bearing

$

$

Not available

Q

Simplicity 153064

Bearing

$

$

Not available

R

Simplicity 153076

Stud, Reverse Pinion

$

$

Not available

S

Simplicity 2705005

Screw, Hex Cap 3/8-16 x 1"

$

$

Not available

T

Simplicity 153094

Shield

$

$

Not available

U

Simplicity 121043

Shaft, Intermediate

$

$

Not available

V

Simplicity 153105

Case, Gear

$

$

Not available

W

Simplicity 121055

Housing, Assembly, Axle

$

$

Not available

X

Simplicity 2717507

Nut, Hex Lock No. 10-32

$

$

Not available

Y

Simplicity 153114

Gasket, Bearing Housing

$

$

Not available

Z

Simplicity 153011

Spring, Extension

$

$

Not available

AA

Simplicity 121107

Spacer

$

$

Not available

AB

Simplicity 153121

Spring, Reverse Lever

$

$

Not available

AC

Simplicity 2722003

Cotter Pin 3/16 x 1 1/4"

$

$

Not available

AD

Simplicity 2717510

Nut, Lock 3/8-16

$

$

Not available

AE

Simplicity S2-A47

Spring

$

$

Not available

AF

Simplicity 121042

Plate, Friction

$

$

Not available

AG

Simplicity 2717013

Nut, Hex Jam 3/8-16

$

$

Not available

AH

Simplicity 153044

Housing Assembly, Bearing

$

$

Not available

AJ

Simplicity 2727004

Grease Fitting No. 1911

$

$

Not available

AK

Simplicity 153090

Nut, Hex, LH

$

$

Not available

AL

Simplicity 121139

Plate, Lock

$

$

Not available

AM

Simplicity F-A38

Bearing

$

$

Not available

AN

Simplicity 2153079

Washer

$

$

Not available

AP

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

AQ

Simplicity 121124

Pulley, Transmission

$

$

Not available

AR

Simplicity 2121078SM

Eng Drive "V" Belt A33S Super Combine 35" Long

$26.99

$

Usually ships in 2-12 days

0

AS

Simplicity 2121115SM

Pinion and Pulley Shaft Assembly

$90.99

$

Usually ships in 2-12 days

0

AT

Simplicity 2705010

Screw, Hex Cap 3/8-16 x 1 3/4"

$

$

Not available

AU

Simplicity 121039

Lever Assembly, Shift

$

$

Not available

AV

Simplicity D-A50

Knob

$

$

Not available

AW

Simplicity 715002

Screw, Set, Sq Hd. 3/8-16 x 1/4

$48.99

$

Usually ships in 2-12 days

0

AX

Simplicity 153089

Bearing, Axle

$

$

Not available

AY

Simplicity 153088

Washer

$

$

Not available

AZ

Simplicity 121128

Ring, Retaining

$

$

Not available

BA

Simplicity 121079

Axle, Rear

$

$

Not available

BB

Simplicity 121089

Hub, Wheel, L.H.

$

$

Not available

BC

Simplicity 121109

Wheel, Less Tire and Tube à

Note: Specify Color

$

$

Not available

BD

Simplicity 2121138

Bolt, Hub

$

$

Not available

BE

Simplicity 121137

Cap, Hub, Rear

$

$

Not available

BF

Simplicity 708001

Screw, Cap 5/16-18 x 3/8"
(Superseded to 707989)

$9.99

$

Usually ships in 2-12 days

0

BG

Simplicity 2725003

Key, Woodruff, 3/16 x 3/4

$

$

Not available

BH

Simplicity 2720002

Washer, Lock 3/8

$

$

Not available

BJ

Simplicity 2717003

Nut, Hex, Full 3/8-16

$

$

Not available

AA

Simplicity 990104

Gun, Grease Wrench, Set Screw-5,32"

$

$

Not available
