990120 - Simplicity Wonderboy Rear-Engine Riding Mower, 4hp FRONT AXLE AND FRONT SUPPORT Parts Diagram

Wonderboy Rear-Engine Riding Mower, 4hp

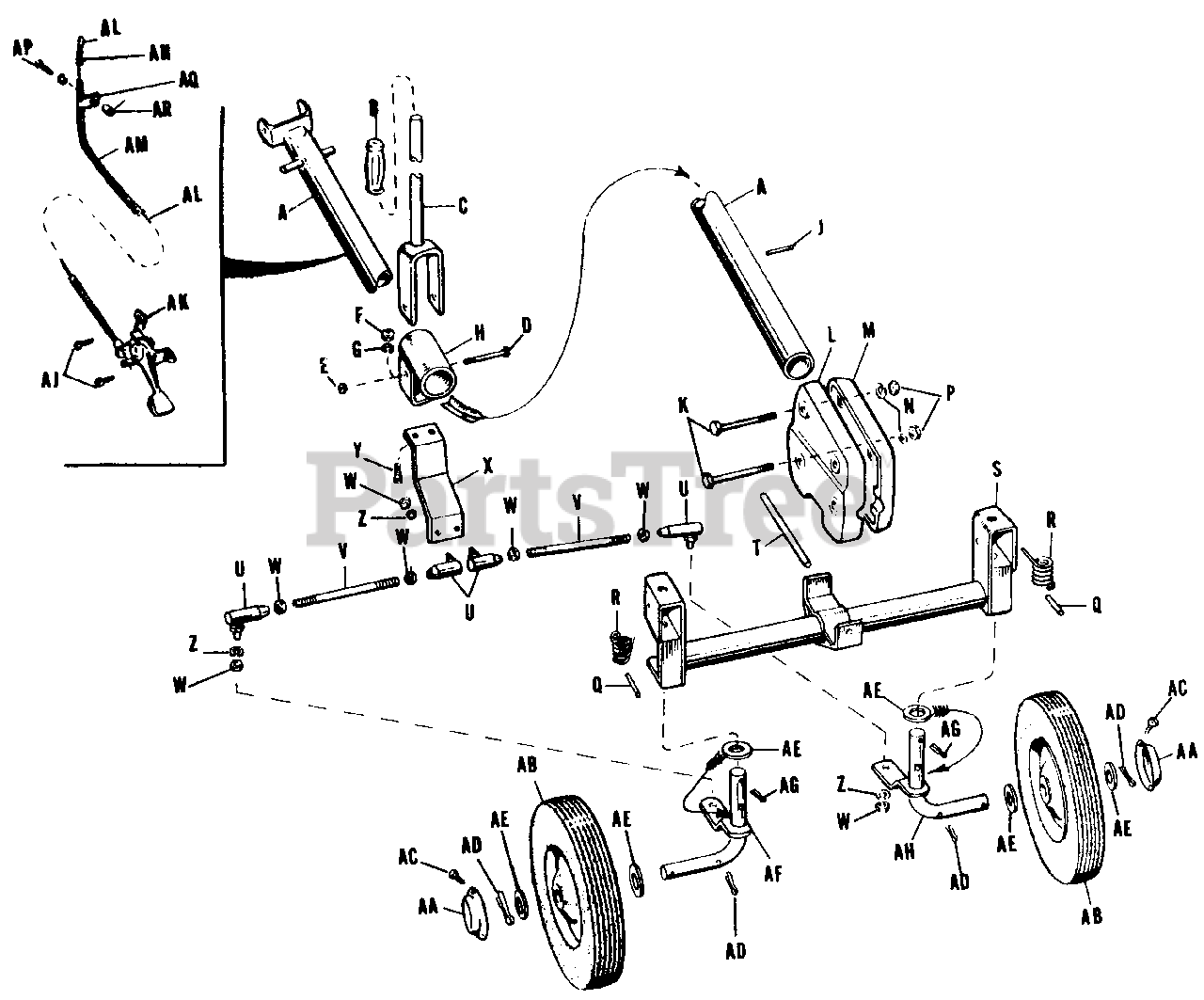

FRONT AXLE AND FRONT SUPPORT Parts Diagram

  • Title

A

Simplicity 121024

Frame Assembly, Front

$

$

Not available

B

Simplicity 2153043

Grip, Handle

$

$

Not available

C

Simplicity 121018

Handle Assembly

$

$

Not available

D

Simplicity 705029

Screw, Hex Hd. Cap, 3/8-16 x 3 1/4"

$8.99

$

Usually ships in 2-12 days

0

E

Simplicity 2717510

Lock Nut, Hex, 3/8-16

$

$

Not available

F

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

G

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

H

Simplicity 121021

Pivot Assembly, Steering

$

$

Not available

J

Simplicity 2723002

Pin, Roll 7/32 x 1" Long

$

$

Not available

K

Simplicity 705029

Screw, Hex Cap, 3/8-16 x 3 1/4"

$8.99

$

Usually ships in 2-12 days

0

L

Simplicity 121015

Support, Front, R.H.

$

$

Not available

M

Simplicity 121014

Support, Front, L.H.

$

$

Not available

N

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

P

Simplicity 2711003

Nut, Full Hex, 3/8-16

$

$

Not available

Q

Simplicity 2723001

Pin, Roll, 5/16 x 1 1/4

$

$

Not available

R

Simplicity 2121011SM

Spring, Torsion

$50.99

$

Usually ships in 2-12 days

0

S

Simplicity 121001

Axle Assembly, Front

$

$

Not available

T

Simplicity 121016

Pin, Pivot

$

$

Not available

U

Simplicity 121127

Joint, Ball

$

$

Not available

V

Simplicity 121013

Rod, Tie

$

$

Not available

W

Simplicity 717010

Nut, Full Hex. 3/8-24

$

$

Not available

X

Simplicity 121017

Arm, Lever

$

$

Not available

Y

Simplicity 2705031

Screw, Hex Cap, 3/8-16 x 7/8"

$

$

Not available

Z

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AA

Simplicity 121136

Hub Cap, Front

$

$

Not available

AB

Simplicity 121012

Wheel, Front, w/Tire

$

$

Not available

AC

Simplicity 2714003

Screw, Self-tapping No. 10 x 1/2"

$

$

Not available

AD

Simplicity 722014

Pin, Cotter, 5/32 x 1 1/4"

$

$

Not available

AE

Simplicity G-A12

Washer

$

$

Not available

AF

Simplicity 121007

Spindle Assembly, R.H.

$

$

Not available

AG

Simplicity 722015

Pin, Cotter, 5/32 x 1"

$

$

Not available

AH

Simplicity 121010

Spindle Assembly, L.H.

$

$

Not available

AJ

Simplicity 714005

Screw, Rd. Hd., No. 10-24 x 1/2"

$

$

Not available

AK

Simplicity 118044

Throttle Lever Control

$

$

Not available

AL

Simplicity 121077

Throttle Wire

$

$

Not available

AM

Simplicity 121076

Throttle Cable

$

$

Not available

AN

Simplicity 121122

Spring, Throttle Wire

$

$

Not available

AP

Screw and Lock Washer Assembly, 10-32 x 7/8" (for 3851 cable clamp)

$

$

Not available

AQ

Simplicity 3851

Clamp, Cable

$

$

Not available

AR

Simplicity 3834

Spacer

$

$

Not available
