990120 - Simplicity Wonderboy Rear-Engine Riding Mower, 4hp CONTROL LINKAGE AND POWER TAKE-OFF Parts Diagram

Wonderboy Rear-Engine Riding Mower, 4hp

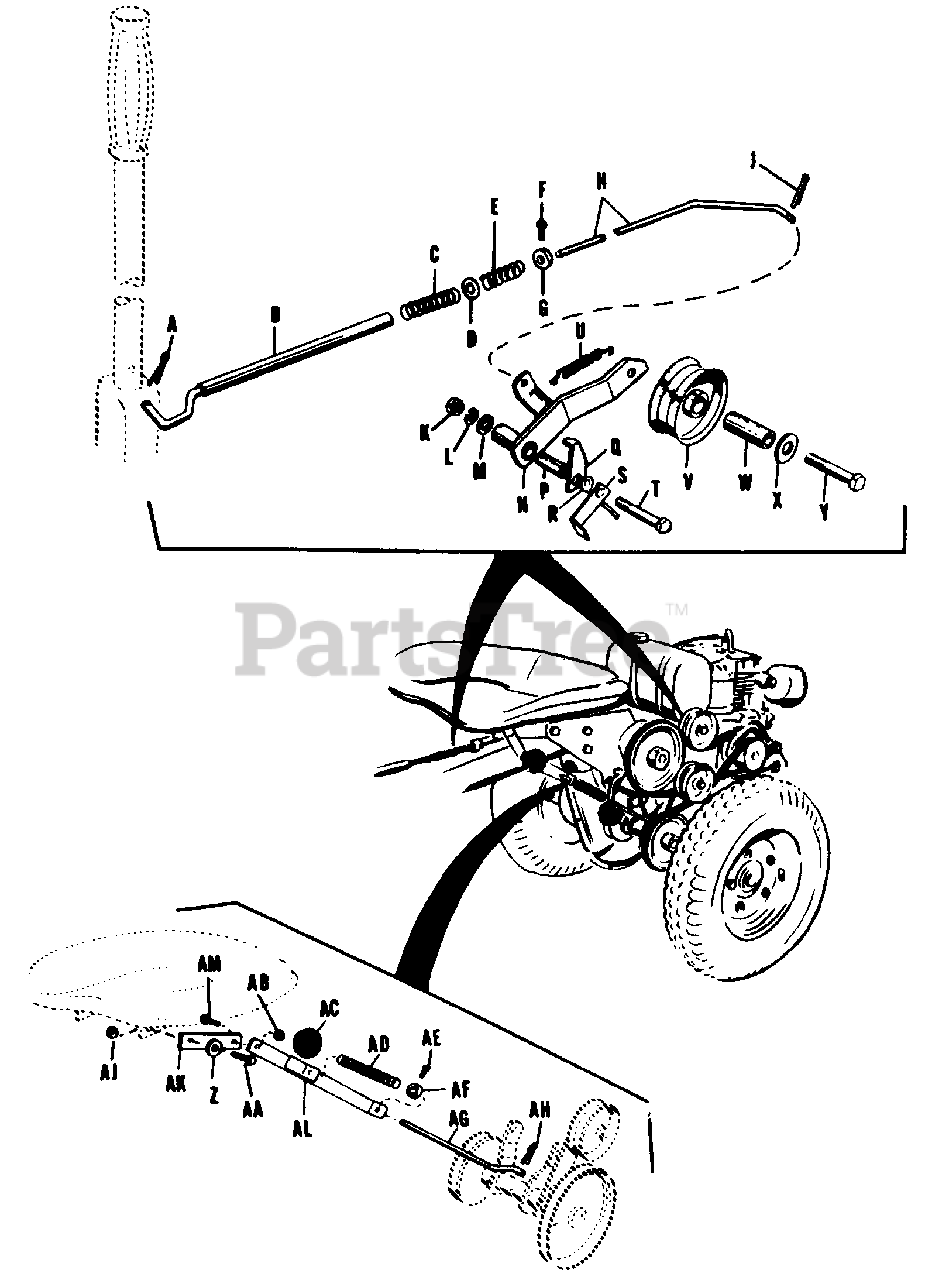

CONTROL LINKAGE AND POWER TAKE-OFF Parts Diagram

  • Title

A

Simplicity 2722016

Pin, Cotter, 3/32 x 5/8"

$

$

Not available

B

Simplicity 121030

Rod, Front Clutch Assembly

$

$

Not available

C

Simplicity S2A45

Spring

$

$

Not available

D

Simplicity 2719002

Washer, Plated, 5/16"

$

$

Not available

E

Simplicity 2152006SM

Spring

$8.49

$

Usually ships in 2-12 days

0

F

Simplicity 2713001

Set Screw, Sq. Hd., 1/4-20 x 3/8"

$

$

Not available

G

Simplicity S2A-22A

Collar, Set

$

$

Not available

H

Simplicity 121033

Rod, Rear Clutch

$

$

Not available

J

Simplicity 2722016

Pin, Cotter, 3/32 x 5/8

$

$

Not available

K

Simplicity 2717003

Nut, Full Hex, 3/8-16

$

$

Not available

L

Simplicity 2720002

Washer, Lock 3/8

$

$

Not available

M

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

N

Simplicity 121034

Lever Assembly, Idler

$

$

Not available

P

Simplicity GA58

Spacer

$

$

Not available

Q

Simplicity 121038

Stop, Lever

$

$

Not available

R

Simplicity 121044

Pin, Lock

$

$

Not available

S

Simplicity 121135

Guide, Belt

$

$

Not available

T

Simplicity 2705028

Screw, Hex Cap, 3/8-16 x 2 3/4"

$

$

Not available

U

Simplicity 2121037SM

Spring

$

$

Not available

V

Simplicity S1-AX21

Pulley, Idler

$

$

Not available

W

Simplicity S2-A20

Race, Inner Bearing

$

$

Not available

X

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

Y

Simplicity 2705006

Screw, Hex Cap, 3/8-16 x 2"

$

$

Not available

Z

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AA

Simplicity 2705004

Screw, Hex Cap, 3/8-16 x 3/4

$

$

Not available

AB

Simplicity 2717510

Lock-nut 3/8-16

$

$

Not available

AC

Simplicity D-A50

Knob

$

$

Not available

AD

Simplicity S2A45

Spring

$

$

Not available

AE

Simplicity 2713001

Screw, Sq. Hd. Set, 1/4-20 x 3/8"

$

$

Not available

AF

Simplicity S2A-22A

Collar, Set

$

$

Not available

AG

Simplicity 121052

Rod, Clutch

$

$

Not available

AH

Simplicity 2722016

Pin, Cotter, 3/32 x 5/8"

$

$

Not available

AJ

Simplicity 2717510

Nut, Lock 3/8-16

$

$

Not available

AK

Simplicity 121053

Lever

$

$

Not available

AL

Simplicity GSAX3

Guide Assembly

$

$

Not available

AM

Simplicity 2705005

Screw, Hex Cap, 3/8-16 x 1"

$

$

Not available
