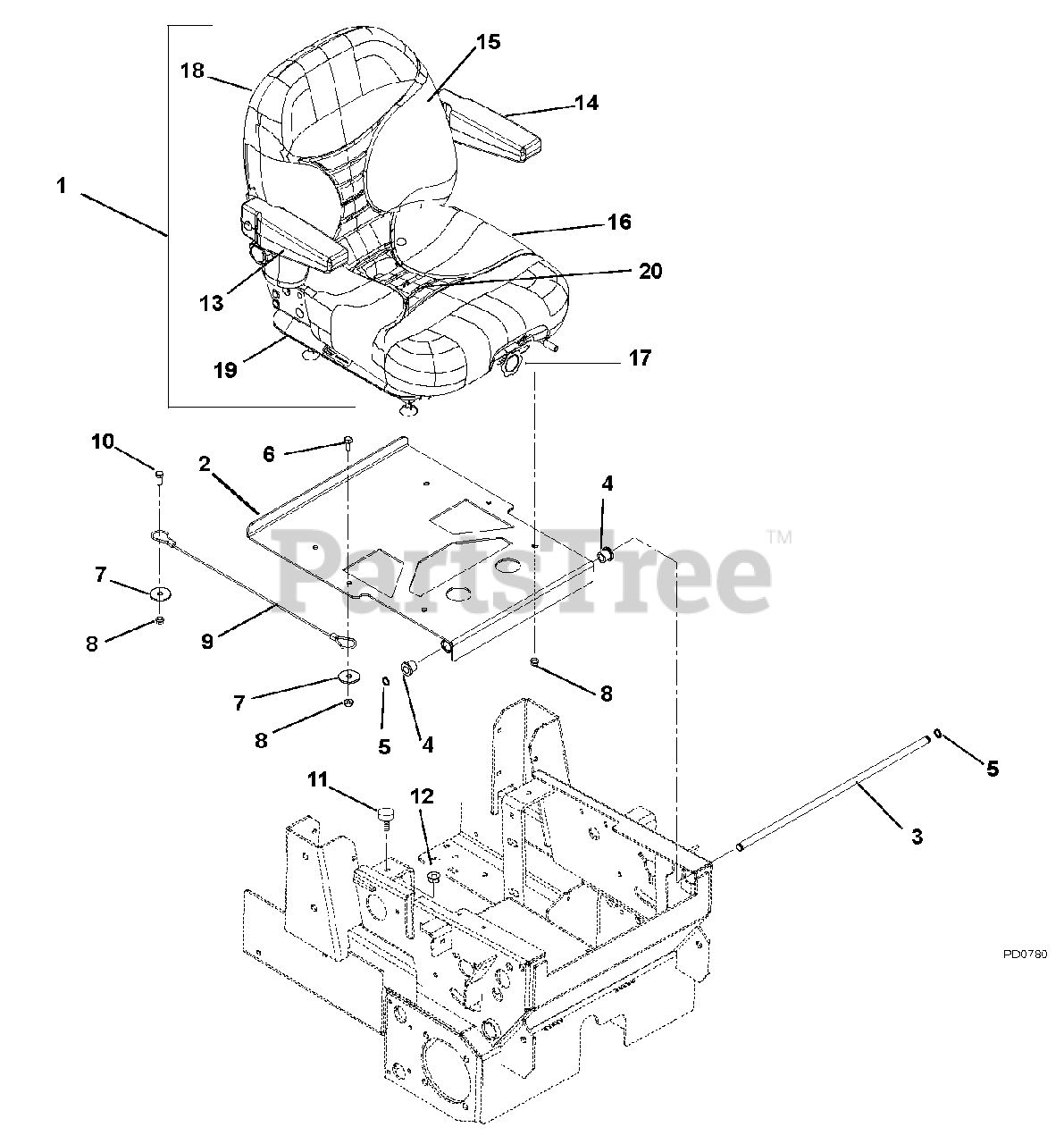

990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Seat Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Seat Parts Diagram

  • Title
1

Gravely 03947200

Seat, Suspension, Light Grey (Includes items 13 – 20)

Note: (Includes items 13 – 20)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 00474151

Plate, Seat Pivot

$

$

Not available

3

Gravely 00587700

Rod, Seat Pivot (Outfront)

Note: (Outfront)

$12.99

$

Usually ships in 4-12 days

0

4

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00 Nylon

$2.49

$

In Stock, only 3 left!

0

5

Gravely 05717100

Ring, Retaining External .500 x .050

$2.49

$

In Stock, Qty 8

0

6

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06900010

Cable, Seat Prop

$50.99

$

Usually ships in 4-12 days

0

10

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

12

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 59210400

Kit, Right Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 59210500

Kit, Left Hand Armrest Assembly

$129.99

$

Usually ships in 4-12 days

0

15

Gravely 59208800

Kit, Back Cushion, Light Grey

$423.99

$

Usually ships in 4-12 days

0

16

Gravely 59208900

Kit, Seat Cushion, Light Grey

$258.99

$

In Stock, only 3 left!

0

17

Gravely 59208000

Kit, Seat Knobs

$

$

Not available

18

Gravely 59208100

Kit, Seat Back

$175.99

$

Usually ships in 4-12 days

0

19

Gravely 59207900

Kit, Seat Slides

$

$

Not available

20

Gravely 59207800

Kit, Seat Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0
