990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Rear Axle and Weights Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

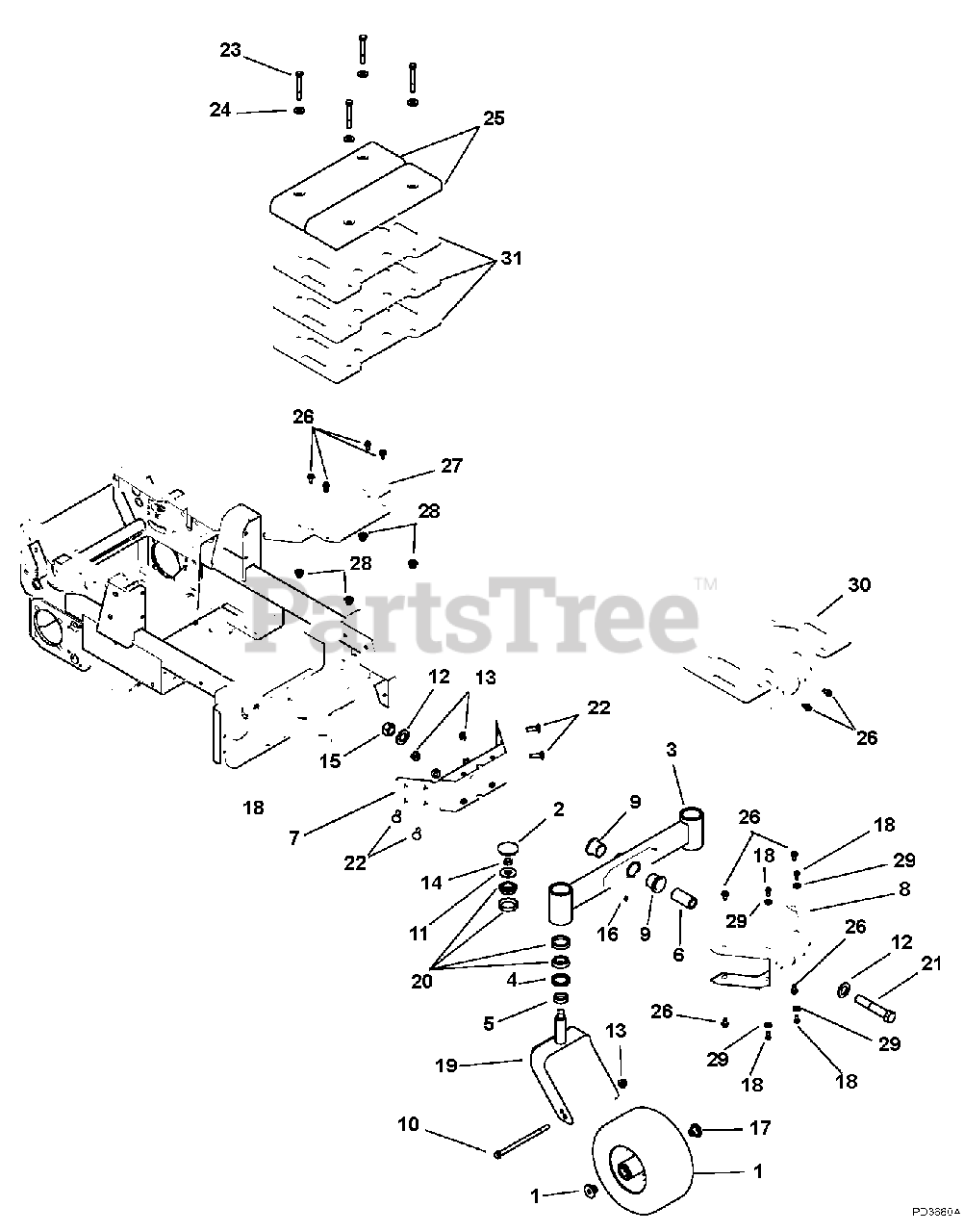

Rear Axle and Weights Parts Diagram

  • Title

1

Gravely 00675300

Spacer, Front Wheel

$7.99

$

In Stock, Qty 20+

0

2

Gravely 03925900

Cap, Dust

$11.99

$

In Stock, only 2 left!

0

3

Gravely 00494653

Weldment, Rear Axle

$930.99

$

Usually ships in 4-12 days

0

4

Gravely 05600432

Bearing Seal 1.75 x 2.332 x .312

$11.99

$

In Stock, Qty 13

0

5

Gravely 03760300

Spacer, 1.258 ID x 1.75 OD x .550

$32.99

$

Usually ships in 4-12 days

0

6

Gravely 00607900

Spacer, 1 x 1.50 x 3.16"LG

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 00613300

Weldment, Rear Axle Mounting Plate

$

$

Not available

8

Gravely 04269300

Cover, Rear Axle

$

$

Not available

9

Gravely 05517600

Bushing, Flange 1.514 x 1.756 x 1.688 x 2.250 Nylon

$9.49

$

In Stock, only 4 left!

0

10

Gravely 05961200

Bolt, Hex .50-13 x 7.50 Grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

11

Gravely 06439800

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 06427900

Washer, Flat Steel 1.062 x 2.0 x .134

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06536900

Nut, Jam Center Lock .75-16

$5.99

$

In Stock, only 3 left!

0

15

Gravely 06500022

Nut, Locking Nylon 1.0-8

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 07012600

Fitting, Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

17

Gravely 07100903

Tire/Wheel Assembly 13 x 6.50-6
(Superseded to 59103400)

$193.99

$

Usually ships in 4-12 days

0

18

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

19

Gravely 03924453

Caster, Front Fork Weldment

$180.99

$

In Stock, only 2 left!

0

20

Gravely 05404600

Bearing, Cup 2.328 x .465

$13.99

$

In Stock, only 2 left!

0

Gravely 05404700

Bearing, Cone with Grease

$20.99

$

In Stock, Qty 20+

0

21

Gravely 05900104

Bolt, Hex 1.0-8 x 5.50 Grade 5

$11.99

$

Usually ships in 4-12 days

0

22

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

23

Gravely 05960100

Bolt, Hex .50-13 x 3.75 Grade 5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06430200

Washer, Flat Steel .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00172000

Weight, Cast Iron

$297.99

$

Usually ships in 4-12 days

0

26

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread Rolling
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 04345851

Bracket, Weight

$

$

Not available

28

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

29

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 04347651

Weight Plate

$100.99

$

Usually ships in 4-12 days

0

31

Gravely 04346151

Weight Plate

$81.99

$

Usually ships in 4-12 days

0
