990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Hood Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

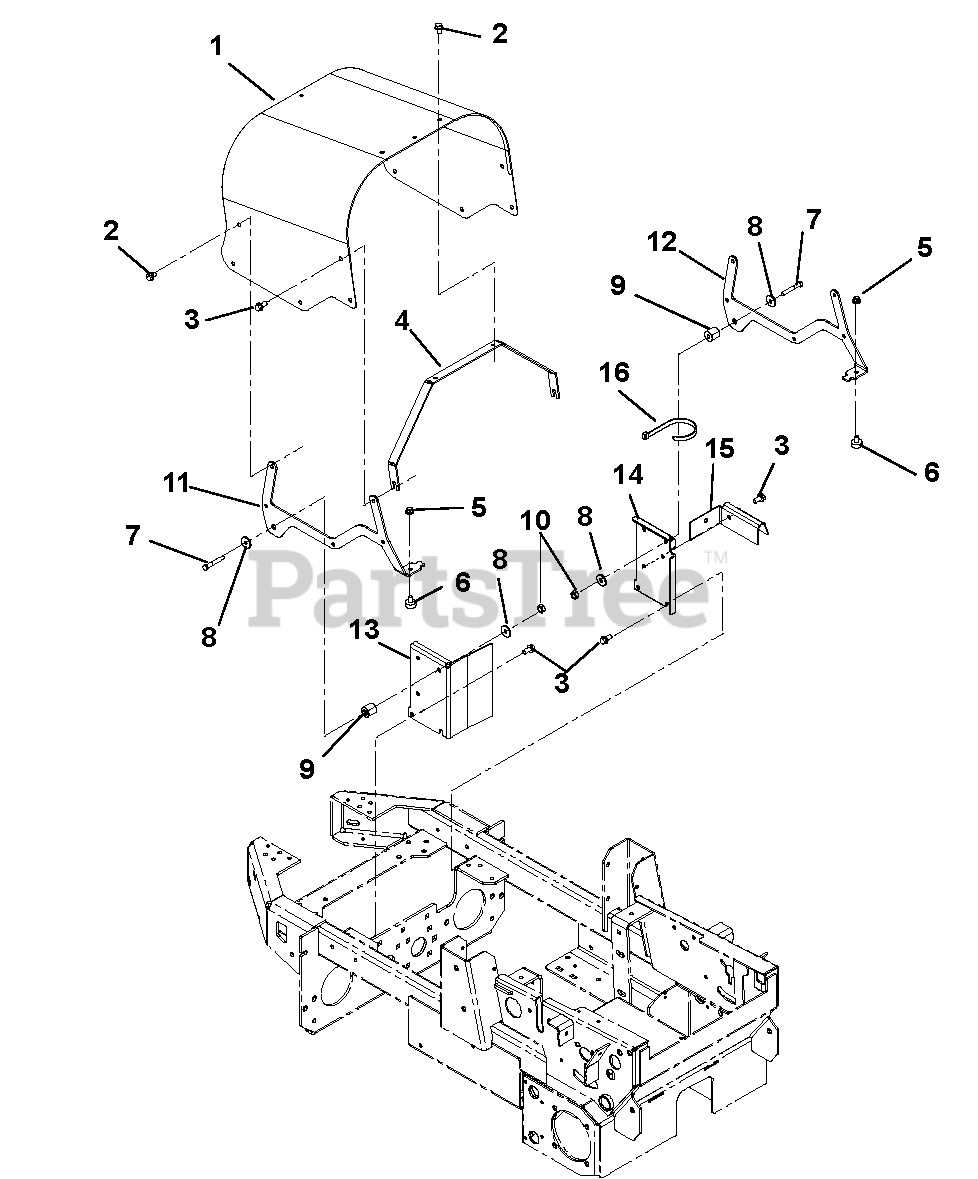

Hood Parts Diagram

  • Title

1

Gravely 00497353

Hood, Outfront Rapid XZ

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head Thread
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00667553

Support, Lateral Hood

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

7

Gravely 05963700

Bolt, Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 00476300

Spacer

$16.99

$

Usually ships in 4-12 days

0

10

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00595653

Bracket, Hood Left Hand

$50.99

$

Usually ships in 4-12 days

0

12

Gravely 00595753

Bracket, Hood Right Hand

$50.99

$

Usually ships in 4-12 days

0

13

Gravely 00664151

Bracket, Hood Support #2

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 00664051

Bracket, Hood Support #1

$32.99

$

Usually ships in 4-12 days

0

15

Gravely 00676851

Cover, Wire

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 07517300

Wire Tie (Clutch wire to wire cover)

Note: (Clutch wire to wire cover)

$

$

Not available
