990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Fuel Tanks and Hoses Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

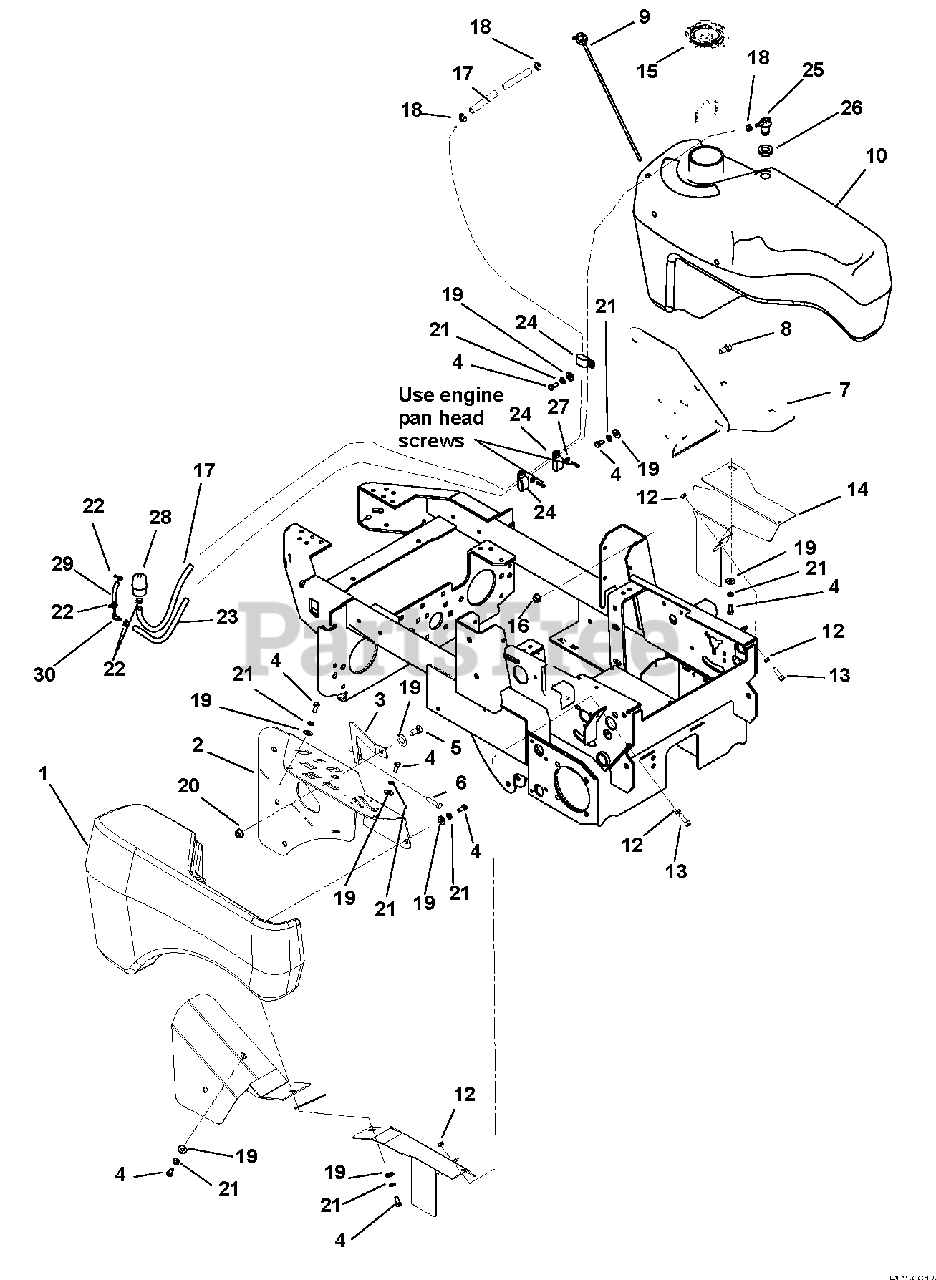

Fuel Tanks and Hoses Parts Diagram

  • Title

1

Gravely 00497400

Fender, Right Hand

$

$

Not available

2

Gravely 00473951

Weldment, Control Panel

$125.99

$

Usually ships in 4-12 days

0

3

Gravely 00616851

Stiffener, Fender

$

$

Not available

4

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00588451

Weldment, Fuel Tank Bracket (Outfront)

Note: (Outfront)

$81.99

$

Usually ships in 4-12 days

0

8

Gravely 05947100

Bolt, Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

9

Gravely 04315600

Assembly, Fuel Line with 90° Fitting

$21.99

$

Usually ships in 4-12 days

0

10

Gravely 04245800

Tank, Fuel Left Hand Rapid XZ
(Superseded to 04341100)

$339.99

$

Usually ships in 4-12 days

0

11

Gravely 00672751

Cover, Tire Right Hand

$

$

Not available

12

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00672651

Cover, Tire Left Hand

$

$

Not available

15

Gravely 04237300

Cap, Fuel
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

16

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

Gas Line, Bulk 1/4" I.D.

$1.49

$

In Stock, Qty 20+

0

18

Gravely 03278800

Clamp, Hose Wire .490/.510 x .116

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06308600

Washer, Lock .31 x .078 Regular YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 04097700

Clamp, Hose Spring .188

$

$

Not available

23

Gravely 03278100

Hose, .25 Low-PERM Bulk Gas

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06900437

Clamp, Insulated Tube 5/8 YWZC

$

$

Not available

25

Gravely 04068910

Valve, Combination
(Superseded to 05185600)

$17.99

$

In Stock, only 1 left!

0

26

Gravely 04082700

Grommet, Remote Vent Nitrile

$3.49

$

In Stock, Qty 9

0

27

Gravely 06442300

Washer, Flat-Steel .25 x .562 .049 YWZC

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 21539500

Fuel Filter, Engine

$12.99

$

In Stock, Qty 20+

0

29

Gravely 03375900

Hose, Low-Perm Bulk Gas .188

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 04097000

Fitting, 90° Vacuum 3/16 x 1/4

$14.99

$

Usually ships in 4-12 days

0
