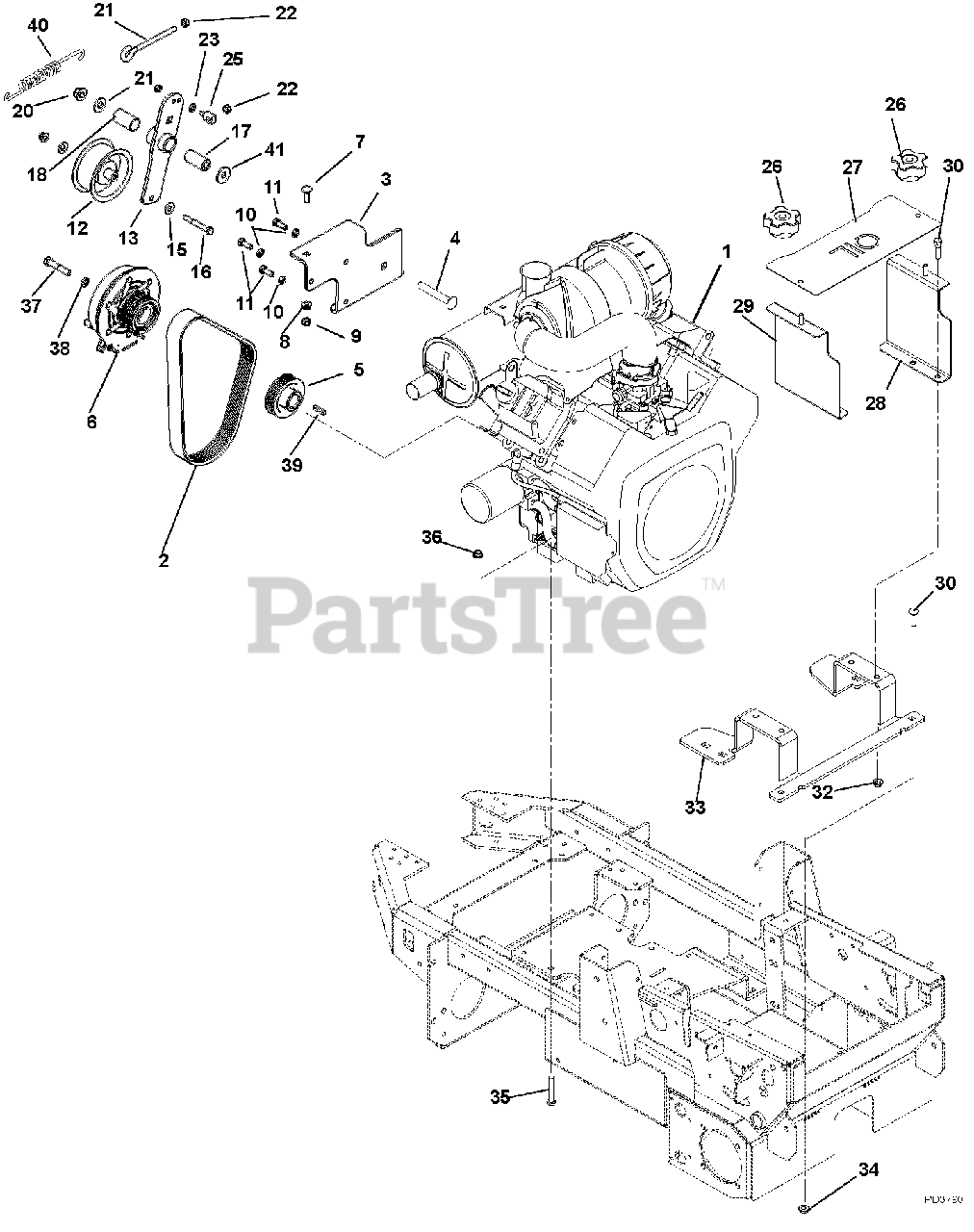

990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Engine and Clutch Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

Engine and Clutch Parts Diagram

  • Title

1

Gravely 08200145

Engine, 30 HP Kohler

$

$

Not available

2

Gravely 07200602

Belt, 8 Rib Poly V L-Section

$97.99

$

Usually ships in 4-12 days

0

3

Gravely 00667451

Bracket, PTO Idler Mounting

$41.99

$

Usually ships in 4-12 days

0

4

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

5

Gravely 07300041

Sheave, Poly-V

$93.99

$

In Stock, only 1 left!

0

6

Gravely 04312000

Clutch, 8 Groove Poly V L-Section

$969.99

$

Usually ships in 4-12 days

0

7

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07327800

V-Idler, 4.00 x .38 (2.00 wide)

Note: (2.00 wide)

$87.99

$

In Stock, only 2 left!

0

13

Gravely 00652700

Assembly, Idler Pivot Assembly (includes items 14 and 18

$

$

Not available

14

Gravely 00652300

Weldment, PTO Idler Pivot Arm (included in item 14)

Note: (included in item 14)

$112.99

$

Usually ships in 4-12 days

0

15

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05961400

Bolt, Hex .38-16 x 2.75 Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

17

Gravely 01581700

Bushing, Spacer.505/.500 x .999/.996 x 2

$5.99

$

In Stock, Qty 20+

0

18

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.936 (included in item 14)
(Superseded to 05501234)

Note: (included in item 14)

$10.99

$

In Stock, Qty 20+

0

19

Gravely 06430200

Washer, Flat Steel .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07001701

Bolt, Eye .38-16 x 4.50, .75" Eye

$12.99

$

Usually ships in 4-12 days

0

22

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 09267300

Pin, Pivot

$6.99

$

In Stock, only 1 left!

0

26

Gravely 07534800

Knob, Clamping .312-18 Nyloc

$3.49

$

In Stock, Qty 20+

0

27

Gravely 00865151

Shroud, Cooling

$34.99

$

In Stock, only 1 left!

0

28

Gravely 00866951

Bracket, Tank Shroud Left Hand

$39.99

$

Usually ships in 4-12 days

0

29

Gravely 00867051

Bracket, Tank Shroud Right Hand

$37.99

$

Usually ships in 4-12 days

0

30

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

31

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

32

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 00682451

Mount, Hydraulic Tank

$

$

Not available

34

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 05900040

Bolt, Hex .44-20 x 2.25 Grade 5 EP80

$6.99

$

Usually ships in 4-12 days

0

38

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

39

Gravely 06603400

Key

$3.99

$

In Stock, Qty 11

0

40

Gravely 08321200

Spring, Tension .135 X.69 X 5.75

$21.99

$

Usually ships in 4-12 days

0

41

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0
