990107 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Control Panel Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

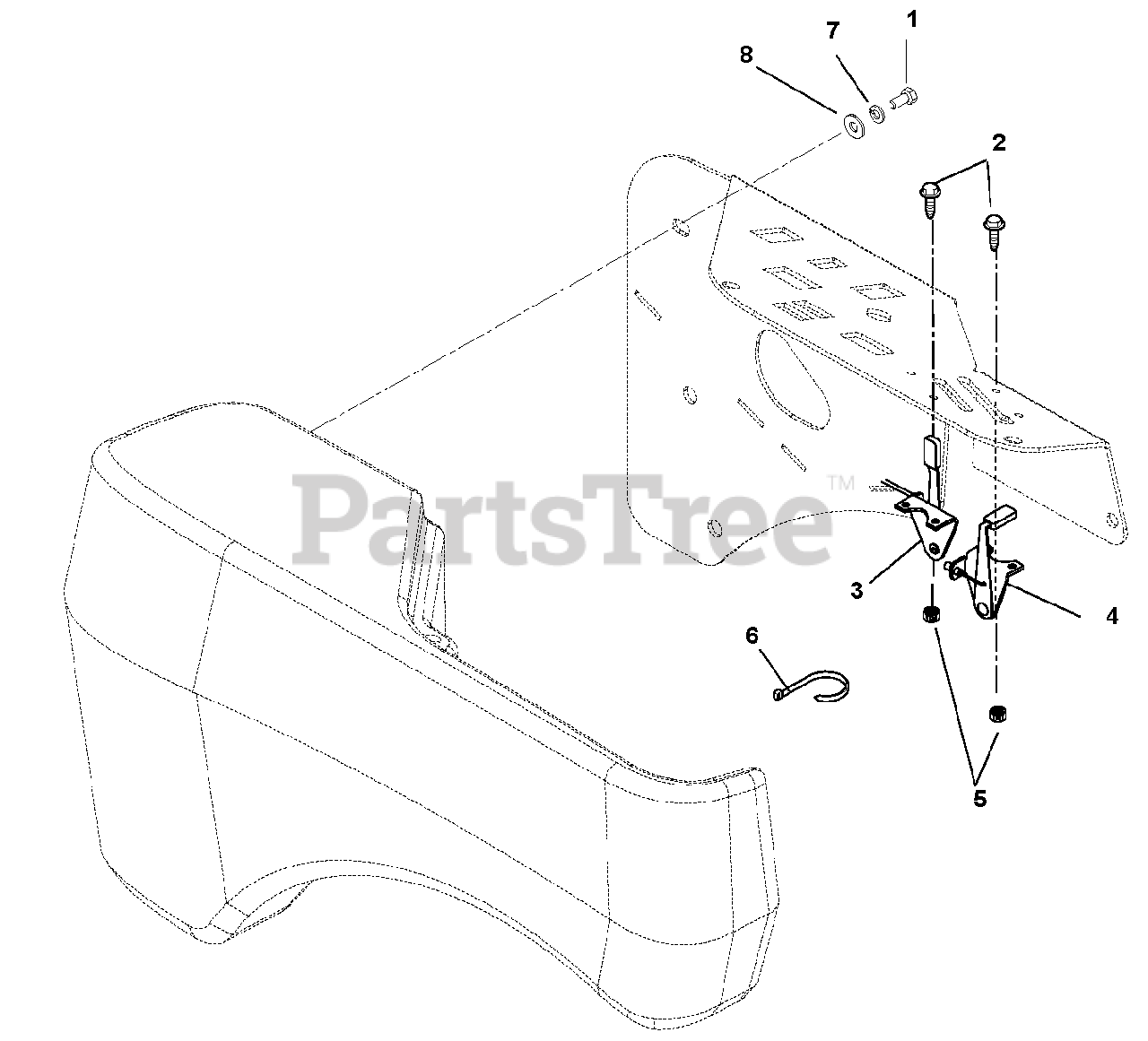

Control Panel Parts Diagram

  • Title

1

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06900040

Cable, Kohler Throttle

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 06900041

Cable, Kohler Choke

$34.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07517300

Cable Tie

$

$

Not available

7

Gravely 06308600

Washer, Locking .31 x .078 Regular YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
