990102 - Gravely Rapid XZ Zero-Turn Mower, 30hp Kohler (SN: 000101 & Above) Steering Levers And Linkages Parts Diagram

Rapid XZ Zero-Turn Mower, 30hp Kohler

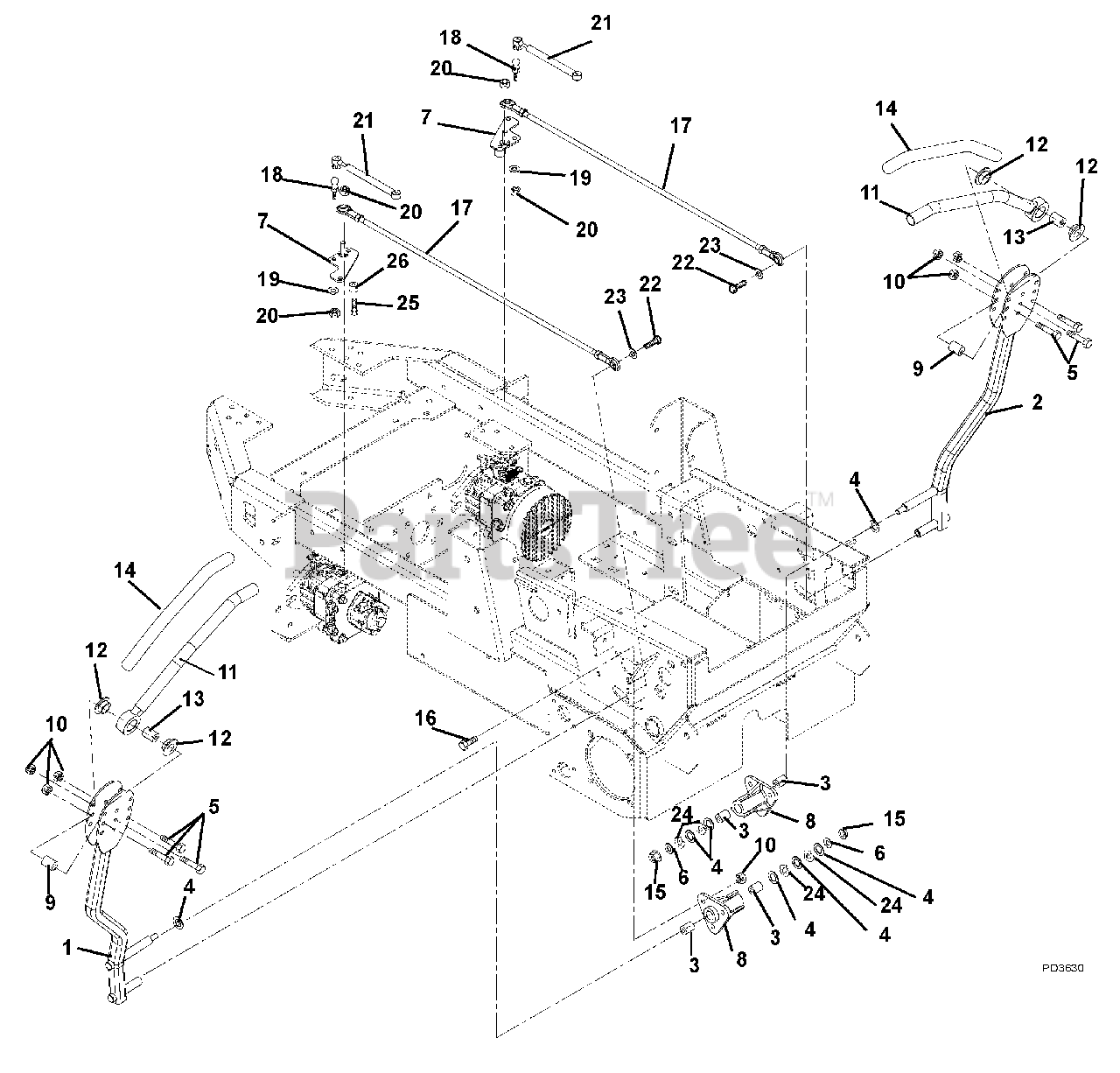

Steering Levers And Linkages Parts Diagram

  • Title

1

Gravely 00585051

Weldment, Bent Steering Arm-Right Hand

$

$

Not available

2

Gravely 00472951

Weldment, Bent Steering Arm-Left Hand

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$9.99

$

In Stock, only 4 left!

0

4

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00492400

Weldment, Damper, Steering

$82.99

$

Usually ships in 4-12 days

0

8

Gravely 09294600

Housing, Bushing

$34.99

$

In Stock, only 1 left!

0

9

Gravely 09235700

Eccentric

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09235500

Handle, Left Hand

$90.99

$

Usually ships in 4-12 days

0

Gravely 09235600

Handle, Right Hand

$93.99

$

In Stock, only 1 left!

0

12

Gravely 05525200

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05501517)

$

$

Not available

13

Gravely 09235400

Spacer

$

$

Not available

14

Gravely 00675200

Grip, Handlebar

$9.49

$

In Stock, only 1 left!

0

15

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00587500

Assembly, Steering Rod .38ROD x 30.43LG

$41.99

$

Usually ships in 4-12 days

0

18

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

19

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 09273400

Damper, Control

$71.99

$

In Stock, only 4 left!

0

22

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 03704900

Wave Washer .640 x .875 x .125

$2.49

$

In Stock, only 4 left!

0

25

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

26

Gravely 03101900

Spacer .318 x .430 x .375

$

$

Not available
