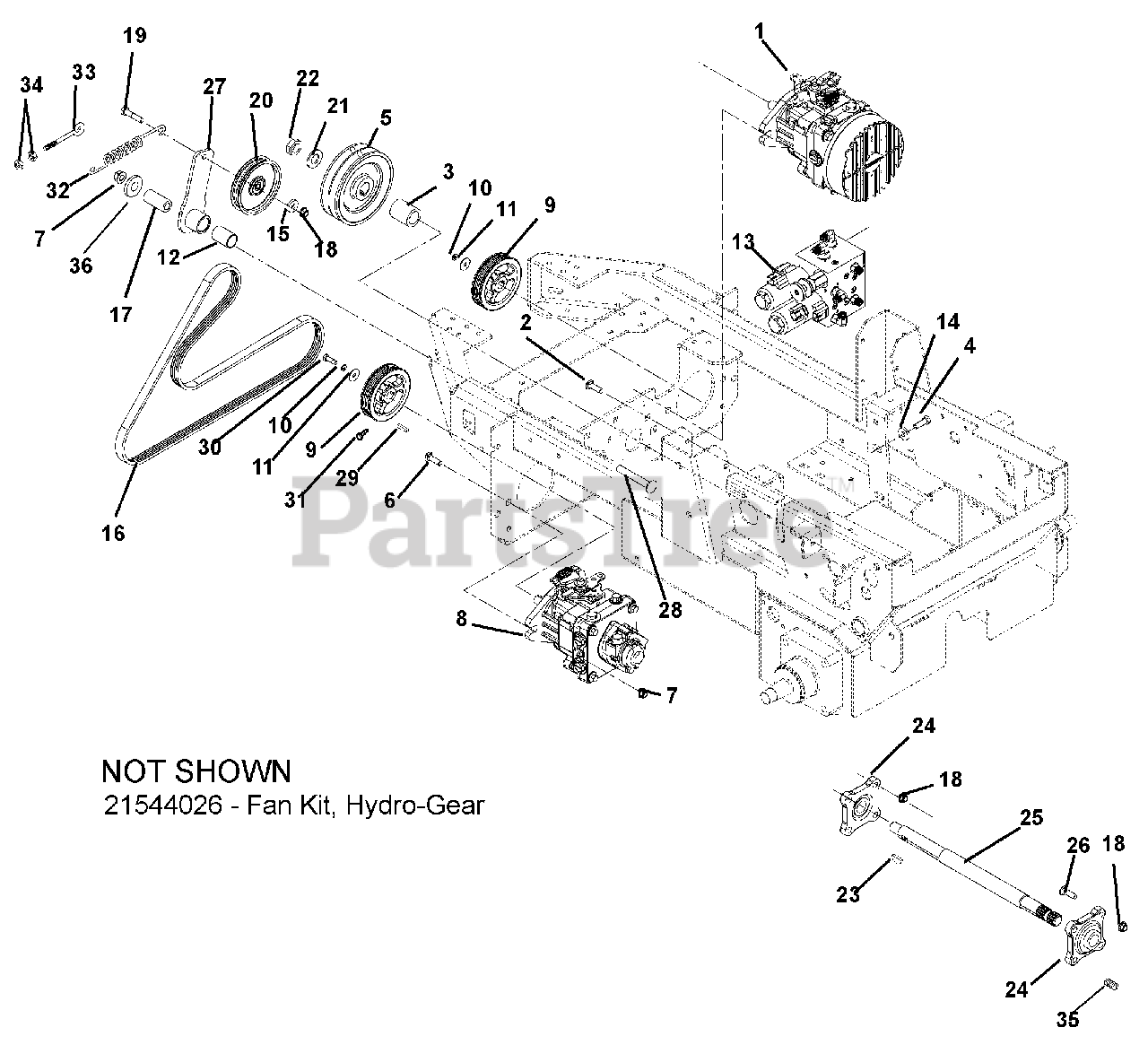

990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Hydrostatic Pumps And Idlers Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

Hydrostatic Pumps And Idlers Parts Diagram

  • Title

1

Gravely 00587200

Pump, Hydraulic BDP-21L-Left Hand RAPID XZ

$1066.99

$

Usually ships in 4-12 days

0

2

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 00677100

Spacer, 1.0ID x 1.5OD x 1.81 Lining

$37.99

$

Usually ships in 4-12 days

0

4

Gravely 05946900

Bolt, Hex .31-18X1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07300034

Sheave, Double 1"ID x 6.26"OD

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

7

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00587300

Pump, Hydraulic BDP-21L Right Hand RAPID XZ

$1025.99

$

Usually ships in 4-12 days

0

9

Gravely 07300037

Sheave, Poly V .671 x 4.125

$90.99

$

In Stock, only 1 left!

0

10

Gravely 06308400

Washer, Locking .25 x .06
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06426600

Washer, Flat Steel .281 x 1.000 x .063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05500123

Bearing, 1.00 x 1.125 x 1.936
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

13

Gravely 00608100

Valve, 2 Spool Mainifold Block

$

$

Not available

14

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 07243700

Belt, Poly-V 69.39 (5 RIBS)

Note: (5 RIBS)

$

$

Not available

17

Gravely 02581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$

$

Not available

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 07312500

Idler, Flat 4.00 x .38
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

21

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06536900

Nut, Jam Center-Lock .75-16

$5.99

$

In Stock, only 3 left!

0

23

Gravely 06601200

Key, Woodruff .25 x .750 x .313 SAE91

$2.99

$

In Stock, Qty 20+

0

24

Gravely 05400015

Bearing, 1" ID 4 Bolt-Trash Seal

$41.99

$

Usually ships in 4-12 days

0

25

Gravely 00887700

Shaft, PTO Jack Shaft RAPIDXZ

$213.99

$

In Stock, only 1 left!

0

26

Gravely 05958000

Bolt, Hex .38-16X1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00349100

Assembly, Idler Pivot Arm

$63.99

$

In Stock, only 2 left!

0

28

Gravely 06225000

Bolt, Round Head Square Neck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

29

Gravely 06611300

Key, Square 5 x 5 x 30MM Plain

$2.49

$

In Stock, Qty 8

0

30

Gravely 05975900

Bolt, Hex M6-1 x 16
(Superseded to 05902026)

$0.99

$

In Stock, only 2 left!

0

31

Gravely 05980100

Screw, Socket Head .25-20 x .50 PH and Oil
(Superseded to 05900127)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 08321200

Spring, Tension .135 x .69 x 5.75 Weldment 150

$21.99

$

Usually ships in 4-12 days

0

33

Gravely 07030000

Bolt, Eye .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

34

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06000003

Screw, Set .25-28 x .38

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 21544026

FAN KIT, HYDRO-GEAR

Note: NOT SHOWN

$32.99

$

Usually ships in 4-12 days

0
