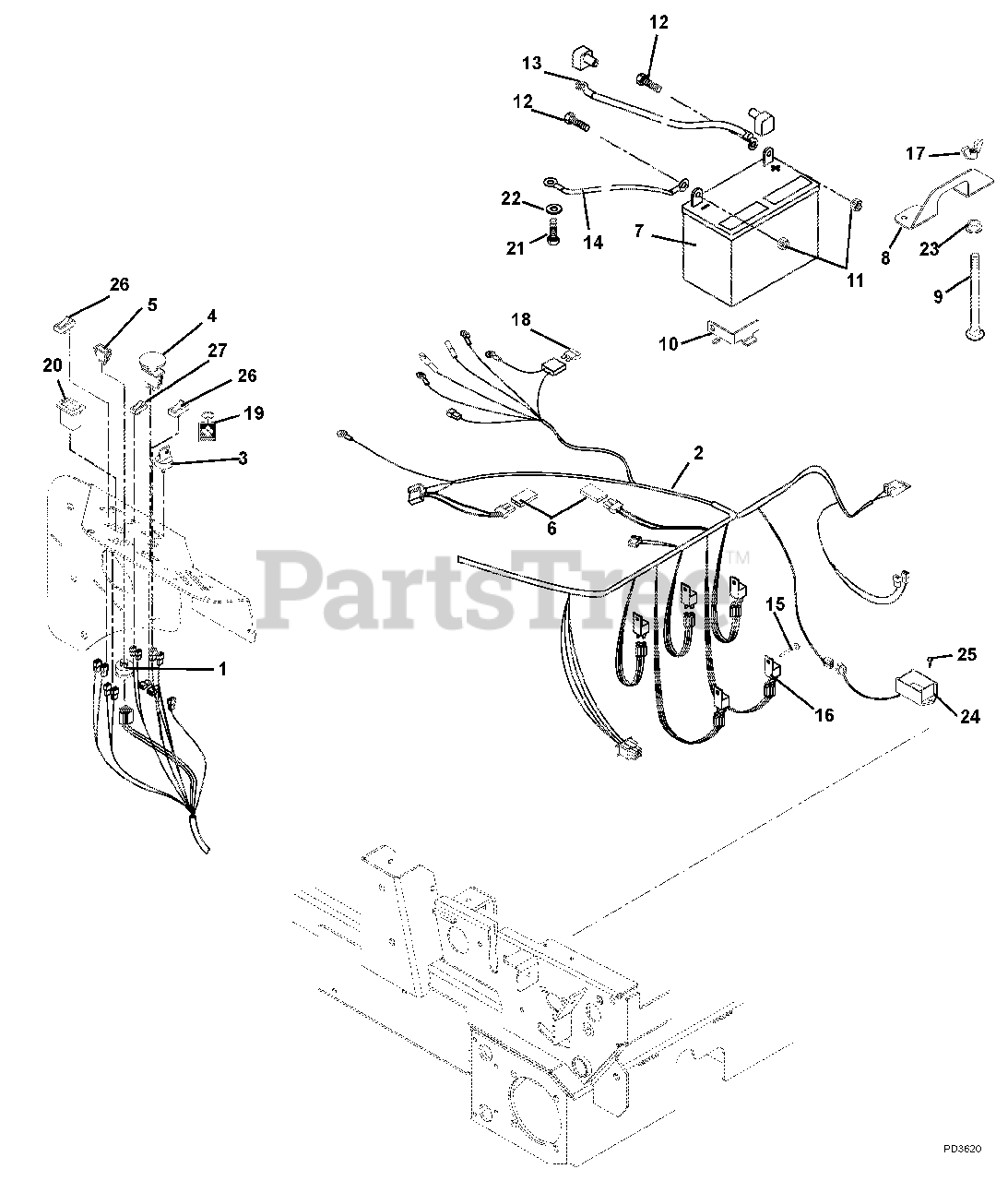

990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

Electrical System Parts Diagram

  • Title
1

Gravely 00464000

Key Switch
(Superseded to 04331600)

$45.99

$

In Stock, Qty 20+

0

2

Gravely 03286800

Harness, Rapid XD

$448.99

$

Usually ships in 4-12 days

0

3

Gravely 09287000

Key with Shield

$14.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

Switch, Clutch With Retainer Ring

$25.99

$

In Stock, Qty 20+

0

5

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

7

$

$

Not available

8

Gravely 00428151

Hold Down, Battery

$21.99

$

In Stock, only 1 left!

0

9

Gravely 06226400

Bolt, Round Head Square Neck .25-20 x 7.50
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 00616451

Bracket, Battery Position

$51.99

$

Usually ships in 4-12 days

0

11

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

12

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00605900

Cable, Positive
(Superseded to 03286900)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 03288200

Cable, Negative Battery 35.0"LG

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 06800004

Rivet, Nylon

$

$

Not available

16

Gravely 00432100

Relay, Sealed with diode (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$22.99

$

In Stock, Qty 20+

0

17

Gravely 06537500

Nut, Locking Wing .25-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

18

Gravely 00524600

Fuse, 30 Amp (Included with Harness)

Note: (Included with Harness)

$

$

Not available

19

Gravely 00457400

Key Chain

$

$

Not available

20

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

21

Gravely 05956300

Bolt, Hex M8 x 1.25 x 16

$

$

Not available

22

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 07027600

Nut, Push .25 x .50 O.D.

$2.49

$

In Stock, Qty 9

0

24

Gravely 00678300

Assembly, Weight Transfer Angle Sensor

$

$

Not available

25

Gravely 07411900

Screw, Tapping 12-24 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

26

Gravely 00652100

Switch, Double Pole Double Throw

$

$

Not available

27

Gravely 08973300

Switch, 2 Pole/Rocker

$6.99

$

In Stock, only 1 left!

0
