990101 - Gravely Rapid XZ Zero-Turn Mower, 25hp Kohler (SN: 000101 & Above) Brake Linkage Parts Diagram

Rapid XZ Zero-Turn Mower, 25hp Kohler

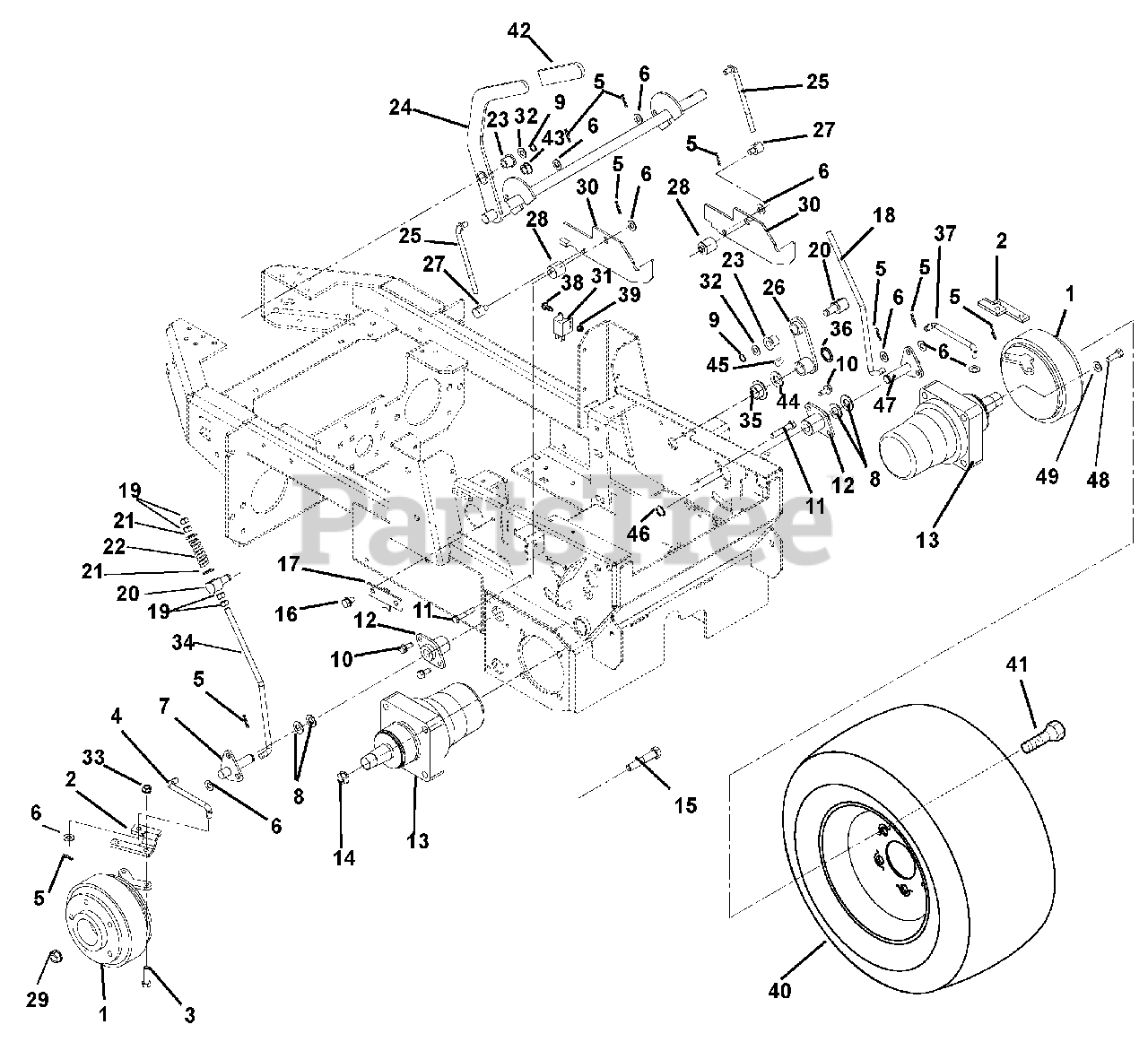

Brake Linkage Parts Diagram

  • Title

1

Gravely 00602500

Assembly, Brake

$732.99

$

Usually ships in 4-12 days

0

2

Gravely 00668251

Extension, Brake

$27.99

$

Usually ships in 4-12 days

0

3

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00619400

Rod, Parking Brake Set Right Hand

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 06714800

Pin, Hair, Endries #25
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00619500

Weldment, Pivot (SN 000101 - 000499)

Note: (SN 000101 - 000499)

$

$

Not available

Gravely 00962800

Weldment, Pivot RH (SN 000500 and up)

Note: (SN 000500 and up)

$

$

Not available

8

Gravely 06430300

Washer, Flat-Steel .656 x 1.250 x .100

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.49

$

In Stock, Qty 8

0

10

Gravely 07414400

Screw, Tapping .31-18 x .75 Hex Washer Head Thread
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

11

Gravely 05957400

Bolt, Hex .31-18X1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

12

Gravely 05534700

Bushing, Flanged

$21.99

$

In Stock, only 2 left!

0

13

Gravely 00452600

Motor, Wheel TG 0280

$1034.99

$

Usually ships in 4-12 days

0

14

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75

$17.99

$

In Stock, only 3 left!

0

16

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00497851

Weldment, Parking Brake Hold Down

$

$

Not available

18

Gravely 00604800

Rod, O.C. Left Hand Brake

$77.99

$

Usually ships in 4-12 days

0

19

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00698600

Trunnion, Pivot .38

$90.99

$

Usually ships in 4-12 days

0

21

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083 (SN 000101 - 499)
(Superseded to 06401023)

Note: (SN 000101 - 499)

$1.49

$

In Stock, Qty 20+

0

Gravely 05500041

Bushing, Flange .39 x .53 x .38 x 1.00 (SN 000500 and up)

Note: (SN 000500 and up)

$

$

Not available

22

Gravely 08300034

Spring, Compression (SN 000101 - 499)

Note: (SN 000101 - 499)

$

$

Not available

Gravely 08300105

Spring, Compression (SN 000500 and up)

Note: (SN 000500 and up)

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 05503100

Bushing, Flange .500 x .750 x .750 x 1.000 Bracket

$9.99

$

In Stock, only 4 left!

0

24

Gravely 00491900

Weldment, Parking Brake

$155.99

$

Usually ships in 4-12 days

0

25

Gravely 00679500

Rod, Brake Link .375-24 UNF

$

$

Not available

26

Gravely 00504900

Weldment, Brake Lever-Left Hand

$

$

Not available

27

Gravely 00679600

Trunnion, .375-24 UNF

$21.99

$

Usually ships in 4-12 days

0

28

Gravely 00476300

Spacer, Neutral Latch

$16.99

$

Usually ships in 4-12 days

0

29

Gravely 06536900

Nut, Jam Center-Lock .75-16

$5.99

$

In Stock, only 3 left!

0

30

Gravely 00596500

Latch, Brake Lock

$32.99

$

Usually ships in 4-12 days

0

31

Gravely 03606600

Switch, Double Pole N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

32

Gravely 06418100

Washer, Hardened-Steel-THR.515 x .97 x .062

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 00594200

Rod, O.C. Right Hand Brake

$40.99

$

Usually ships in 4-12 days

0

35

Gravely 05518400

Bushing, Flange .762 x 1.0 x .580 x 1.48 Nylon

$4.99

$

In Stock, Qty 20+

0

36

Gravely 07000036

Push Nut, .745 Shaft

$

$

Not available

37

Gravely 00616900

Rod, Parking Brake Set Left Hand

$71.99

$

Usually ships in 4-12 days

0

38

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

39

Gravely 06536000

Nut, Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 07157500

Tire/Wheel Assembly 24 x 12-12 (990100, 101)
(Superseded to 59210100)

Note: (990100, 101)

$319.99

$

Usually ships in 4-12 days

0

Gravely 07100329

Right Hand Bar Tire, 24 x 12-12 (990102)
(Superseded to 59101100)

Note: (990102)

$

$

Not available

Gravely 07100328

Left Hand Bar Tire, 24 x 12-12 (990102)
(Superseded to 59101200)

Note: (990102)

$

$

Not available

41

Gravely 07067700

Bolt, Lug Grade 8; .50-20 UNF x 1.38 LG; 60 Degree
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

42

Gravely 07523000

Grip, Handle

$5.99

$

Usually ships in 4-12 days

0

43

Gravely 05500112

Bushing, Split .75 x .81 x .20THK

$5.99

$

Usually ships in 4-12 days

0

44

Gravely 06413400

Washer, Hardened-Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

45

Gravely 06608700

Key, Woodruff .19 x .75 HRD#9

$1.49

$

In Stock, Qty 20+

0

46

Gravely 05709200

Ring, Retaining-External .625 x .050

$2.49

$

Usually ships in 4-12 days

0

47

Gravely 00619500

Weldment, Pivot (SN 000101 - 000499)

Note: (SN 000101 - 000499)

$

$

Not available

Gravely 00962700

Weldment, Pivot LH (SN 000500 and up)

Note: (SN 000500 and up)

$90.99

$

Usually ships in 4-12 days

0

48

Gravely 05981600

Bolt, Hex .31-18 x 1.50 Gr 8

$3.49

$

In Stock, Qty 6

0

49

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
