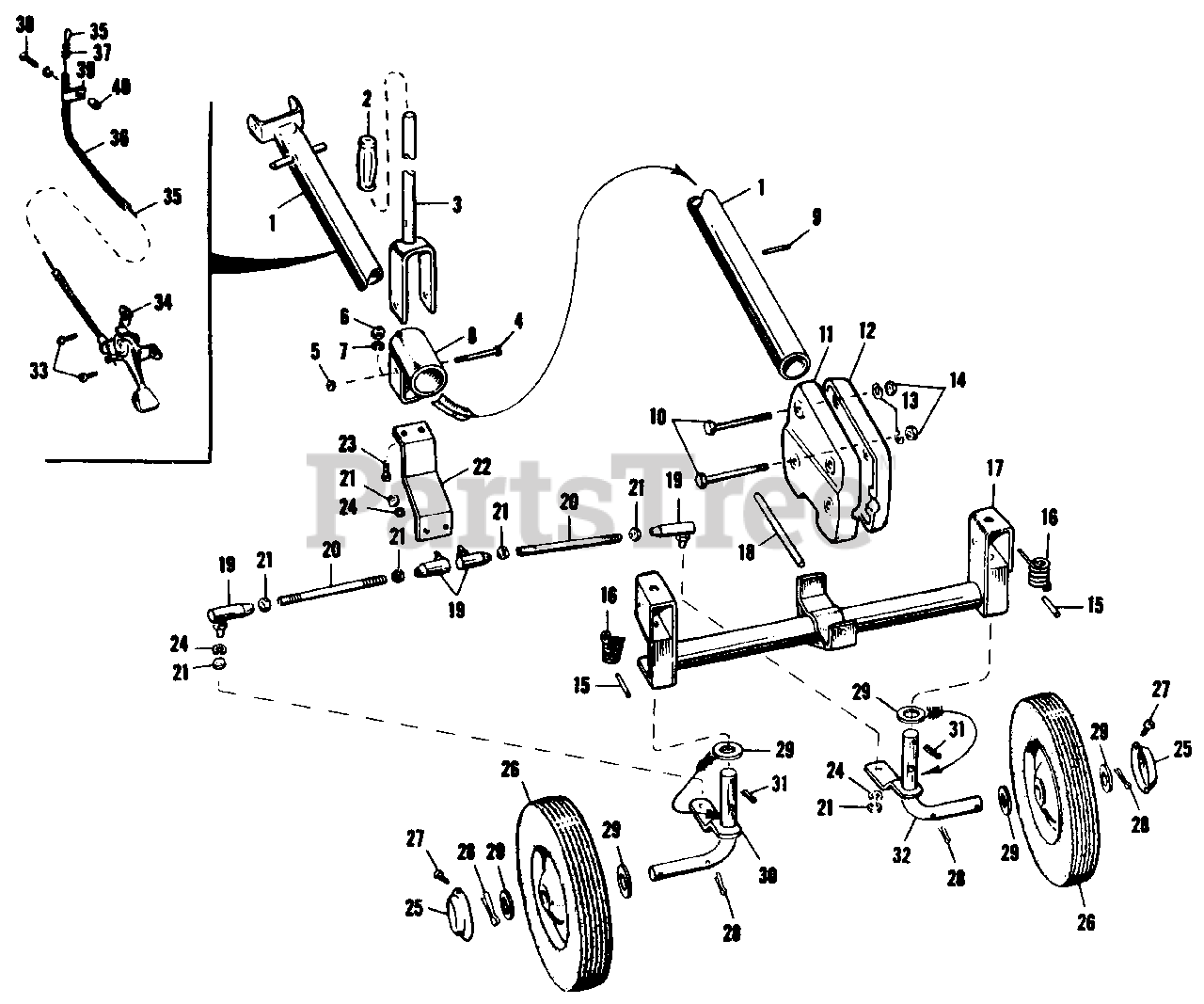

990086 - Simplicity Wonderboy Rear-Engine Riding Mower FRONT AXLE AND FRONT SUPPORT Parts Diagram

Wonderboy Rear-Engine Riding Mower

FRONT AXLE AND FRONT SUPPORT Parts Diagram

  • Title

1

Simplicity 121024

Frame Assembly, Front

$

$

Not available

2

Simplicity 2153043

Grip Handle

$

$

Not available

3

Simplicity 121018

Handle Assembly

$

$

Not available

4

Screw Hex Hd. Cap 3/8"-16 x 3 1/4"

$

$

Not available

5

Lock Nut Hex 3/8"-16

$

$

Not available

6

Nut, Full Hex 3/8"-16

$

$

Not available

7

Lock Washer

$

$

Not available

8

Simplicity 121021

Pivot Assembly Steering

$

$

Not available

9

Pln Roll 7/32" x 1 Long

$

$

Not available

10

Screw Hex Cap, 3/8"-16 x 3 1/4"

$

$

Not available

11

Simplicity 121015

Support, Front, R.H.

$

$

Not available

12

Simplicity 121014

Support, Front, L.H.

$

$

Not available

13

Lock Washer 3/8"

$

$

Not available

14

Nut, Full Hex, 3/8"-16

$

$

Not available

15

Pln Roll 5/16" x 1 1/4"

$

$

Not available

16

Simplicity 2121011SM

Spring Torsion

$50.99

$

Usually ships in 2-12 days

0

17

Simplicity 121001

Axle Assembly Front

$

$

Not available

18

Simplicity 121016

Pin Pivot

$

$

Not available

19

Simplicity 121127

Joint Ball

$

$

Not available

20

Simplicity 121013

Rod, Tie

$

$

Not available

21

Nut, Full Hex 3/8"-24

$

$

Not available

22

Simplicity 121017

Arm, Lever

$

$

Not available

23

Screw, Hex Cap, 3/8"-16 x 7/8"

$

$

Not available

24

Lock Washer, 3/8"

$

$

Not available

25

Simplicity 121136

Hub Cap, Front

$

$

Not available

26

Simplicity 121012

Wheel, Front, w/Tire

$

$

Not available

27

Screw, Self Tapping #10-24 x 1/2"

$

$

Not available

28

Pin Cotter 5/32" x 1 1/4"

$

$

Not available

29

Simplicity G-A12

Washer

$

$

Not available

30

Simplicity 121007

Spindle Assembly, R.H.

$

$

Not available

31

Pln, Cotter, 5/32" x 1

$

$

Not available

32

Simplicity 121010

Spindle Assembly, L.H.

$

$

Not available

33

Screw, Rd. Hd., #10-24 x 1/2"

$

$

Not available

34

Simplicity 118044

Throttle Lever Control

$

$

Not available

35

Simplicity 121077

Throttle Wire

$

$

Not available

36

Simplicity 121076

Throttle Cable

$

$

Not available

37

Simplicity 121122

Spring, Throttle Wire

$

$

Not available

38

Screw and Lock Washer Assembly, 10-32 x 7/8

$

$

Not available

39

Simplicity 3851

Clamp Cable

$

$

Not available

40

Simplicity 3864

Spacer

$

$

Not available
