990086 - Simplicity Wonderboy Rear-Engine Riding Mower CENTRAL LINKAGE AND POWER TAKE-OFF Parts Diagram

Wonderboy Rear-Engine Riding Mower

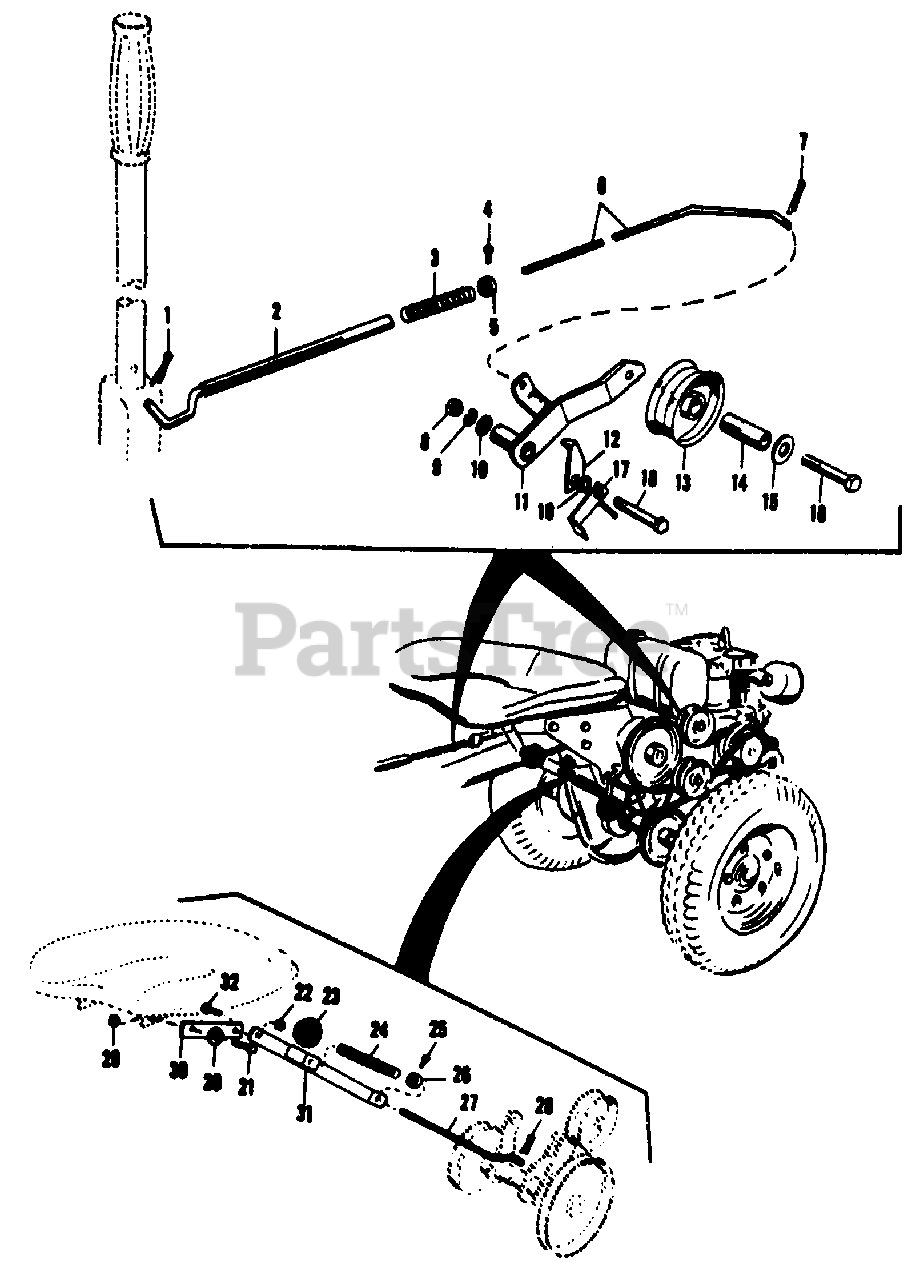

CENTRAL LINKAGE AND POWER TAKE-OFF Parts Diagram

  • Title

1

Pin, Cotter, 5/32 x 3/8"

$

$

Not available

2

Simplicity 121030

Rod. Front Clutch Assembly

$

$

Not available

3

Simplicity S2A45

Spring

$

$

Not available

4

Set Screw, Sq. Hd. 1/4"-20 x 3/8"

$

$

Not available

5

Simplicity S2A-22A

Collar Set

$

$

Not available

6

Simplicity 121033

Rod, Rear Clutch

$

$

Not available

7

Pin, Cotter, 3/32" x 3/8"

$

$

Not available

8

Nut, Full Hex. 3/8"-16

$

$

Not available

9

Washer Lock, 3/8"

$

$

Not available

10

Washer, Plain 3/8"

$

$

Not available

11

Simplicity 121034

Lever Assembly Idler

$

$

Not available

12

Simplicity 121038

Stop Lever

$

$

Not available

13

Simplicity S1-AX21

Pulley Idler

$

$

Not available

14

Simplicity S2-A20

Race, Inner Bearing

$

$

Not available

15

Washer, Plain

$

$

Not available

16

Screw, Hex Cap, 3/8"-16 x 2"

$

$

Not available

17

Simplicity 121135

Guide Belt

$

$

Not available

18

Screw, Hex Cap, 3/8"-16 x 2 1/4"

$

$

Not available

19

Simplicity 121044

Pin, Lock

$

$

Not available

20

Washer, Plain, 3/8"

$

$

Not available

21

Screw, Hex Cap, 3/8"-16 x 3/4"

$

$

Not available

22

Lock Nut, 3/8"-16

$

$

Not available

23

Simplicity D-A50

Knob

$

$

Not available

24

Simplicity S2A45

Spring

$

$

Not available

25

Screw, Sq. Hd. Set, 1/4"-20 x 3/8"

$

$

Not available

26

Simplicity S2A-22A

Collar Set

$

$

Not available

27

Simplicity 121052

Rod, Clutch

$

$

Not available

28

Pin, Cotter 3/32" x 3/8"

$

$

Not available

29

Nut, Lock, 3/8"-16

$

$

Not available

30

Simplicity 121053

Lever

$

$

Not available

31

Simplicity GSAX3

Guide Assembly

$

$

Not available

32

Screw, Hex Cap, 3/8"-16 x 1"

$

$

Not available
