990085 - Simplicity Dump Cart DUMP CART Parts Diagram

Dump Cart

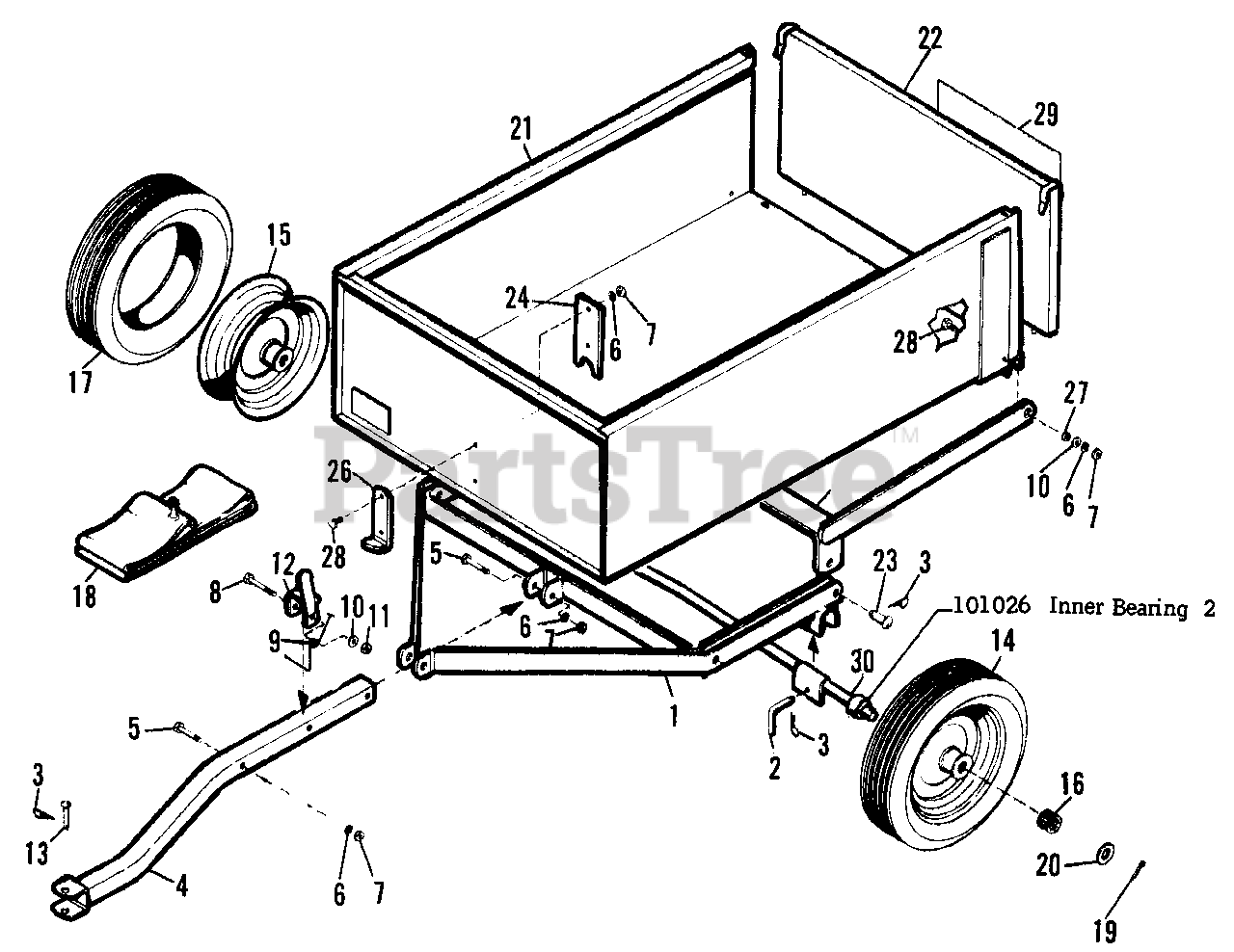

DUMP CART Parts Diagram

  • Title

1

Simplicity 2102035SM

Frame Assembly

$

$

Not available

2

Simplicity 8011204

Pin

$

$

Not available

3

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2102037SM

Tongue Assembly

$

$

Not available

5

Simplicity 2705003

Hex Capscrew 3/8"-16 x 2-1/4" lg.

$

$

Not available

6

Simplicity 2720002

Lock Washer 3/8"

$

$

Not available

7

Simplicity 2717003

Hex Nut, Full 3/8"-16

$

$

Not available

8

Simplicity 2715072

Hex Capscrew, 3/8"-16 x 2-3/4" lg.

$

$

Not available

9

Simplicity 2102075SM

Torsion Spring

$14.99

$

Usually ships in 2-12 days

0

10

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

11

Simplicity 2717510

Hex Nut, Full 3/8"-16

$

$

Not available

12

Simplicity 2102051SM

Box Catch Clevis Assembly

$

$

Not available

13

Simplicity 2105249SM

Pin

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 2170320

Wheel & Tire Assembly

$

$

Not available

15

Simplicity 2170319

Wheel

$

$

Not available

16

Simplicity 2156316SM

Bearing

$11.99

$

In Stock, only 4 left!

0

17

Simplicity 102052

Tire

$

$

Not available

18

Simplicity 2153038SM

Tube

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 2722007

Cotter Pin 3/16"-1-1/2" lg.

$

$

Not available

20

Simplicity 2719005

Plain Washer 3/4"

$

$

Not available

21

Simplicity 102002

Trailer Body

$

$

Not available

22

Simplicity 102003

End Gate

$

$

Not available

23

Simplicity 2102004SM

Pivot Pin

$9.49

$

In Stock, only 3 left!

0

24

Simplicity 2102005SM

Box Guide Plate

$12.99

$

Usually ships in 2-12 days

0

25

Simplicity 2102024SM

Box Pivot Assembly

$

$

Not available

26

Simplicity 2102040SM

Box Catch Plate

$23.99

$

Usually ships in 2-12 days

0

27

Simplicity 1729270SM

Bushing

$

$

Not available

28

Simplicity 2705005

Hex Capscrew 3/8"-16 x 1" lg.

$

$

Not available

29

Simplicity 2153166

Decal

$

$

Not available

30

Simplicity 2102027

Axle Assembly

$

$

Not available
