990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Master Zero-Turn Mower

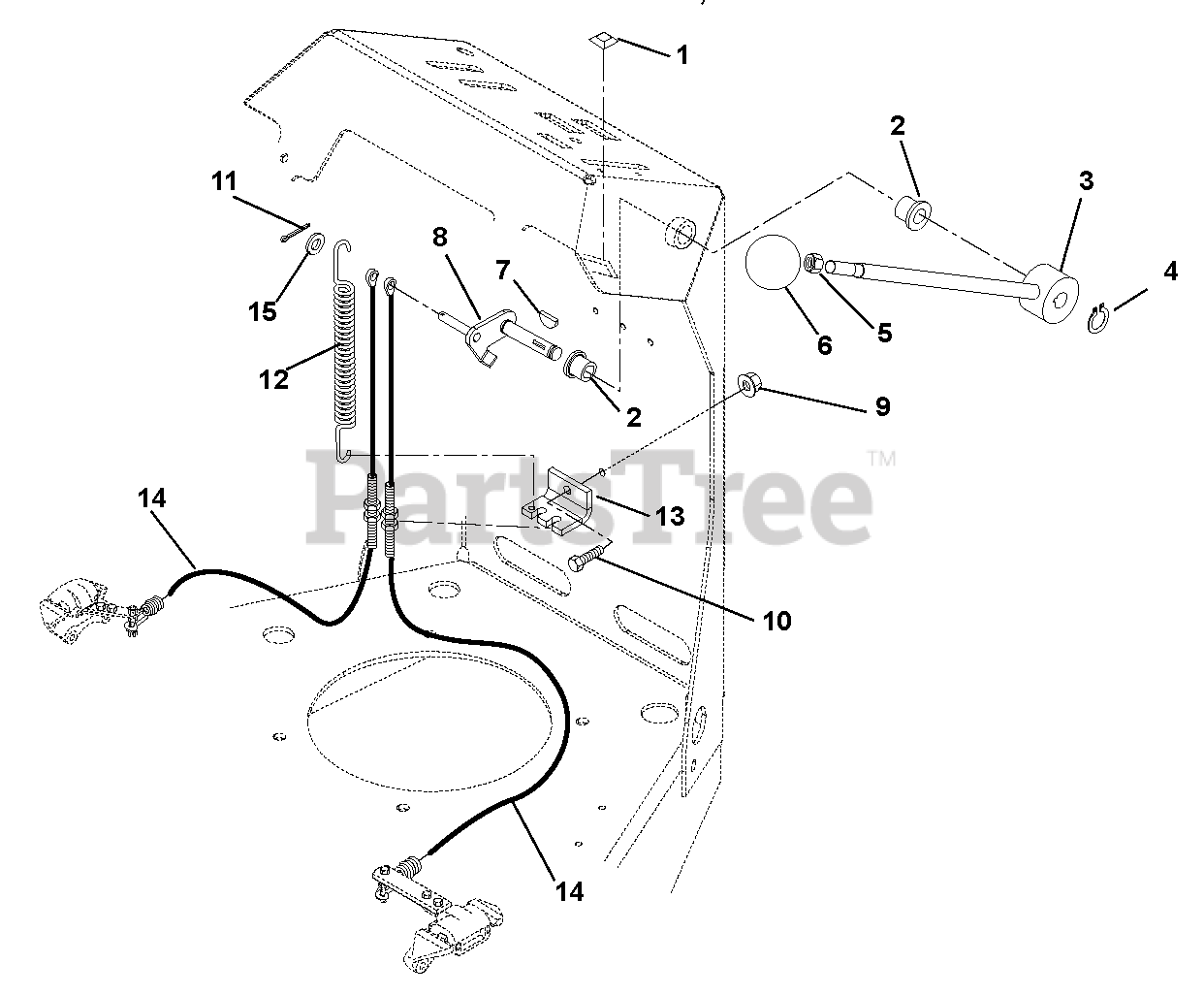

Parking Brake Parts Diagram

  • Title

1

Gravely 07525100

Stop

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 05501001

Bushing, Flange .50 x .75 x .75 x .125

$4.99

$

In Stock, Qty 20+

0

3

Gravely 04912600

Weldment, Parking Brake Lever

$122.99

$

Usually ships in 4-12 days

0

4

Gravely 05717100

Ring, Retaining External .50 x .05

$2.49

$

In Stock, Qty 8

0

5

Gravely 06535900

Nut, Hex Jam .38-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07505200

Knob, Steering Lock

$20.99

$

In Stock, only 1 left!

0

7

Gravely 06608400

Key, Woodruff .13 x .63

$2.99

$

In Stock, only 3 left!

0

8

Gravely 04912500

Weldment, Shaft Brake Activation

$93.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06706900

Pin, Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

12

Gravely 08300528

Spring, Extension
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

13

Gravely 04911200

Bracket, Cable

$

$

Not available

14

Gravely 06947000

Cable, Parking Brake

$75.99

$

In Stock, only 1 left!

0

15

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
