990024 (PM 320) - Gravely Pro-Master Zero-Turn Mower (SN: 000101 & Above) Frame, Sulky Frame and Seat Parts Diagram

Pro-Master Zero-Turn Mower

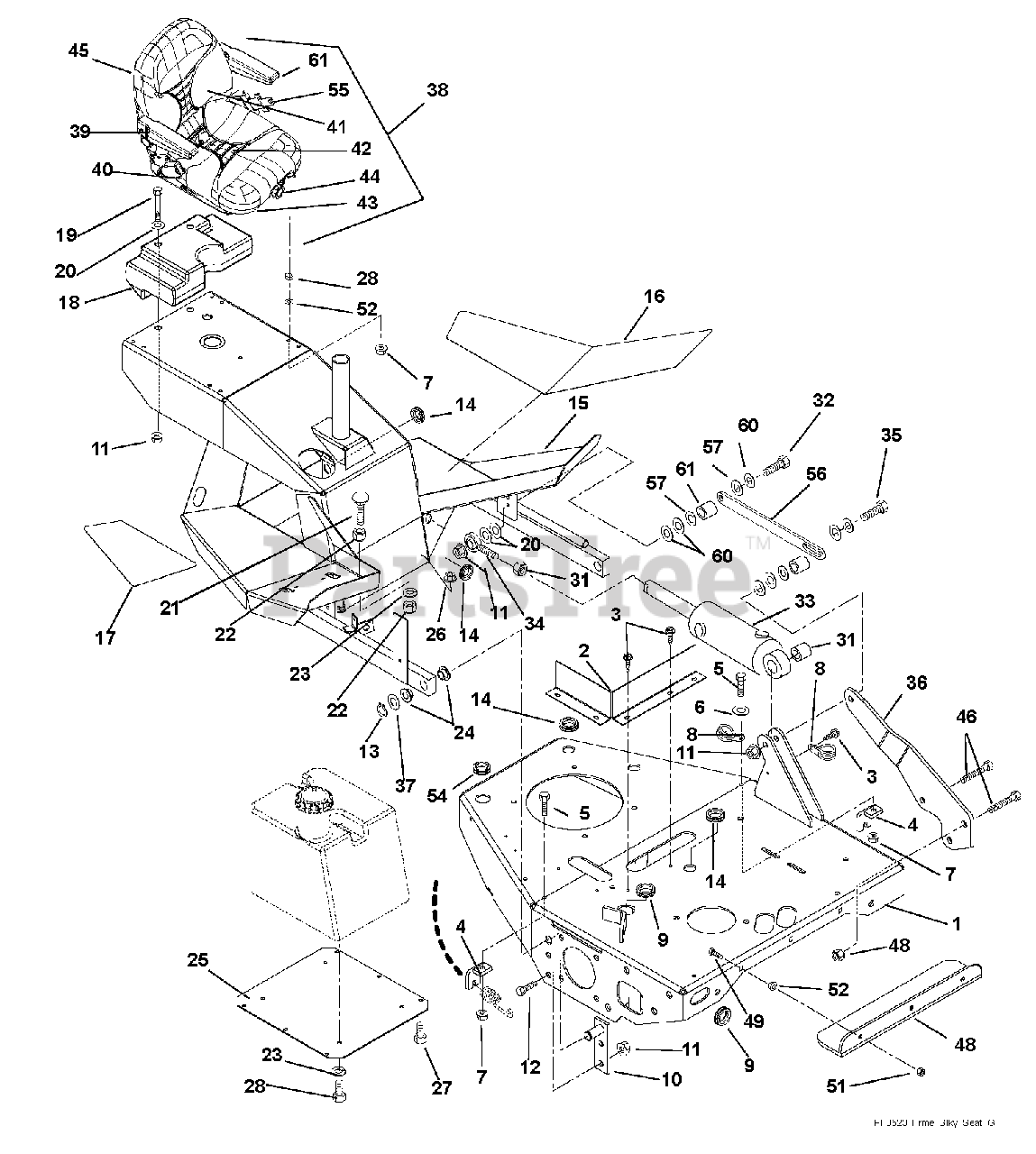

Frame, Sulky Frame and Seat Parts Diagram

  • Title

1

Gravely 03295453

Weldment, Frame

$775.99

$

Usually ships in 4-12 days

0

2

Gravely 08897551

Heat Shield

$45.99

$

Usually ships in 4-12 days

0

3

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head Grade 5
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 08968453

Bracket, Cable

$

$

Not available

5

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06900437

Clamp, Steel 1.0

$

$

Not available

9

Gravely 07536800

Grommet 1.25

$12.99

$

Usually ships in 4-12 days

0

10

Gravely 03928400

Weldment, Pivot-Sulky

$61.99

$

Usually ships in 4-12 days

0

11

Gravely 06543600

Nut, Locking-Top-Flange .50-13 (990024)
(Superseded to 06500907)

Note: (990024)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543600

Nut, Locking-Top-Flange .50-13 (990025)
(Superseded to 06500907)

Note: (990025)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05962000

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 05714600

Ring, Retaining-External .689 x .077

$2.49

$

In Stock, Qty 5

0

14

Gravely 07530600

Grommet .75 x 1.06 x 1.38

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 04297053

Weldment, Sulky

$

$

Not available

16

Gravely 04909900

Pad, Left Hand Floorboard

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 04910000

Pad, Right Hand Floorboard

$

$

Not available

18

Gravely 01542200

Weight, Rear (990024)

Note: (990024)

$262.99

$

Usually ships in 4-12 days

0

Gravely 04912251

Weight, Rear (990025)

Note: (990025)

$

$

Not available

19

Gravely 05966600

Bolt, Hex .50-13 x 2.50 Grade 5 YWZC (990024)
(Superseded to 05901712)

Note: (990024)

$3.99

$

In Stock, only 3 left!

0

Gravely 05961900

Bolt, Hex .50-13 x 4.00 Grade 5 YWZC (990025)
(Superseded to 05901734)

Note: (990025)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095 (990024)
(Superseded to 06401015)

Note: (990024)

$0.99

$

In Stock, Qty 20+

0

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095 (990025)
(Superseded to 06401015)

Note: (990025)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5 (990024)
(Superseded to 06200233)

Note: (990024)

$1.49

$

In Stock, Qty 19

0

22

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

23

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05518400

Bushing, Flange-Nylon .762 x 1.00 x .58 x 1.48

$4.99

$

In Stock, Qty 20+

0

25

Gravely 04909453

Plate, Bottom

$45.99

$

Usually ships in 4-12 days

0

26

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

30

Gravely 06539500

Nut, Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 09215200

Bushing, .516 x 1.00 x 1.05

$34.99

$

Usually ships in 4-12 days

0

32

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5 (990024)
(Superseded to 05901835)

Note: (990024)

$3.49

$

In Stock, Qty 5

0

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5 YWZC (990025)
(Superseded to 05901937)

Note: (990025)

$4.99

$

In Stock, only 2 left!

0

33

Gravely 04909800

Cylinder, Platform Lift

$635.99

$

Usually ships in 4-12 days

0

34

Gravely 08959600

Assembly, Rod End RH

$38.99

$

Usually ships in 4-12 days

0

35

Gravely 05953500

Bolt, Hex .50-13 x 2.75 Grade 5 (990024)
(Superseded to 05901836)

Note: (990024)

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 04913153

Support, Cylinder Brace

$43.99

$

Usually ships in 4-12 days

0

37

Gravely 06413400

Washer, Hardened Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

38

Gravely 04052900

Seat, Suspension, with Seat Belt, Light Gray
(Superseded to 09680600)

$930.99

$

In Stock, only 1 left!

0

39

Gravely 59210400

Kit, Armrest Assembly RH

$129.99

$

Usually ships in 4-12 days

0

40

Gravely 59208900

Kit, Seat Cushion, Light Gray

$258.99

$

In Stock, only 3 left!

0

41

Gravely 59208800

Kit, Seatback Cushion, Light Gray

$423.99

$

Usually ships in 4-12 days

0

42

Gravely 59207800

Kit, Spring and Saddle

$175.99

$

Usually ships in 4-12 days

0

43

Gravely 59207900

Kit, Seat Slide

$

$

Not available

44

Gravely 59208000

Kit, Seat Knob

$

$

Not available

45

Gravely 59208100

Kit, Seat Back Panel

$175.99

$

Usually ships in 4-12 days

0

46

Gravely 05959300

Bolt-Hex .62-11 x 1.75 Grade 5

$

$

Not available

47

Gravely 06540700

Nut-Nylon Locking .625-11

$3.99

$

In Stock, only 2 left!

0

48

Gravely 04913253

Guard, Hose

$7.99

$

Usually ships in 4-12 days

0

49

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

50

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

51

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

52

Gravely 07027600

Nut, Push .250 x .50

$2.49

$

In Stock, Qty 9

0

53

Gravely 59210500

Kit, Armrest Assembly LH

$129.99

$

Usually ships in 4-12 days

0

54

Gravely 07500036

Grommet-2.12 ID Buna-N

$

$

Not available

55

Gravely 59211400

Kit, Retractable Safety Belt

$146.99

$

Usually ships in 4-12 days

0

56

Gravely 03396551

Lever Arm (990025)

Note: (990025)

$

$

Not available

57

Gravely 06439000

Washer, Flat Steel .812 x 1.50 x .135 (990025)
(Superseded to 06401140)

Note: (990025)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 06400240

Washer, 1.25 x .531 x .25 THK (990025)

Note: (990025)

$

$

Not available

59

Gravely 05965800

Bolt, Hex .50-13 x 3.50 Grade 5 YWZ (990025)
(Superseded to 05901937)

Note: (990025)

$4.99

$

In Stock, only 2 left!

0

60

Gravely 06441900

Washer, Flat-Steel .531 x 1.06 x .095 (990025)
(Superseded to 06401015)

Note: (990025)

$0.99

$

In Stock, Qty 20+

0

61

Gravely 05500417

Bushing (990025)

Note: (990025)

$11.99

$

Usually ships in 4-12 days

0

$

$

Not available

Fuel Vent Hose Guard (Not Shown)

Fuel Vent Hose Guard (Not Shown)

Note: (Not Shown)

$

$

Not available

n/a

Gravely 06225800

Bolt, Round Head Square Neck (FT) .31-18 x 2.0 G5 YZ

Note: (FT) .31-18 x 2.0 G5 YZ

$3.99

$

Usually ships in 4-12 days

0

n/a

Gravely 06908200

Clamp, cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

n/a

Gravely 06545400

Nut, Nylon Locking Flange .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

n/a

Gravely 04576253

Vent Hose Guard, Red

$

$

Not available
