990023 - Simplicity 6 1/2" Plow Plow Group - 6 1/2" & 8" (3557I01) Parts Diagram

6 1/2" Plow

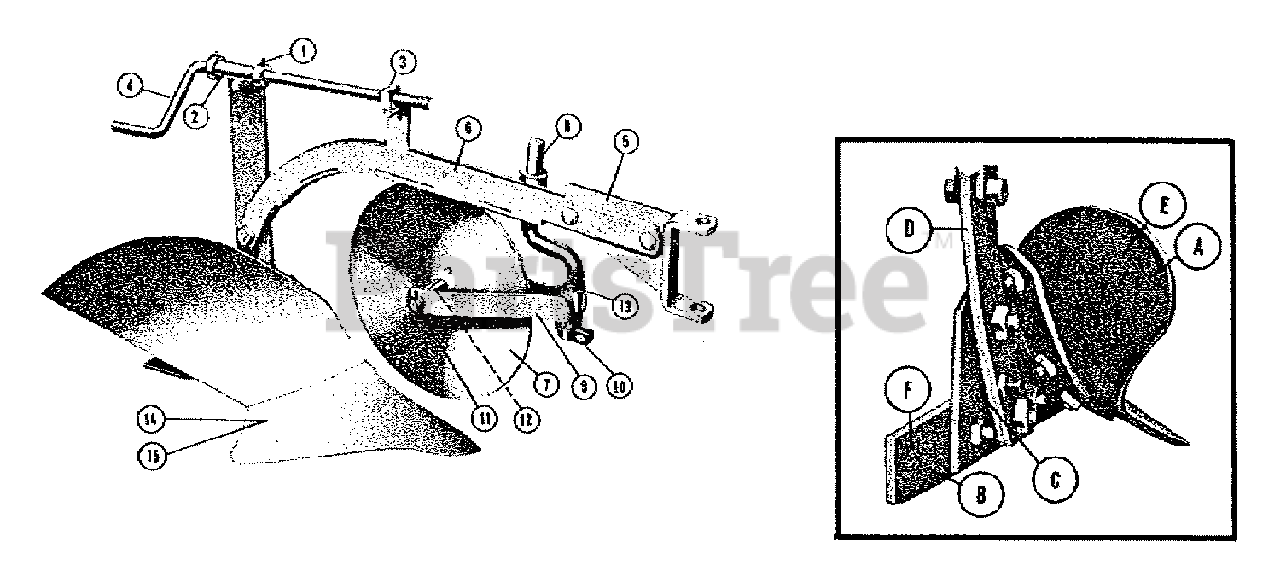

Plow Group - 6 1/2" & 8" (3557I01) Parts Diagram

  • Title

1

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

$

$

Not available

2

Simplicity 8031501

DEPTH SCREW BEARING ASSEMBLY

$

$

Not available

3

Simplicity 8031502

DEPTH SCREW ADJUSTMENT NUT ASSEMBLY

$

$

Not available

4

Simplicity 8032001

DEPTH SCREW

$

$

Not available

5

Simplicity 8032501

BEAM END ASSEMBLY

$

$

Not available

6

Simplicity 8032502

PLOW BEAM ASSEMBLY

$

$

Not available

7

Simplicity 112040

COULTER WITH BUSHINGS

$

$

Not available

8

Simplicity 112001

STANDARD, Coulter

$

$

Not available

9

Simplicity 112031

FORK ASSEMBLY

$

$

Not available

10

Simplicity 8071506

STOP ASSEMBLY

$

$

Not available

11

Simplicity 112033

AXLE, Bolt

$

$

Not available

12

Simplicity 112032

BUSHING

$

$

Not available

13

Simplicity 112009

WASHER

$

$

Not available

14

Simplicity 112011

6 1/2" PLOW SHARE

$

$

Not available

15

Simplicity 112016

8" PLOW SHARE

$

$

Not available

A

Simplicity 112012

MOLDBOARD - 6 1/2" Plow

$

$

Not available

B

Simplicity 112013

MOLDBOARD - 8" Plow

$

$

Not available

C

Simplicity 112014

FROG

$

$

Not available

D

Simplicity 112015

STANDARD

$

$

Not available

E

Simplicity 112017

MOLDBOARD -8" Plow

$

$

Not available

F

Simplicity 112018

LANDSIDE - 8" Plow

$

$

Not available

-

1/8" x 1 1/4" Cotterpin

$

$

Not available

-

5/16"-18 x 3/4" Set Screw

$

$

Not available
