990023 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kawasaki (SN: 002500 & Above) Wiring Diagram Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kawasaki

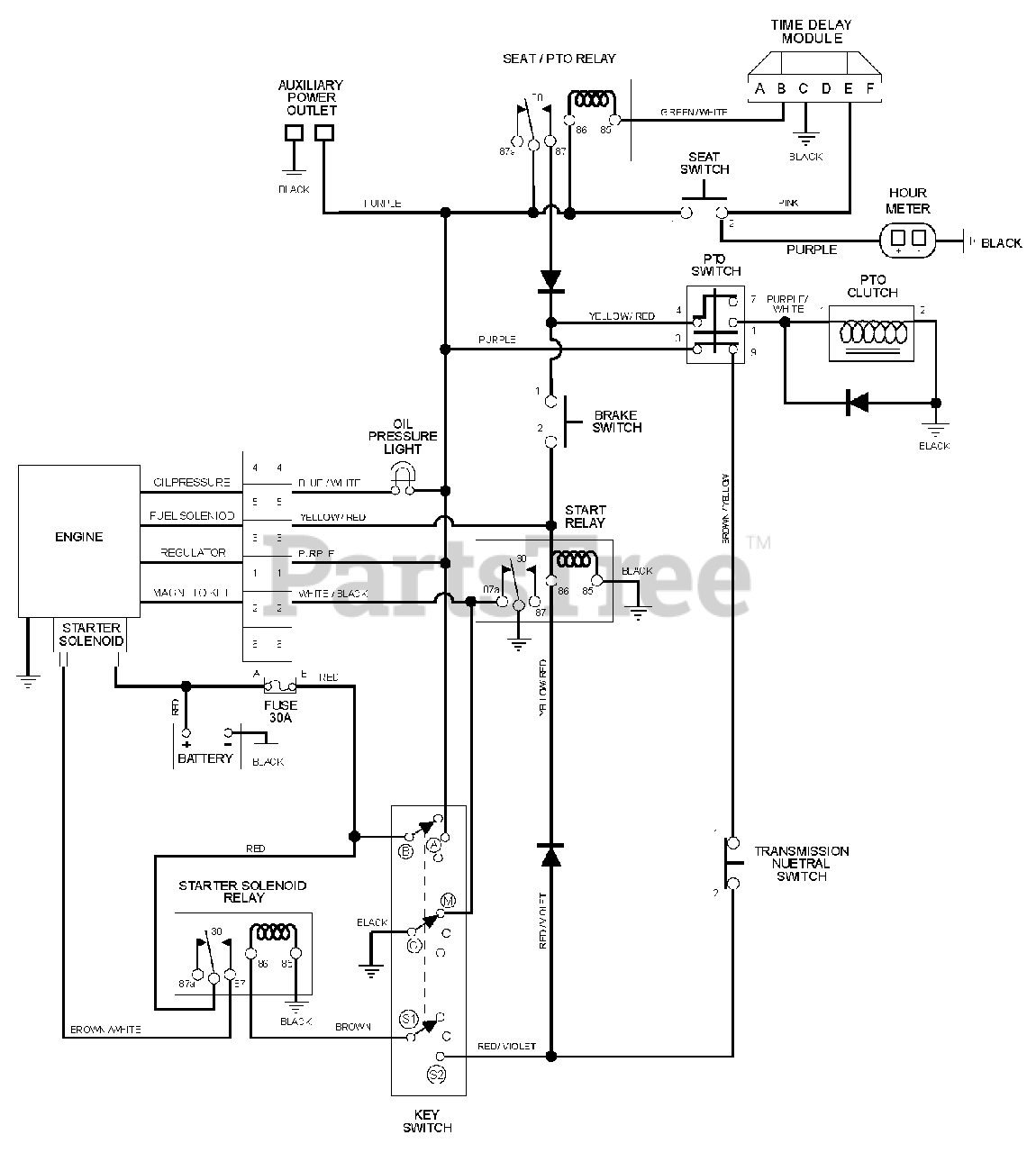

Wiring Diagram Parts Diagram

  • Title
