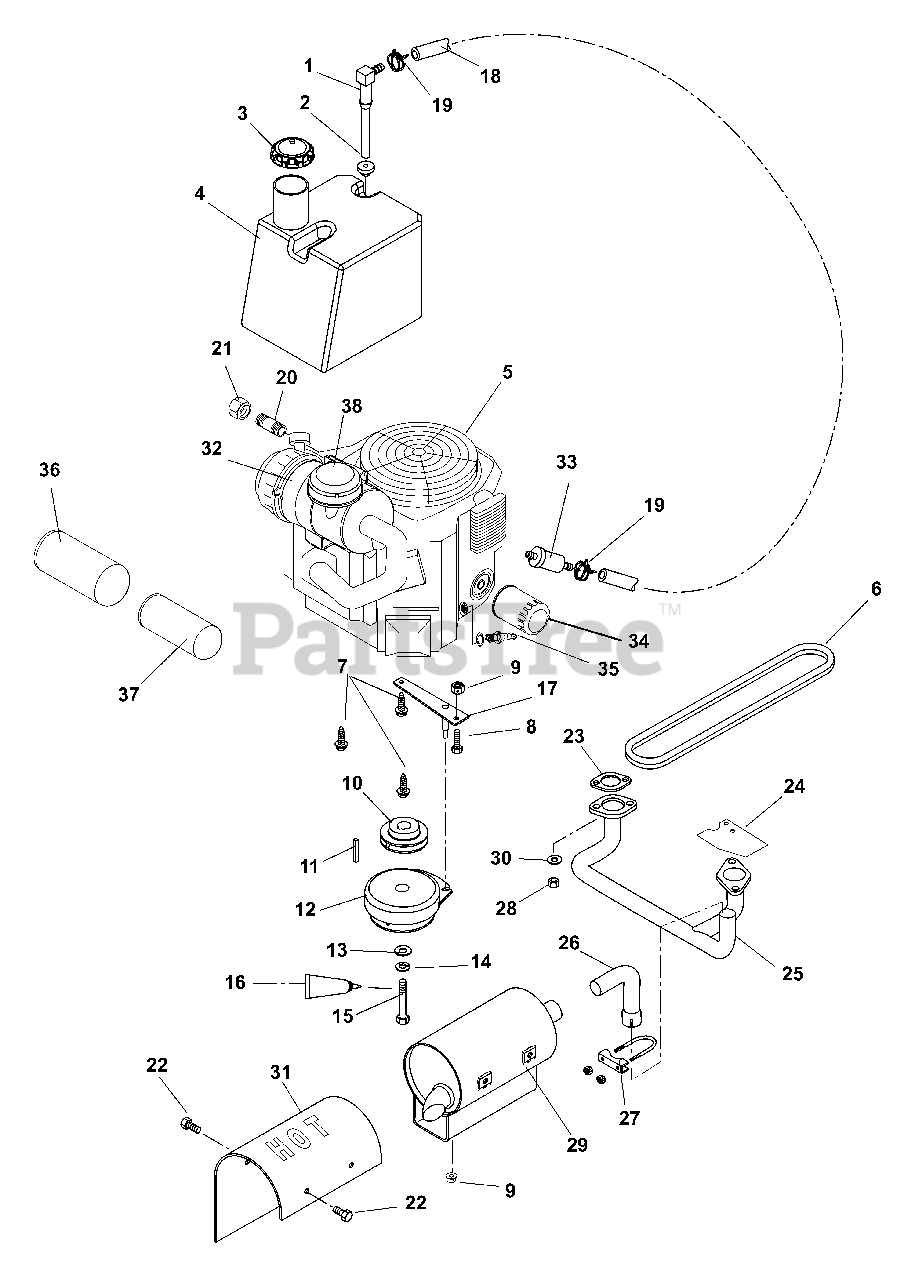

990022 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 25hp Kawasaki (SN: 000101 & Above) Engine, Clutch, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kawasaki

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

2

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

4

Gravely 09098400

Tank, Fuel

$

$

Not available

5

Gravely 08268100

Engine, 27HP Kohler 6-Pin (021)

Note: (021)

$

$

Not available

5

Gravely 08268300

Engine, 25HP Kawasaki (022)

Note: (022)

$

$

Not available

6

Gravely 052974

Hydraulic System V-Belt A-Section 24.90 x .500 /.031
(Superseded to 07224300)

$42.99

$

In Stock, only 2 left!

0

7

Gravely 07414100

Screw-Tapping Hex-Washer-Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

9

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07325300

Pulley-4.46 Dia. x 1.12 Bore

$83.99

$

In Stock, only 1 left!

0

11

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09266700

Electric Clutch
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

13

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

14

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 00902500

Loc-Tite™ 271 (Red)

Note: (Red)

$

$

Not available

17

Gravely 09099600

Anchor-Clutch

$102.99

$

Usually ships in 4-12 days

0

18

Gravely 021134

Gas Line-Bulk 1/4" ID (021)
(Superseded to 03278100)

Note: (021)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 021134

Gas Line-Bulk 1/4" ID (022)
(Superseded to 03278100)

Note: (022)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 10

0

20

Gravely 07025000

Nipple, Pipe .38 x 6.00 Unfinished Steel

$

$

Not available

21

Gravely 03563600

Pipe Cap

$

$

Not available

22

Gravely 05971300

Bolt, Hex M5 - .8 x 8 mm

$

$

Not available

23

Gravely 044390

Gasket-Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

24

Gravely 09066500

Heat Deflector (021)

Note: (021)

$

$

Not available

25

Gravely 04940300

Manifold-Kohler CV18-27 (021)

Note: (021)

$

$

Not available

25

Gravely 04940400

Manifold-Kawasaki, PM310 (022)

Note: (022)

$

$

Not available

26

Gravely 04940500

Tube, Manifold

$

$

Not available

27

Gravely 07067900

U-Bolt, 1/4-20 x 1.50

$

$

Not available

28

Gravely 06500001

Nut-Hex M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 18

0

29

Gravely 09065600

Muffler (Includes 09066300 Heat Shield)

Note: (Includes 09066300 Heat Shield)

$

$

Not available

30

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$

$

Not available

32

Gravely 09257500

Air Cleaner Assembly
(Superseded to 03782600)

$177.99

$

Usually ships in 4-12 days

0

33

Gravely 21410800

Fuel Filter (022)
(Superseded to 21541500)

Note: (022)

$8.99

$

In Stock, Qty 20+

0

33

Gravely 21539500

Fuel Filter (021)

Note: (021)

$12.99

$

In Stock, Qty 20+

0

34

Gravely 21397200

Filter, Oil- Kohler CV20 (021)
(Superseded to 20715100)

Note: (021)

$18.99

$

In Stock, only 1 left!

0

34

Gravely 21535800

Filter, Oil- Kawasaki (022)
(Superseded to 49065-0724)

Note: (022)

$18.99

$

In Stock, Qty 20+

0

35

Gravely 21525900

Spark Plug (021)
(Superseded to 21541700)

Note: (021)

$4.49

$

In Stock, Qty 20+

0

35

Gravely 21536100

Spark Plug (022)

Note: (022)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

37

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

38

Gravely 09408700

Cap, Air Cleaner Intake

$51.99

$

In Stock, only 1 left!

0

39

Gravely 03820900

Cap, 2.5" Air Cleaner Intake

$68.99

$

In Stock, only 2 left!

0
