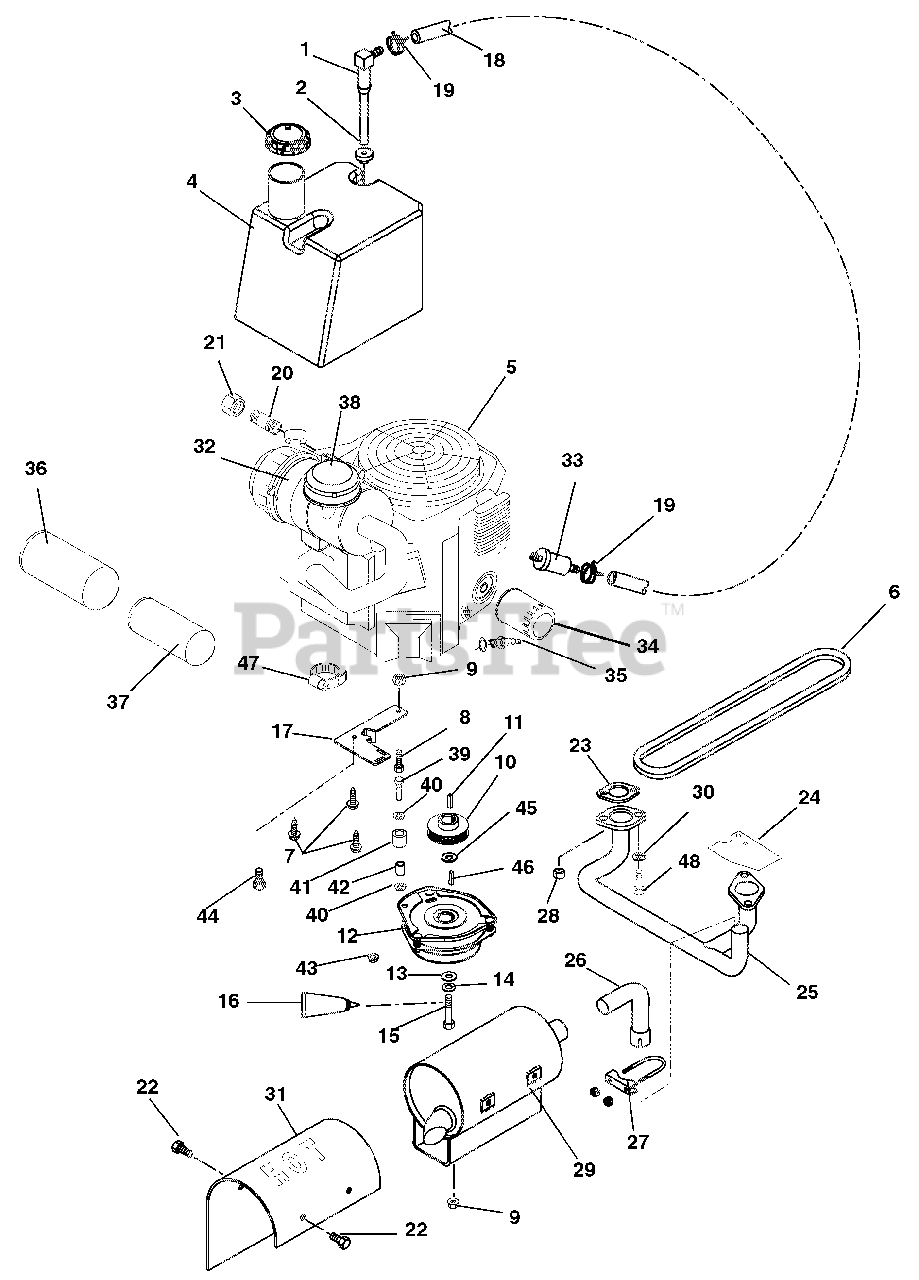

990021 (PM 320) - Gravely Pro-Master Zero-Turn Mower, 27hp Kohler (SN: 002000 & Above) Engine, Clutch, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 27hp Kohler

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

2

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

4

Gravely 09098400

Tank, Fuel

$

$

Not available

5

Gravely 08268100

Engine, 27HP Kohler 6-Pin (021)

Note: (021)

$

$

Not available

Gravely 08200327

Engine, 27HP Kawasaki (023)

Note: (023)

$

$

Not available

6

Gravely 07224300

Belt, HA 59.80 Raw Laminated

$42.99

$

In Stock, only 2 left!

0

7

Gravely 07414100

Screw, Tapping Hex-Washer-Head .38-16 x 1.00 (021)
(Superseded to 07417500)

Note: (021)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5 (021)
(Superseded to 05901804)

Note: (021)

$2.99

$

In Stock, Qty 8

0

9

Gravely 06543100

Nut, Locking-Top-Flange .31-18 (021)
(Superseded to 06500904)

Note: (021)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

Nut, Locking-Top-Flange .31-18 (023)
(Superseded to 06500904)

Note: (023)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07325300

Pulley, 4.46 Dia. x 1.12 Bore

$83.99

$

In Stock, only 1 left!

0

11

Gravely 06602200

Key, Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

12

Gravely 00447100

Clutch, Electric-OGURA GT3.5-VP01R

$685.99

$

In Stock, only 1 left!

0

13

Gravely 06443600

Washer, Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 2 left!

0

14

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 EP80 (023)
(Superseded to 05902004)

Note: (023)

$5.99

$

In Stock, Qty 5

0

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 YZ EP80 (021)

Note: (021)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 00902500

Loc-Tite™ 271 (Red)

Note: (Red)

$

$

Not available

17

Gravely 03296051

Anchor, Clutch

$51.99

$

Usually ships in 4-12 days

0

18

Gravely 00095501

Gas Line-Bulk 1/4" ID (021)

Note: (021)

$

$

Not available

Gravely 00095501

Gas Line-Bulk 1/4" ID (023)

Note: (023)

$

$

Not available

19

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 10

0

20

Gravely 07025000

Nipple, Pipe .38 x 6.00 Unfinished Steel

$

$

Not available

21

Gravely 03563600

Pipe Cap

$

$

Not available

22

Gravely 05971300

Bolt, Hex M5 -.8 x 8 mm

$

$

Not available

23

Gravely 08824700

Gasket, Exhaust

$10.99

$

In Stock, only 2 left!

0

24

Gravely 09066500

Heat Deflector (021)

Note: (021)

$

$

Not available

25

Gravely 04940300

Manifold-Kohler CV18-27 (021)

Note: (021)

$

$

Not available

Gravely 01058600

Manifold-27HP Kawasaki (023)

Note: (023)

$

$

Not available

26

Gravely 04940500

Tube, Manifold

$

$

Not available

27

Gravely 07067900

U-Bolt, 1/4-20 x 1.50

$

$

Not available

28

Gravely 06500018

Nut, Locking-Top M8-1.25 (021)
(Superseded to 06500919)

Note: (021)

$2.49

$

In Stock, Qty 18

0

29

Gravely 09065600

Muffler (Includes 09066300 Heat Shield)

Note: (Includes 09066300 Heat Shield)

$

$

Not available

30

Gravely 06308600

Washer, Locking .31 x .078 (023)
(Superseded to 06300119)

Note: (023)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$

$

Not available

32

Gravely 09257500

Air Cleaner Assembly (021)
(Superseded to 03782600)

Note: (021)

$177.99

$

Usually ships in 4-12 days

0

33

Gravely 21541500

Fuel Filter (021)

Note: (021)

$8.99

$

In Stock, Qty 20+

0

Gravely 21538400

Fuel, Filter (023)
(Superseded to 21573800)

Note: (023)

$

$

Not available

34

Gravely 21397200

Filter, Oil- Kohler CV20 (021)
(Superseded to 20715100)

Note: (021)

$18.99

$

In Stock, only 1 left!

0

Gravely 21535800

Filter, Oil- Kawasaki (023)
(Superseded to 49065-0724)

Note: (023)

$18.99

$

In Stock, Qty 20+

0

35

Gravely 21525900

Spark Plug (021)
(Superseded to 21541700)

Note: (021)

$4.49

$

In Stock, Qty 20+

0

Gravely 21536100

Spark Plug (023)

Note: (023)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

37

Gravely 21536900

Element, Inner Safety

$28.99

$

In Stock, only 1 left!

0

38

Gravely 09408700

Cap, 2" Air Cleaner Intake (021)

Note: (021)

$51.99

$

In Stock, only 1 left!

0

Gravely 03820900

Cap, 2.5" Air Cleaner Intake (023)

Note: (023)

$68.99

$

In Stock, only 2 left!

0

39

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

40

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

42

Gravely 08905500

Bushing, S.407 x .625 x .813 Steel

$13.99

$

In Stock, only 1 left!

0

43

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 05900125

Bolt, Hex .38-16 x 1.25 Grade 5 EP30 (023)
(Superseded to 05901507)

Note: (023)

$2.49

$

In Stock, only 3 left!

0

45

Gravely 06434200

Washer, Thrust 1.125 x 1.750 x .1245

$20.99

$

Usually ships in 4-12 days

0

46

Gravely 06602600

Key, Square .25 x 2.50 x .25

$5.99

$

In Stock, only 3 left!

0

47

Gravely 06900339

Clamp, Hose 2.75 Diameter Worm (023)

Note: (023)

$

$

Not available

48

Gravely 05931800

Screw, Socket Head M8 x 1.25 x 20

$2.49

$

Usually ships in 4-12 days

0
