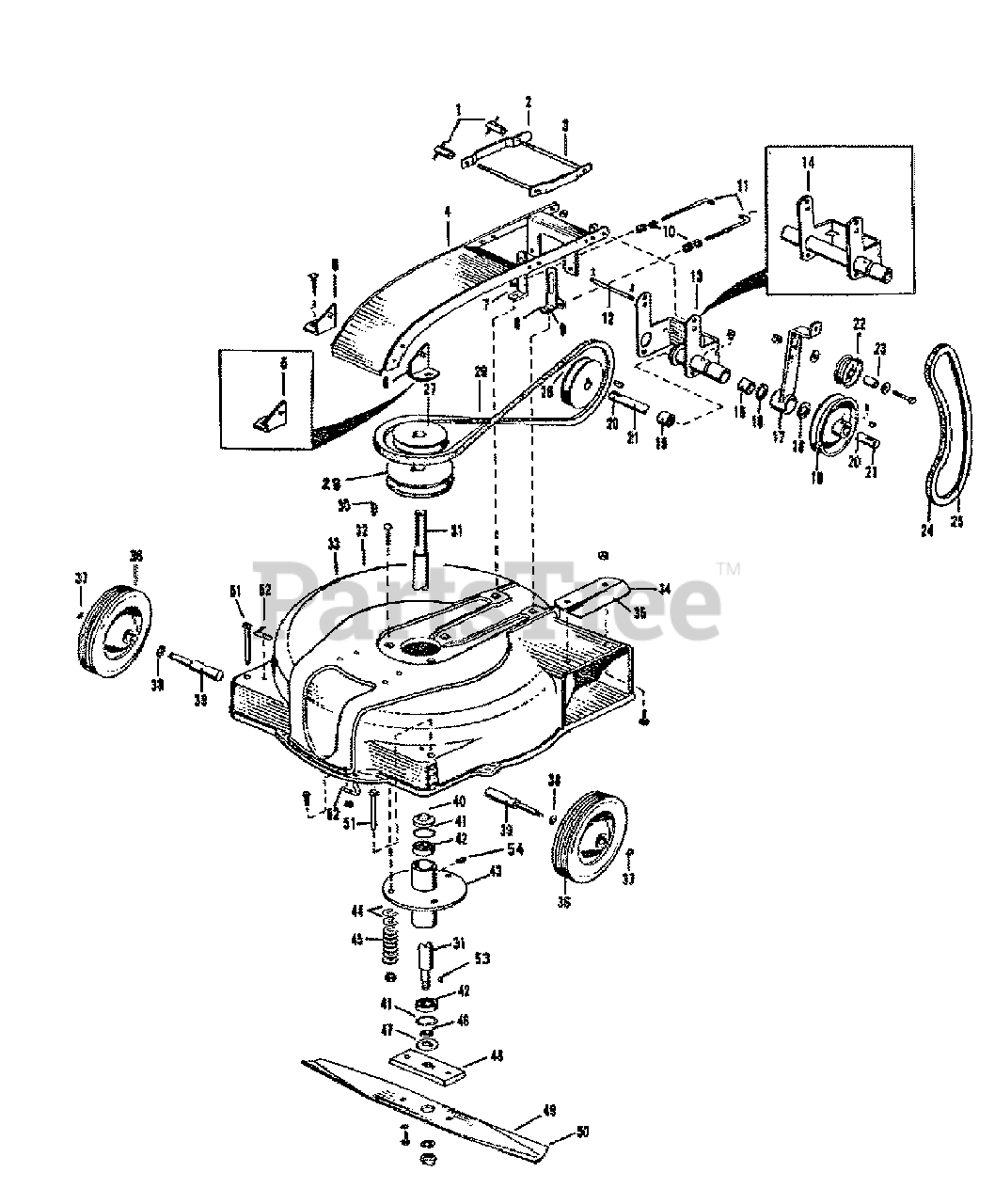

990020 - Simplicity 24" Mower Deck Mower Group - Rotary Lawn Mowers (3554I01) Parts Diagram

24" Mower Deck

Mower Group - Rotary Lawn Mowers (3554I01) Parts Diagram

  • Title

1

Simplicity 8161041

T-NUT, Complete

$0.99

$

Usually ships in 2-12 days

0

2

Simplicity 103001

HITCH SIDE PLATE

$

$

Not available

3

Simplicity 8162501

HITCH CLAMP ASSEMBLY

$

$

Not available

4

Simplicity 108002

PUSH ARM ASSEMBLY

$

$

Not available

5

Simplicity 108024

BRACKET, R.H.

$

$

Not available

6

Simplicity 108023

BRACKET, L.H. (24")

$

$

Not available

7

Simplicity 108018

SUPPORT ASSEMBLY, R.H.

$

$

Not available

8

Simplicity 108017

SUPPORT ASSEMBLY, L.H.

$

$

Not available

9

Simplicity 108015

SUPPORT (20")

$

$

Not available

10

Simplicity 1729278SM

SPRING (20")

$2.49

$

Usually ships in 2-12 days

0

11

Simplicity 2108034

ROD

$

$

Not available

12

Simplicity 108035

PIVOT PIN

$

$

Not available

13

Simplicity 108016

DRIVE BRACKET ASSEMBLY (24")

$

$

Not available

14

Simplicity 108043

DRIVE BRACKET ASSEMBLY (20")

$

$

Not available

15

Simplicity 2108054

BEARING, Needle)

$

$

Not available

16

Simplicity 8151063

RETAINING RING

$

$

Not available

17

Simplicity 108032

IDLER LEVER ASSEMBLY

$

$

Not available

18

Simplicity 2116001

WASHER

$

$

Not available

19

Simplicity 108026

PULLEY

$

$

Not available

20

Simplicity 108014

SHAFT, Idler (24")

$

$

Not available

21

Simplicity 108045

SHAFT, Idler (20")

$

$

Not available

22

Simplicity 2156124SM

IDLER PULLEY ASSEMBLY

$

$

Not available

23

Simplicity 1729274SM

INNER BEARING RACE

$

$

Not available

24

Simplicity 1608954SM

V" BELT 33" (Drive)(24" Mower)`

$14.99

$

Usually ships in 2-12 days

0

25

Simplicity 2158573SM

V" BELT 31" (Drive)(20" Mower)`

$20.99

$

Usually ships in 2-12 days

0

26

Simplicity 108025

PULLEY

$

$

Not available

27

Simplicity 108056

PULLEY

$

$

Not available

28

Simplicity 108025

PULLEY

$

$

Not available

29

Simplicity 2108059

A35S SUPER COMBINE CROSS DRIVE BELT

$

$

Not available

30

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

31

Simplicity 108008

ARBOR

$

$

Not available

32

Simplicity 108001

HOUSING (24")

$

$

Not available

33

Simplicity 108048

HOUSING (20")

$

$

Not available

34

Simplicity 108060

DEFLECTOR (24")

$

$

Not available

35

Simplicity 108061

DEFLECTOR (20")

$

$

Not available

36

Simplicity 108049

WHEEL w/TIRE

$

$

Not available

37

Simplicity 108053

RING, Retaining

$

$

Not available

38

Simplicity 108058

WASHER, Spring Tension

$

$

Not available

39

Simplicity 108036

AXLE

$

$

Not available

40

Simplicity 108038

SHIELD

$

$

Not available

41

Simplicity 108051

RETAINING RING

$

$

Not available

42

Simplicity 108052

BALL BEARING

$

$

Not available

43

Simplicity 108010

ARBOR HOUSING ASSEMBLY

$

$

Not available

44

Simplicity 108077

SHIM, .032 Thick

$

$

Not available

45

Simplicity 108076

SHIM, .0625 Thick

$

$

Not available

46

Simplicity 108033

SPACER

$

$

Not available

47

Simplicity 108040

WASHER, Arbor

$

$

Not available

48

Simplicity 8131007

ARBOR FLANGE

$

$

Not available

49

Simplicity 108004

KNIFE BLADE (24")

$

$

Not available

50

Simplicity 108042

KNIFE BLADE (20")

$

$

Not available

51

Simplicity 108037

PIN, Lock

$

$

Not available

52

Simplicity 108039

LATCH

$

$

Not available

53

Simplicity 2725001

KEY

$

$

Not available

54

Simplicity 2726002

PIPE PLUG, 1/8" Standard

$

$

Not available
