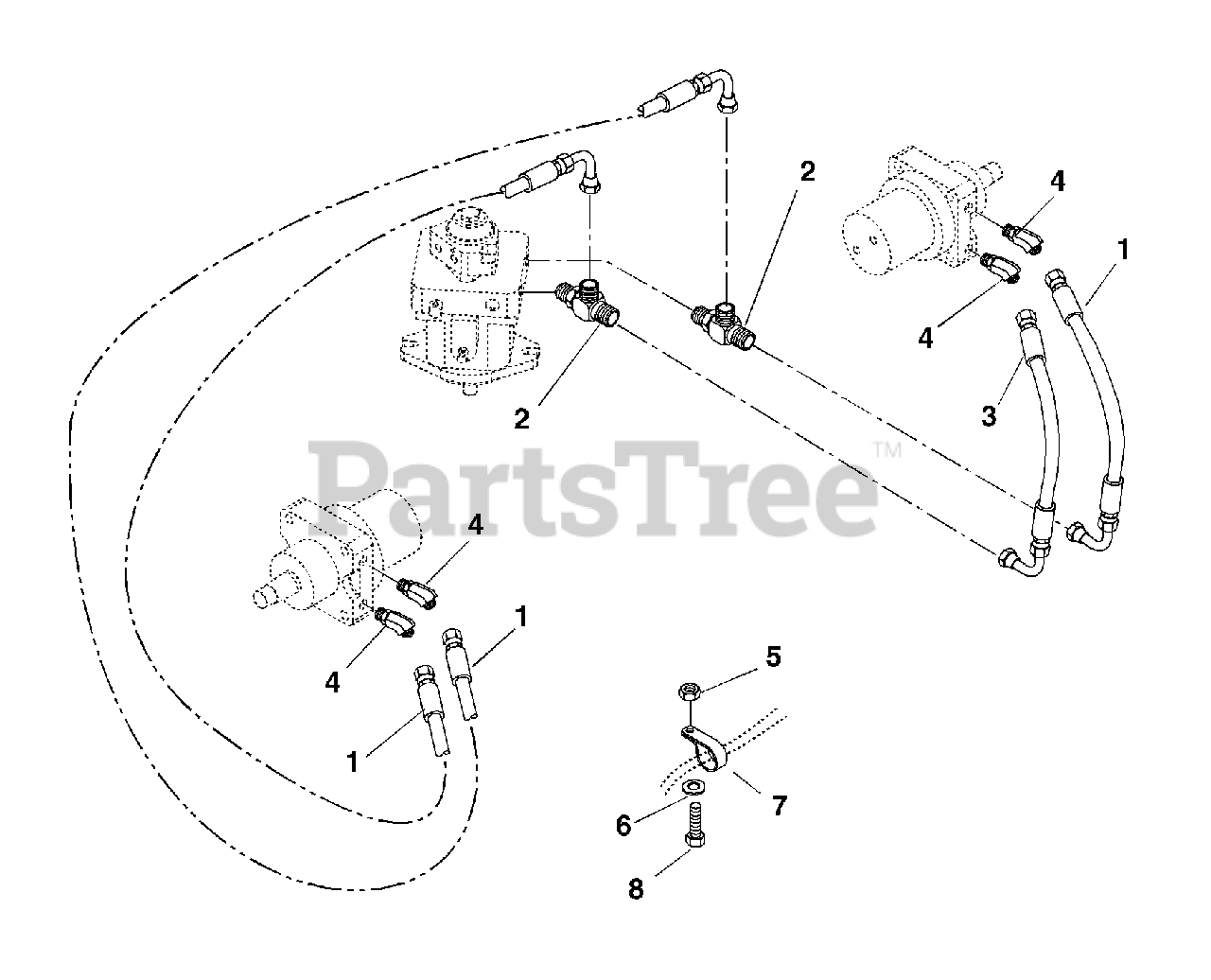

990020 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 23hp Kawasaki (SN: 001000 - 001999) Pump To Wheel Motors Circuit Parts Diagram

Pro-Master Zero-Turn Mower, 23hp Kawasaki

Pump To Wheel Motors Circuit Parts Diagram

  • Title
1

Gravely 04912100

Hose, Pump To Motor

$77.99

$

In Stock, only 1 left!

0

2

Gravely 07063400

Fitting, Hydraulic

$

$

Not available

3

Gravely 04911300

Hose, Pump To Motor

$

$

Not available

4

Gravely 07063500

Fitting, Hydraulic

$39.99

$

Usually ships in 4-12 days

0

5

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 045279

Clamp, Nylon
(Superseded to 06939900)

$

$

Not available

8

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
