990020 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 23hp Kawasaki (SN: 001000 - 001999) Engine, Clutch, Fuel And Exhaust Parts Diagram

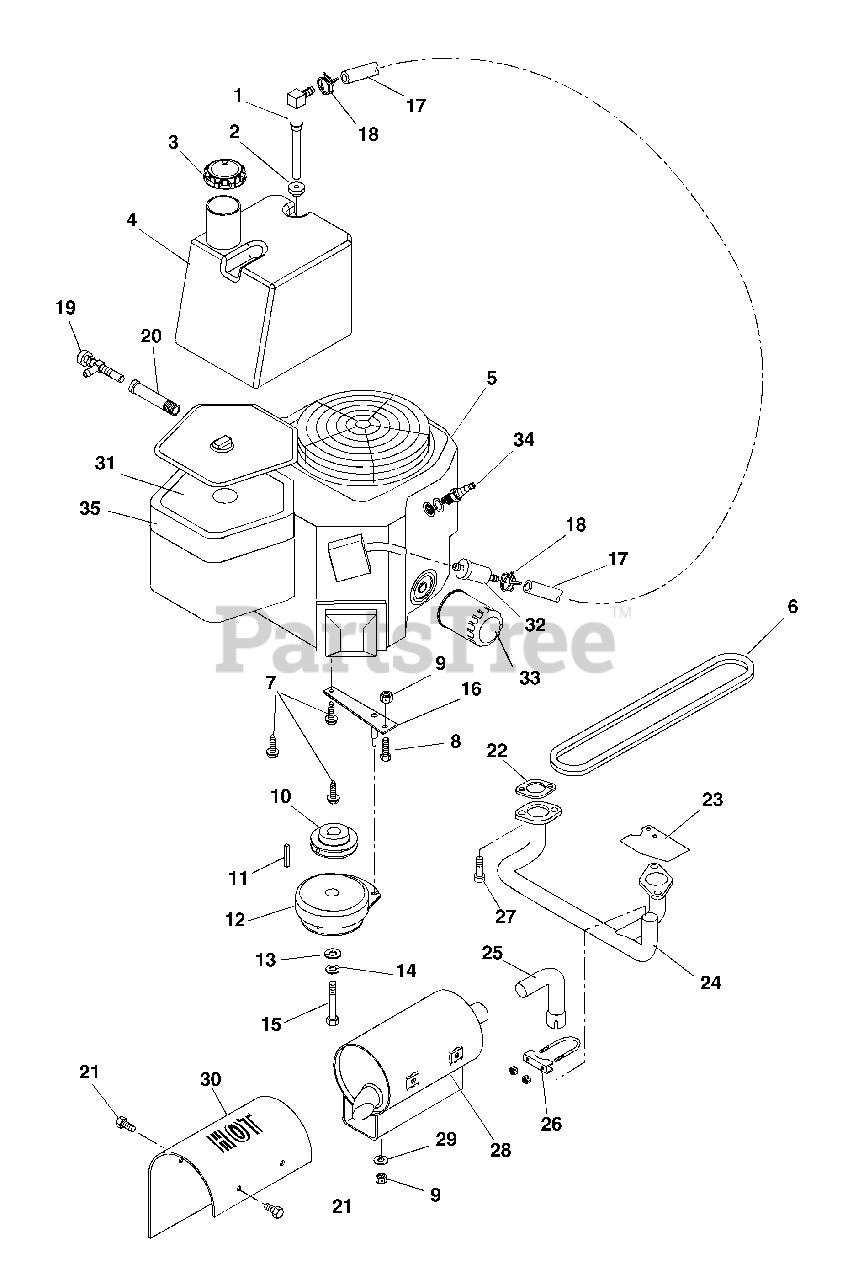

Pro-Master Zero-Turn Mower, 23hp Kawasaki

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

2

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

4

Gravely 09098400

Tank, Fuel

$

$

Not available

5

Gravely 08266500

Engine, 27HP Kohler 6-Pin (018)

Note: (018)

$

$

Not available

5

Gravely 08263000

Engine, 25HP Kawasaki (020)

Note: (020)

$

$

Not available

6

Gravely 052974

V-Belt A-Section 24.90 x .500 /.031
(Superseded to 07224300)

$42.99

$

In Stock, only 2 left!

0

7

Gravely 07414100

Screw-Tapping Hex-Washer-Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07325300

Pulley-4.46 Dia. x 1.12 Bore

$83.99

$

In Stock, only 1 left!

0

11

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09232700

Electric Clutch
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

13

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

14

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 09099600

Anchor-Clutch

$102.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 10

0

19

Gravely 07025000

Nipple, Pipe .38 x 6.00 Unfinished Steel

$

$

Not available

20

Gravely 03563600

Pipe Cap

$

$

Not available

21

Gravely 05971300

Bolt, Hex M5 - .8 x 8 mm

$

$

Not available

22

Gravely 044390

Gasket-Exhaust (018)
(Superseded to 08824700)

Note: (018)

$10.99

$

In Stock, only 2 left!

0

23

Gravely 09066500

Heat Deflector (018)

Note: (018)

$

$

Not available

24

Gravely 04940300

Manifold-Kohler CV18-27 (018)

Note: (018)

$

$

Not available

24

Gravely 04940400

Manifold-Kawasaki, PM310 (020)

Note: (020)

$

$

Not available

25

Gravely 04940500

Tube, Manifold

$

$

Not available

26

Gravely 07067900

U-Bolt, 1/4-20 x 1.50

$

$

Not available

27

Gravely 051666

Screw-Socket Head M8-1.25 x 20 mm
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 09065600

Muffler (Includes 09066300 Heat Shield)

Note: (Includes 09066300 Heat Shield)

$

$

Not available

29

Gravely 06437500

Washer, Flat-Steel
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

30

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$

$

Not available

31

Gravely 21416800

Air Filter (018)
(Superseded to 08563700)

Note: (018)

$23.99

$

In Stock, only 1 left!

0

31

Gravely 21535900

Air Filter (020)

Note: (020)

$29.99

$

Usually ships in 4-12 days

0

32

Gravely 21410800

Fuel Filter
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

33

Gravely 21397200

Filter, Oil- Kohler CV20 (018)
(Superseded to 20715100)

Note: (018)

$18.99

$

In Stock, only 4 left!

0

33

Gravely 21535800

Filter, Oil- Kawasaki (020)
(Superseded to 49065-0724)

Note: (020)

$18.99

$

In Stock, Qty 20+

0

34

Gravely 21525900

Spark Plug (018)
(Superseded to 21541700)

Note: (018)

$3.49

$

In Stock, Qty 20+

0

34

Gravely 21536100

Spark Plug (020)

Note: (020)

$3.49

$

In Stock, Qty 11

0

35

Gravely 21416700

Element, Precleaner (018)
(Superseded to 08563900)

Note: (018)

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 21536000

Element, Precleaner (020)

Note: (020)

$18.99

$

Usually ships in 4-12 days

0
