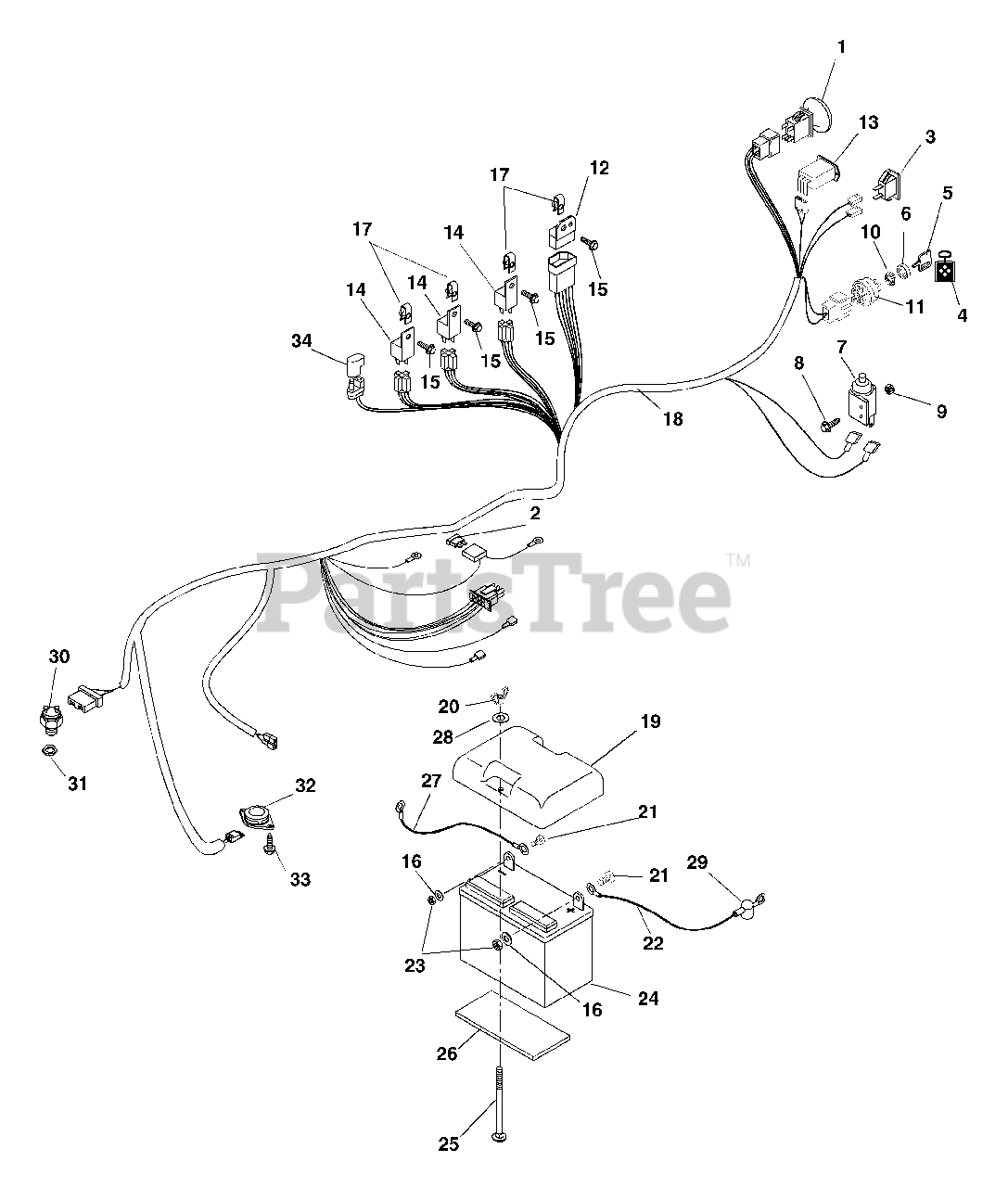

990020 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 000999) Electrical Parts Diagram

Pro-Master Zero-Turn Mower, 23hp Kawasaki

Electrical Parts Diagram

  • Title

1

Gravely 01545600

Switch-Clutch with Retainer Ring

$25.99

$

In Stock, Qty 20+

0

2

Gravely 00524600

Fuse, 30 Amp

$

$

Not available

3

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

4

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

5

Gravely 02460700

Key with Cap

$7.99

$

In Stock, Qty 20+

0

6

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 09251900

Switch-Single Pole (N.O.) with Cover

Note: (N.O.) with Cover

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

Nut-Locking-Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 019667

Washer-Lock-Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 01563700

Key Switch (018)

Note: (018)

$34.99

$

In Stock, only 1 left!

0

11

Gravely 03602300

Key Switch (020)

Note: (020)

$26.99

$

Usually ships in 4-12 days

0

12

Gravely 09044200

Module, Time Delay

$71.99

$

In Stock, only 1 left!

0

13

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

14

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

15

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

16

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07027700

Retainer Nut 10-24

$

$

Not available

18

Gravely 04912700

Harness-Wiring
(Superseded to 03287400)

$230.99

$

Usually ships in 4-12 days

0

19

Gravely 04912900

Cover-Battery

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

21

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 047649

Cable-Starter
(Superseded to 03492500)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

24

Gravely 03621100

Battery

$

$

Not available

25

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, only 1 left!

0

26

Gravely 050417

Pad,Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

27

Gravely 09222700

Cable, Negative Battery 35" Long
(Superseded to 03288200)

$22.99

$

Usually ships in 4-12 days

0

28

Gravely 050365

Washer-Flat-Steel .28 x .62 x .065 .
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 07533200

Boot, Eyelet Terminal (018)

Note: (018)

$3.49

$

In Stock, only 3 left!

0

30

Gravely 034640

Switch, Neutral Start (N.C.)
(Superseded to 08803700)

Note: (N.C.)

$34.99

$

In Stock, only 1 left!

0

31

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 045036

Switch, Seat
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

33

Gravely 07411900

Screw-Tapping 12-24X.50 Hex Washer Head
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

34

Gravely 03081700

Molded Diode Plug

$26.99

$

Usually ships in 4-12 days

0

35

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
