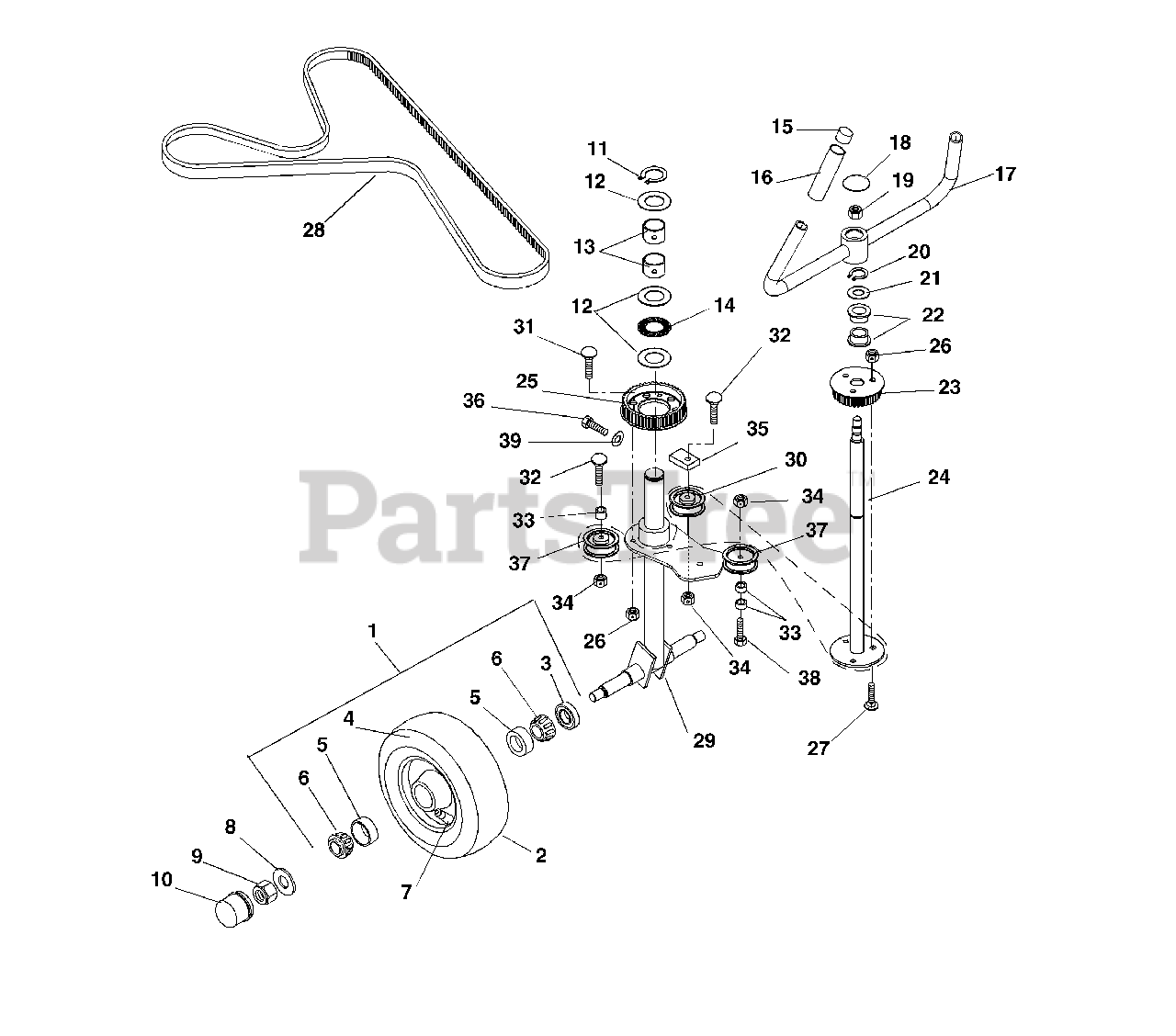

990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Steering, And Rear Wheels Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

Steering, And Rear Wheels Parts Diagram

  • Title

1

Gravely 07153100

Tire/Wheel Assembly 6.50-8
(Superseded to 07100220)

Note: (Contains Items 2-6)

$

$

Not available

2

Gravely 07156000

Tire, 16 x 6.5-8 4-Pulley Rib Tread

$

$

Not available

3

Gravely 038920

Seal
(Superseded to 20655500)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 07148300

Wheel Assembly 3.75 x 8

$

$

Not available

5

Gravely 038109

Bearing-Cup 1.980 x 4.20
(Superseded to 05407000)

$17.99

$

In Stock, Qty 20+

0

6

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

7

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

8

Gravely 06439000

Washer, Flat-Steel .812 x 1.50 x .135
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06535400

Nut, Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 038919

Cap, Dust
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0

11

Gravely 046333

Ring, Retaining-External 1.50 x 1.38
(Superseded to 05715500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 018954

Washer-Thrust 1.502 x 2.18 x .063
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

13

Gravely 044954

Bearing-1.00 x 1.13 x 1.00
(Superseded to 05516500)

$41.99

$

Usually ships in 4-12 days

0

14

Gravely 035639

Bearing-Needle-Thrust 1.50 x 2.18 x .078
(Superseded to 05424700)

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

16

Gravely 04910200

Grip

$10.99

$

In Stock, Qty 20+

0

17

Gravely 04910151

Weldment, Handlebar

$173.99

$

Usually ships in 4-12 days

0

18

Gravely 07528400

Hole Plug 1.38

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 06530300

Nut-Locking-Nylon .625-18
(Superseded to 06500936)

$3.99

$

In Stock, only 3 left!

0

20

Gravely 017980

Ring-Retaining-External .906 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

21

Gravely 017959

Washer-Thrust 1.55 x 1.00 x .09
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

22

Gravely 018355

Bushing-Flange 1.02 x 1.38 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

23

Gravely 09099800

Sprocket, Steering

$

$

Not available

24

Gravely 04909700

Weldment, Steering Shaft

$

$

Not available

25

Gravely 01583700

Sprocket, Drive

$90.99

$

Usually ships in 4-12 days

0

26

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 07238100

Belt, Double COG

Note: Kit number 5903300 is available to replace the cog belt (p/n 07238100). If this kit has already been installed, refer to kit 5903300 for replacement parts.

$127.99

$

Usually ships in 4-12 days

0

29

Gravely 09098651

Weldment, Caster Wheel

$

$

Not available

30

Gravely 07308900

Idler- 2.25 x .87

$34.99

$

In Stock, only 1 left!

0

31

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06220500

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 2
(Superseded to 06224300)

$3.99

$

In Stock, only 4 left!

0

33

Gravely 02506200

Spacer .38 x .75 x .236

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 09099400

Plate, Idler Adjustment

$

$

Not available

36

Gravely 05963500

Bolt-Hex .31-24 x 1.50 Grade 5

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 07311100

Idler-Flat 2.75 x .38

$39.99

$

In Stock, only 3 left!

0

38

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

39

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
