990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Parking Brake Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

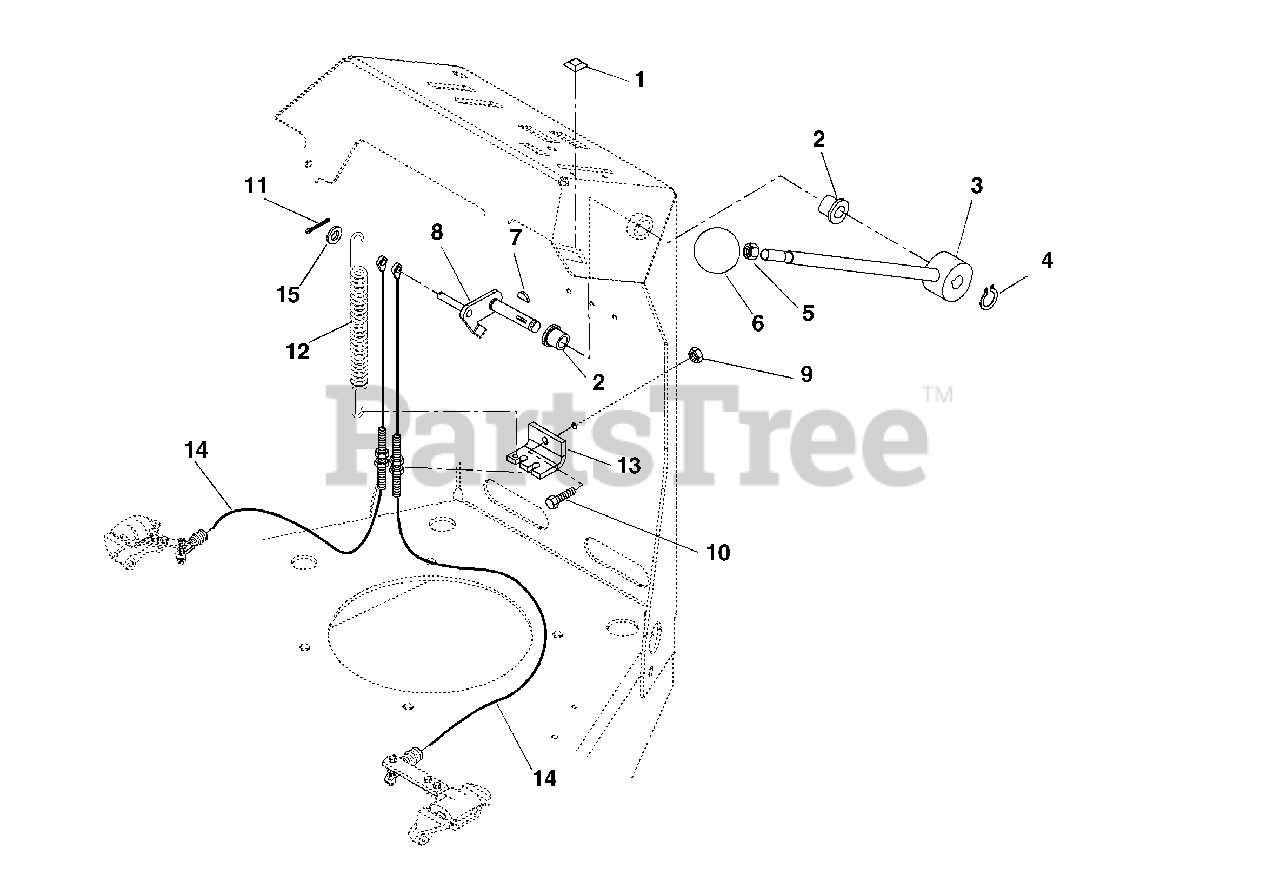

Parking Brake Parts Diagram

  • Title

1

Gravely 040176

Stop
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 05503100

Bushing-Flange .50 x .75 x .75 x 1.00

$9.99

$

In Stock, only 4 left!

0

3

Gravely 04912600

Weldment, Parking Brake Lever

$122.99

$

Usually ships in 4-12 days

0

4

Gravely 05717100

Ring-Retaining-External .50 x .05

$2.49

$

In Stock, Qty 8

0

5

Gravely 06535900

Nut-Hex-Jam .38-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 039360

Knob-Steering Lock
(Superseded to 07505200)

$20.99

$

In Stock, only 1 left!

0

7

Gravely 124545

Key-Woodruff .13 X .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

8

Gravely 04912500

Weldment, Shaft Brake Activation

$93.99

$

Usually ships in 4-12 days

0

9

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 10

0

12

Gravely 08316400

Spring-Tension .062 x .56 x 8.0
(Superseded to 08300538)

$14.99

$

In Stock, Qty 20+

0

13

Gravely 04911200

Bracket, Cable

$

$

Not available

14

Gravely 06947000

Cable, Parking Brake

$75.99

$

In Stock, only 1 left!

0

15

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
