990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Lift Valve And Cylinder Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

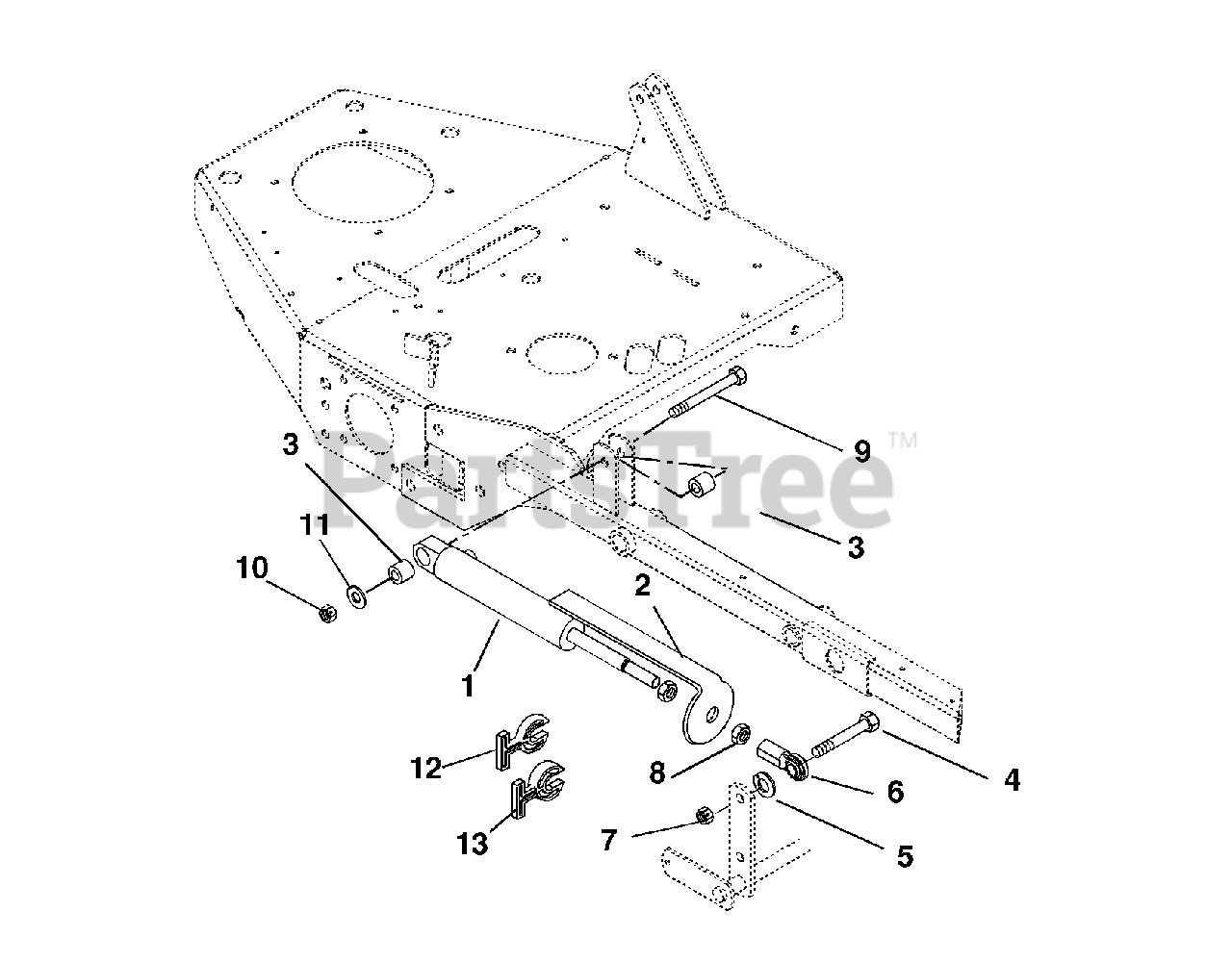

Lift Valve And Cylinder Parts Diagram

  • Title

1

Gravely 09245100

Cylinder-Hydraulic Lift
(Superseded to 04864700)

$516.99

$

Usually ships in 4-12 days

0

2

Gravely 09255900

Strap-Height of Cut Indicator

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 09215200

Bushing .516 x 1.000 x 1.05

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

5

Gravely 06309500

Washer-Lock .62 x .156

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 09221600

Rod End-Right Hand-Female .63

$25.99

$

Usually ships in 4-12 days

0

7

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06539600

Nut-Jam .63-18

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .25

$5.99

$

In Stock, only 4 left!

0

12

Gravely 09212200

Stop, Cylinder .34 Thick

$11.99

$

In Stock, only 2 left!

0

13

Gravely 09212300

Stop, Cylinder .68 Thick

$11.99

$

In Stock, Qty 20+

0
