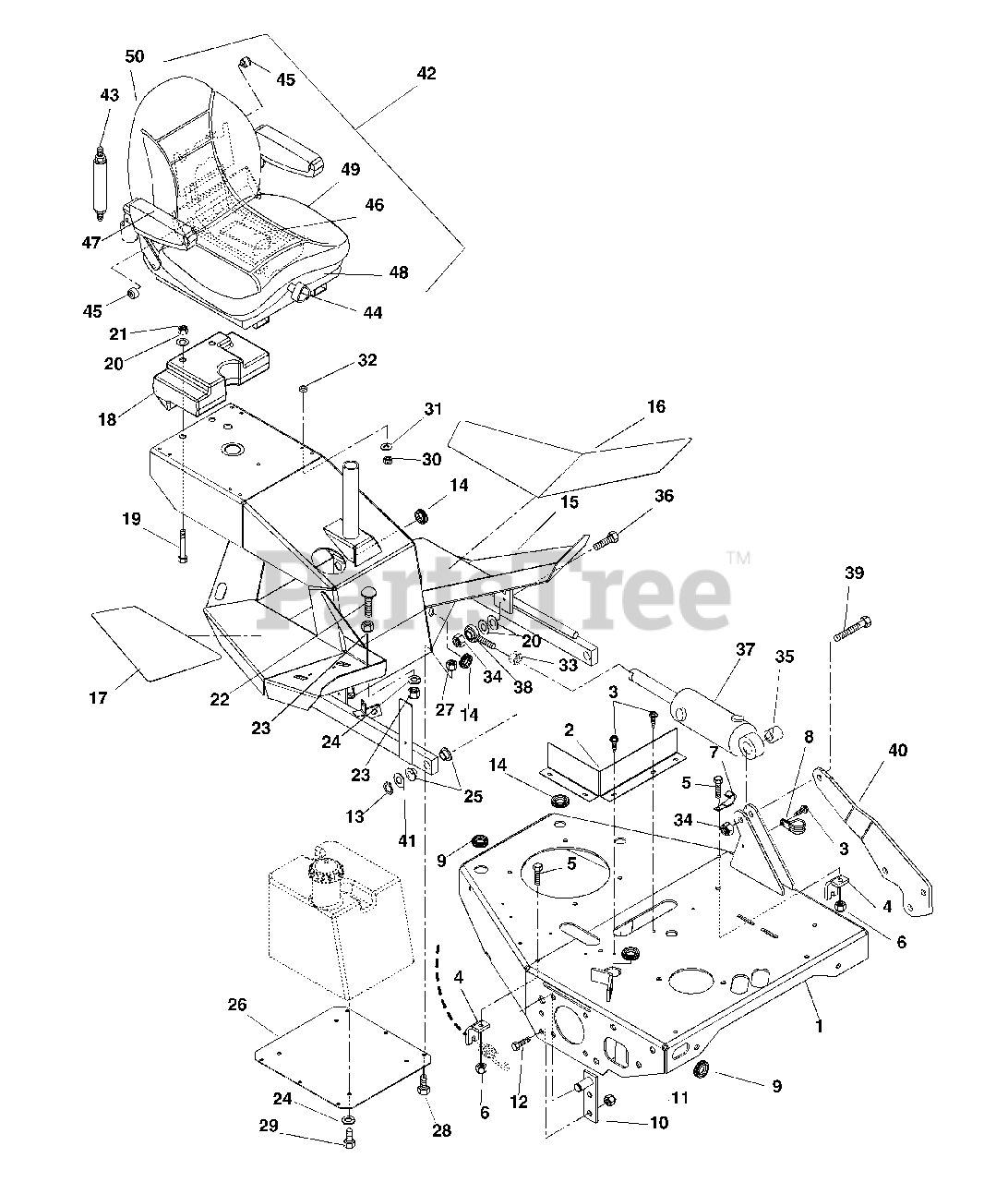

990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Frame, Sulky Frame And Seat Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

Frame, Sulky Frame And Seat Parts Diagram

  • Title

1

Gravely 04908953

Weldment, Frame
(Superseded to 03295453)

$775.99

$

Usually ships in 4-12 days

0

2

Gravely 08897500

Heat Shield

$

$

Not available

3

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 045383

Bracket,Cable
(Superseded to 08968400)

$

$

Not available

5

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 050395

Clamp, Steel 1.0
(Superseded to 06917900)

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 052579

Grommet 1.25
(Superseded to 07536800)

$12.99

$

Usually ships in 4-12 days

0

10

Gravely 04911800

Weldment, Pivot

$

$

Not available

11

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

14

Gravely 045290

Grommet 75 x 1.06 x 1.38
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 09099953

Weldment, Sulky

$

$

Not available

16

Gravely 04909900

Pad, Left Hand Floorboard

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 04910000

Pad, Right Hand Floorboard

$

$

Not available

18

Gravely 04912251

Weight, Rear

$

$

Not available

19

Gravely 05961900

Bolt-Hex .50-13 x 4.00 Grade 5
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

23

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

24

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 010174

Bushing, Flange-Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

26

Gravely 04909453

Plate, Bottom

$45.99

$

Usually ships in 4-12 days

0

27

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

31

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 039145

Bushing-Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.49

$

In Stock, only 1 left!

0

33

Gravely 06539500

Nut-Jam .50-20 Grade 2

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

35

Gravely 09215200

Bushing, .516 x 1.00 x 1.05

$34.99

$

Usually ships in 4-12 days

0

36

Gravely 05961000

Bolt-Hex .50-13 X 2.25 Grade 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 6

0

37

Gravely 04909800

Cylinder, Platform Lift

$635.99

$

Usually ships in 4-12 days

0

38

Gravely 044950

Assembly-Rod End Right Hand
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

39

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

40

Gravely 04913153

Support, Cylinder Brace

$43.99

$

Usually ships in 4-12 days

0

41

Gravely 06413400

Washer-Hardened-Thrust .758 x 1.23 x .031

$3.49

$

In Stock, only 2 left!

0

42

Gravely 09230000

Seat-Suspension
(Superseded to 79207100)

$

$

Not available

43

Gravely 59201300

Kit-Damper with Hardware

$199.99

$

Usually ships in 4-12 days

0

44

Gravely 59201600

Kit-Knob (1 per bag)

Note: (1 per bag)

$

$

Not available

45

Gravely 59201700

Kit-Roller (4 per bag)

Note: (4 per bag)

$

$

Not available

46

Gravely 59201800

Kit-Spring Cable (1 per bag)

Note: (1 per bag)

$

$

Not available

47

Gravely 59201900

Kit-Arm Pad (1 per bag)

Note: (1 per bag)

$

$

Not available

48

Gravely 59202000

Kit-Adjuster (1 per carton)

Note: (1 per carton)

$243.99

$

Usually ships in 4-12 days

0

49

Gravely 59202100

Kit-Cushion (1 per carton)
(Superseded to 59203200)

Note: (1 per carton)

$

$

Not available

50

Gravely 59203200

Kit-Seatback

$

$

Not available
