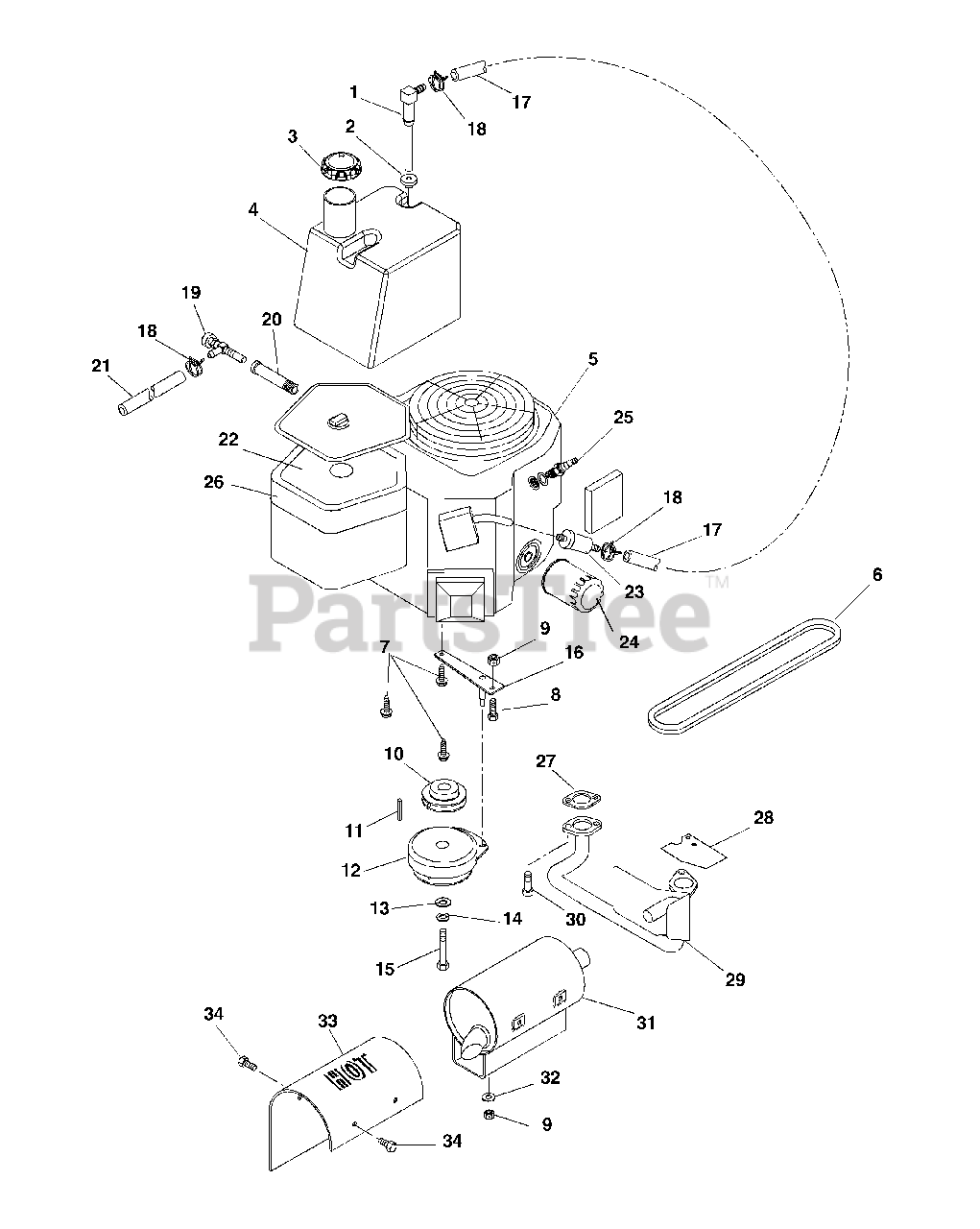

990019 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Engine, Clutch, Fuel And Exhaust Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

Engine, Clutch, Fuel And Exhaust Parts Diagram

  • Title

1

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

2

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09239500

Cap, Gas
(Superseded to 03859100)

$28.99

$

In Stock, Qty 16

0

4

Gravely 09098400

Tank, Fuel

$

$

Not available

5

Gravely 08262600

Engine, 25HP Kohler 6-Pin

Note: (Model 018)

$

$

Not available

5

Gravely 08262900

Engine, 21HP Vanguard- 6 Pin

Note: (Model 019)

$

$

Not available

6

Gravely 052974

V-Belt A-Section 24.90 x .500 /.031
(Superseded to 07224300)

$42.99

$

In Stock, only 2 left!

0

7

Gravely 07414100

Screw-Tapping Hex-Washer-Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07325300

Pulley-4.46 DIA x 1.12 Bore

$83.99

$

In Stock, only 1 left!

0

11

Gravely 06602200

Key-Square .25 x 1.00 x .25

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09232700

Electric Clutch
(Superseded to 00389900)

$491.99

$

In Stock, only 1 left!

0

13

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

14

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Gravely 05965700

Bolt-Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 1 left!

0

16

Gravely 09099600

Anchor-Clutch

$102.99

$

Usually ships in 4-12 days

0

17

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

Note: (Model 018)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

Note: (Model 019)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06939100

Hose-Clamp

$3.99

$

In Stock, Qty 10

0

19

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

20

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 021134

Gas Line-Bulk 1/4" ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 21416800

Air Filter
(Superseded to 08563700)

Note: (Model 018)

$23.99

$

In Stock, only 1 left!

0

22

Gravely 21530000

Air Filter

Note: (Model 019)

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 21410800

Fuel Filter
(Superseded to 21541500)

Note: (Model 018)

$8.99

$

In Stock, Qty 20+

0

23

Gravely 21534000

Fuel Filter

Note: (Model 019)

$5.99

$

In Stock, Qty 20+

0

24

Gravely 21397200

Oil Filter
(Superseded to 20715100)

Note: (Model 018)

$18.99

$

In Stock, only 1 left!

0

24

Gravely 21530700

Oil Filter

Note: (Model 019)

$12.99

$

In Stock, Qty 20+

0

25

Gravely 21525900

Spark Plug
(Superseded to 21541700)

Note: (Model 018)

$4.49

$

In Stock, Qty 20+

0

25

Gravely 21531100

Spark Plug

Note: (Model 019)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 21416700

Element, Precleaner
(Superseded to 08563900)

Note: (Model 018)

$13.99

$

Usually ships in 4-12 days

0

27

Gravely 044390

Gasket-Exhaust
(Superseded to 08824700)

Note: (Model 018)

$10.99

$

In Stock, only 2 left!

0

28

Gravely 09066500

Heat Deflector

Note: (Model 018)

$

$

Not available

29

Gravely 09065500

Manifold-Kohler CV18-25

Note: (Model 018)

$

$

Not available

29

Gravely 04907000

Manifold-Briggs and Stratton

Note: (Model 019)

$

$

Not available

30

Gravely 051666

Screw-Socket Head M8-1.25 x 20 mm
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 09065600

Muffler (Includes 09066300 Heat Shield)

Note: (Includes 09066300 Heat Shield)

$

$

Not available

32

Gravely 06437500

Washer, Flat-Steel
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

33

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$

$

Not available

34

Gravely 05971300

Bolt, Hex M5 - .8 x 8 mm

$

$

Not available
