990018 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 001000 & Above) Front Wheels, Motors And Calipers Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

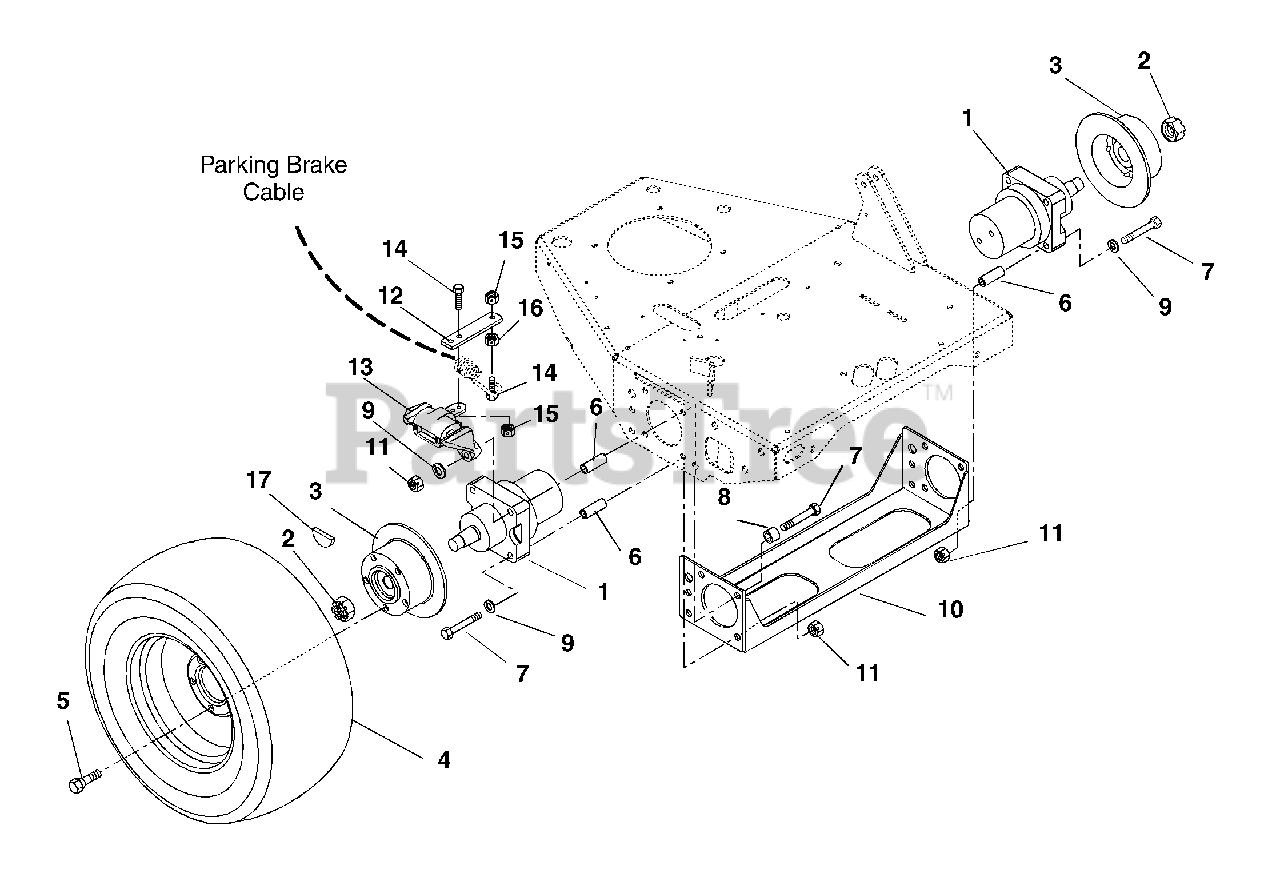

Front Wheels, Motors And Calipers Parts Diagram

  • Title
1

Gravely 09232300

Motor, Hydraulic Wheel

Note: (Includes 2)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06541900

Nut, Locking-Jam-Patch 1.00-20

Note: (Included with 1)

$30.99

$

In Stock, only 1 left!

0

3

Gravely 09247100

Hub and Disc

$297.99

$

Usually ships in 4-12 days

0

4

Gravely 07148900

Wheel-Tire 23 x 10.50 - 12 Multi-Trac
(Superseded to 07101116)

$290.99

$

In Stock, only 1 left!

0

5

Gravely 034597

Bolt-Lug .50-20 x 1.62
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

6

Gravely 05531400

Bushing-Sleeve .513 x .748 x 2.129

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 05975400

Bolt-Hex .50-13 x 5.00 Grade 8

$5.99

$

In Stock, only 2 left!

0

8

Gravely 050351

Spacer .50 x .75 x .32
(Superseded to 00211100)

$3.49

$

In Stock, only 3 left!

0

9

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 04913051

Rod-Motor Connecting

$

$

Not available

11

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 04909200

Arm, Extension Parking Brake

$

$

Not available

13

Gravely 09243600

Caliper, Park Brake (Clockwise) Right Hand

Note: (Clockwise) Right Hand

$193.99

$

Usually ships in 4-12 days

0

13

Gravely 09243500

Caliper, Park Brake (Counterclockwise) Left Hand

Note: (Counterclockwise) Left Hand

$193.99

$

Usually ships in 4-12 days

0

14

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

17

Gravely 09200600

Pad, Disk Brake

$59.99

$

In Stock, only 2 left!

0
