990017 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton (SN: 000101 & Above) Fuel, Engine And Exhaust System Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Briggs & Stratton

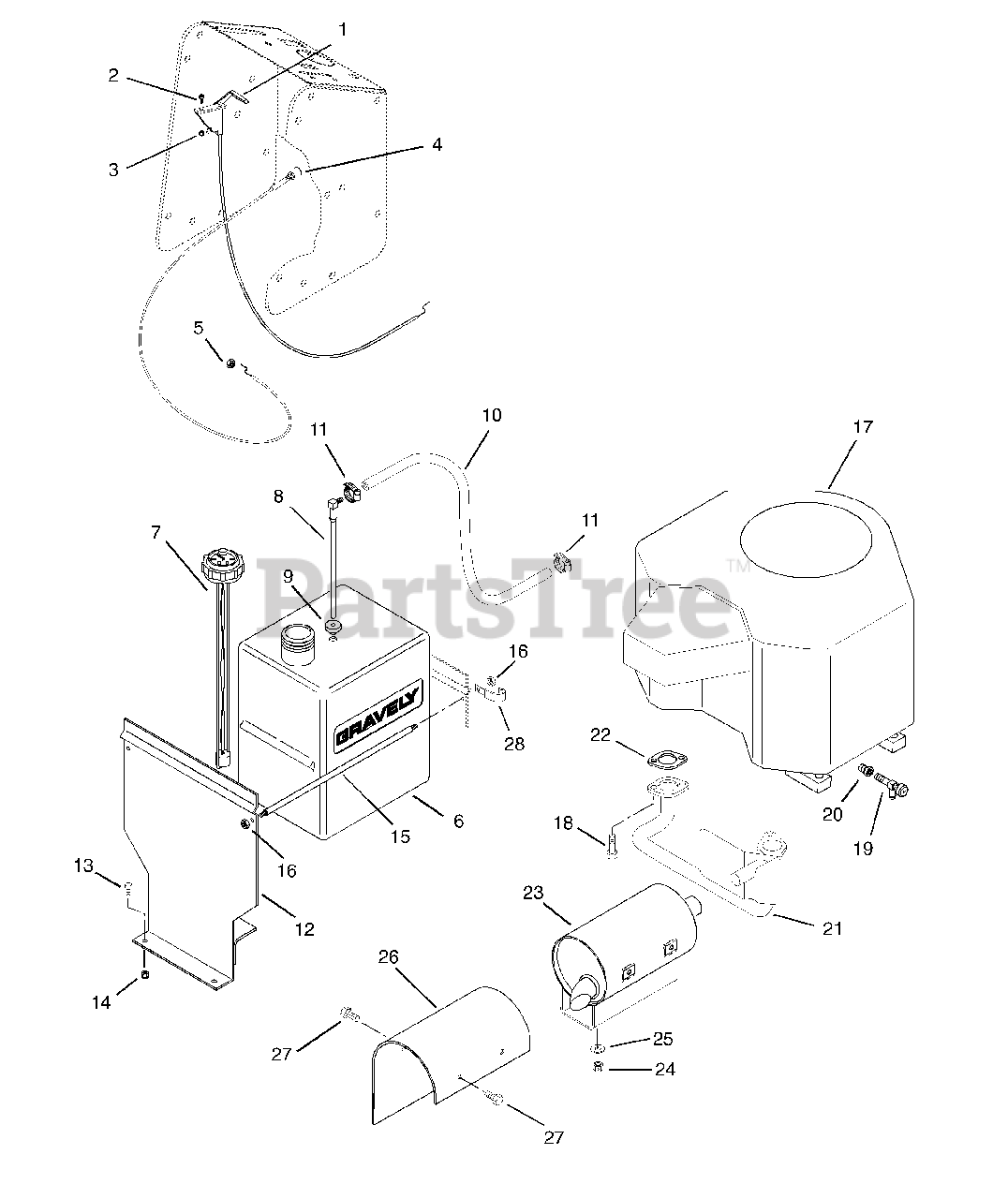

Fuel, Engine And Exhaust System Parts Diagram

  • Title

1

Gravely 06938500

Throttle Cable (015)

Note: (015)

$45.99

$

Usually ships in 4-12 days

0

1

Gravely 06944600

Throttle Cable (017)

Note: (017)

$

$

Not available

2

Gravely 06116700

Screw-Machine 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06940500

Control-Choke (015)

Note: (015)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 06944700

Cable, Choke (017)

Note: (017)

$59.99

$

Usually ships in 4-12 days

0

5

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 047612

Tank-Fuel
(Superseded to 08983000)

$

$

Not available

7

Gravely 047615

Gauge-Fuel
(Superseded to 08983200)

$47.99

$

Usually ships in 4-12 days

0

8

Gravely 047614

Fitting-Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

9

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 09089300

Gas Line Hose 1/4" x 52"

$

$

Not available

11

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 049296

Weldment-Tank Bracket
(Superseded to 08987900)

$

$

Not available

13

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06529800

Nut-Locking-Center .31-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 049359

Rod-Tank
(Superseded to 09037800)

$29.99

$

Usually ships in 4-12 days

0

16

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 08250800

Engine-Kohler CV 25 HP (015)

Note: (015)

$

$

Not available

17

Gravely 08261300

Engine-Briggs & Stratton 21 HP (017)

Note: (017)

$

$

Not available

18

Gravely 05931800

Screw-Socket Head M8-1.25 x 20 mm

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

20

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 09065500

Manifold-Kohler CV18-25 (015)

Note: (015)

$

$

Not available

21

Gravely 04907000

Manifold (017)

Note: (017)

$

$

Not available

22

Gravely 044390

Gasket-Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

23

Gravely 09065600

Muffler (Includes 090663 Heat Shield)

Note: (Includes 090663 Heat Shield)

$

$

Not available

24

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 09066300

Heat Shield (Included with 09065600 Muffler)

Note: (Included with 09065600 Muffler)

$

$

Not available

27

Gravely 05971300

Bolt, Hex M5 - .8 x 8 mm

$

$

Not available

28

Gravely 044715

J-Clamp
(Superseded to 06916000)

$2.49

$

Usually ships in 4-12 days

0
