990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

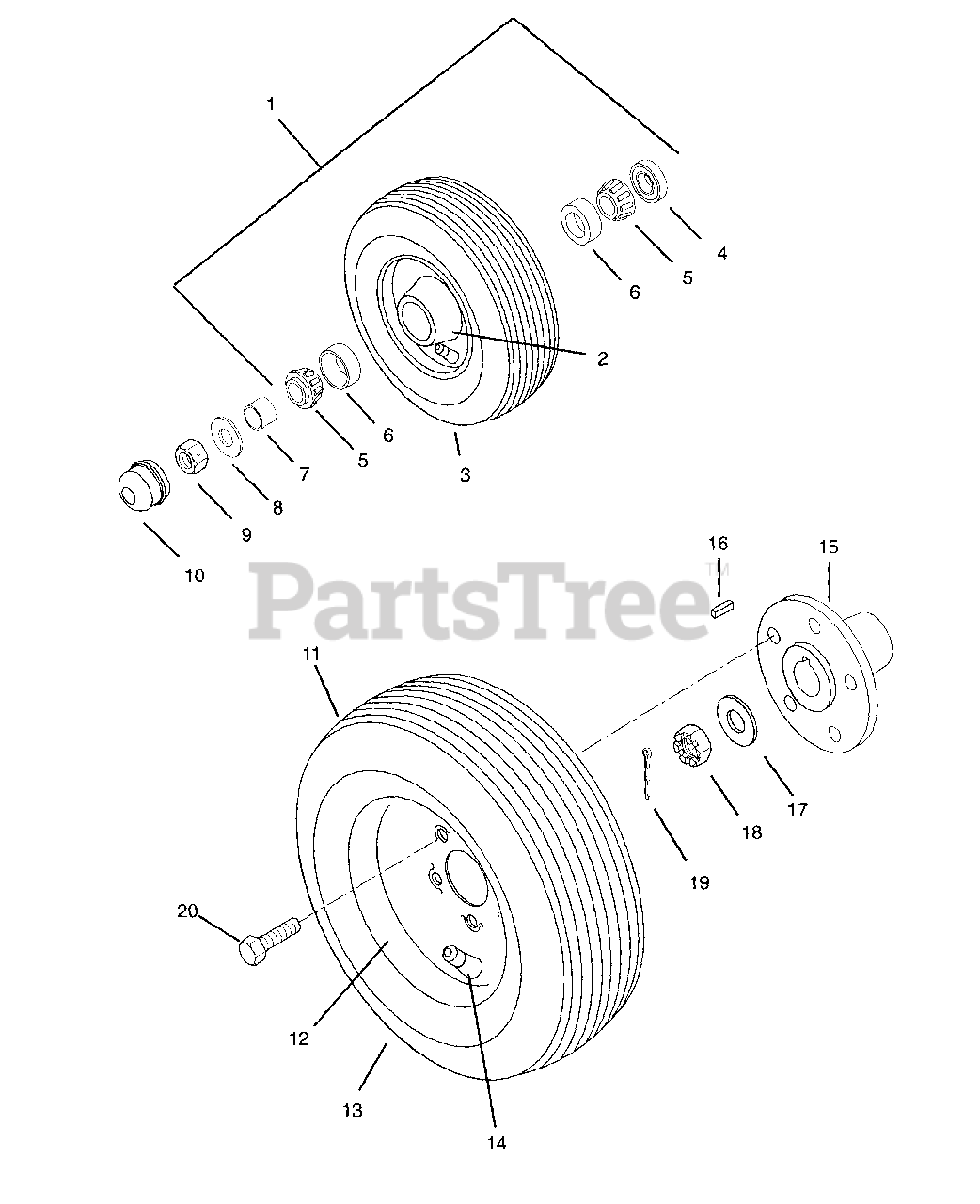

WHEELS Parts Diagram

  • Title

1

Gravely 07146800

Tire/ Wheel Assembly 15 - 6 x 6

$

$

Not available

2

Gravely 07146900

Wheel Assembly
(Superseded to 07146800)

$

$

Not available

3

Gravely 07147100

Tire 15 x 6-6
(Superseded to 07100905)

$45.99

$

In Stock, only 1 left!

0

4

Gravely 05613200

Seal 1.206 x 1.785 x .468

$15.99

$

In Stock, only 2 left!

0

5

Gravely 05404500

Bearing-Cone .750 x .61

$23.99

$

In Stock, Qty 9

0

6

Gravely 05404400

Bearing-Cup 1.781 x .475

$10.99

$

In Stock, Qty 20+

0

7

Gravely 03495900

Spacer .752 x 1.000 x .500

$15.99

$

In Stock, only 2 left!

0

8

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 06535300

Nut-Locking-Center.62-11

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 09079700

Dust Cap

$

$

Not available

11

Gravely 07146700

Tire/Wheel Assembly 20-10 x 10

Note: (Contains items 12-14)

$

$

Not available

12

Gravely 07147000

Wheel 10 x 7.50
(Superseded to 07146700)

$

$

Not available

13

Gravely 07138800

Tire 20 x 10.00 - 10

$

$

Not available

14

Gravely 07520000

Valve Stem Assembly

$2.49

$

In Stock, Qty 5

0

15

Gravely 09068600

Hub, Wheel
(Superseded to 09068651)

$136.99

$

Usually ships in 4-12 days

0

16

Gravely 06601000

Key-Feather .25 x 1.875 x .25

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 06439000

Washer-Flat-Steel .812 x 1.50 x .139
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06538700

Nut-Slotted .75-16

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 06712800

Pin-Cotter .18 x 1.50

$1.99

$

In Stock, only 2 left!

0

20

Gravely 07051400

Bolt, Lug .44-20 x 1.00

$10.99

$

In Stock, only 3 left!

0
