990016 (PM 360) - Gravely Pro-Master Zero-Turn Mower, 22hp Kawasaki (SN: 000101 & Above) HYDRAULIC LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Kawasaki

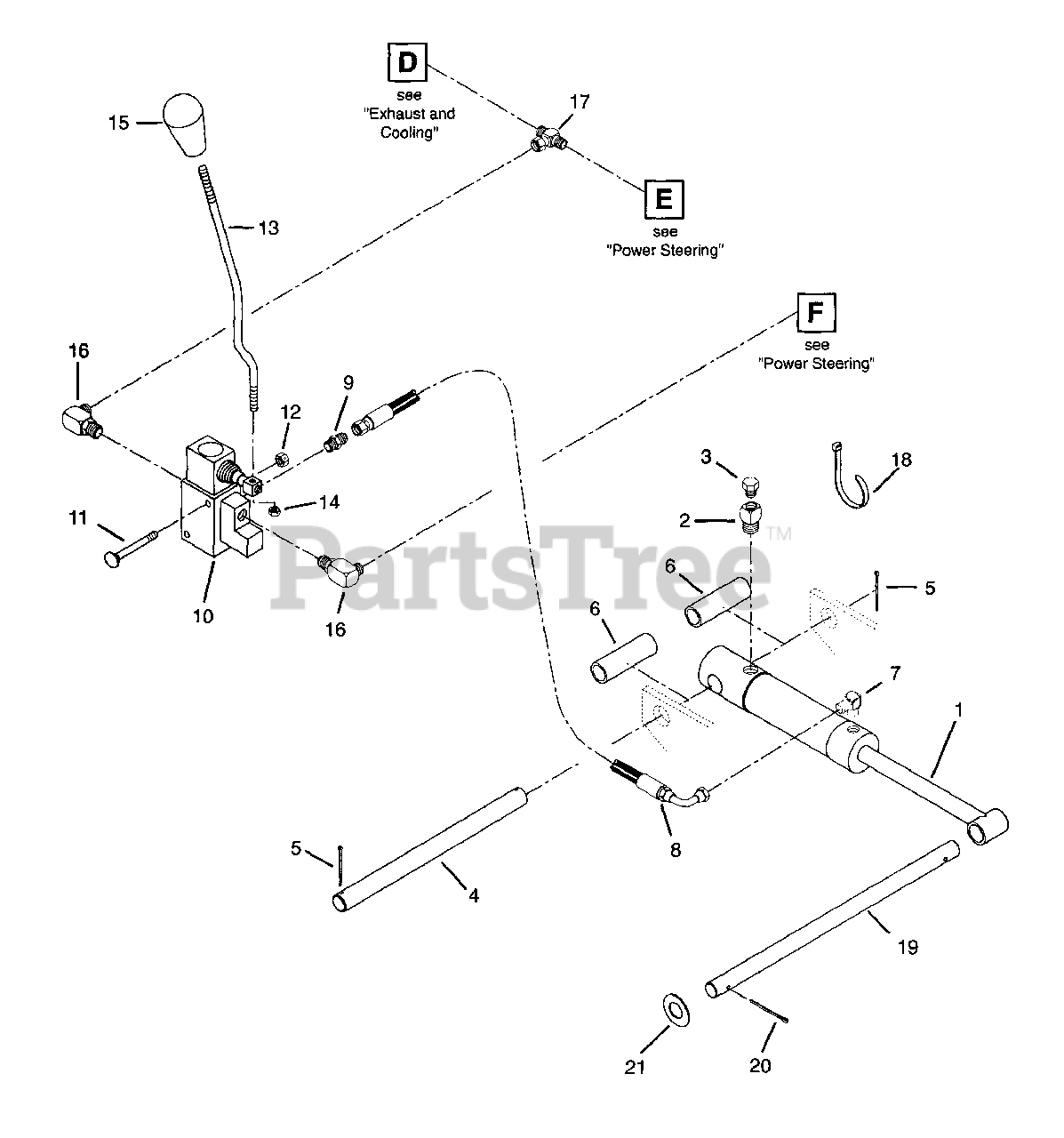

HYDRAULIC LIFT Parts Diagram

  • Title

1

Gravely 09079600

Cylinder, Lift

$291.99

$

Usually ships in 4-12 days

0

2

Gravely 07050700

Adapter, Fitting

$

$

Not available

3

Gravely 07050600

Plug, Breather 3/8"

$

$

Not available

4

Gravely 09051000

Pin-Lift Cylinder Mount

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 06713700

Pin-Cotter
(Superseded to 06712900)

$5.99

$

In Stock, Qty 11

0

6

Gravely 09088700

Spacer, Lift Cylinder

Note: (Model 016)

$

$

Not available

6

Gravely 09051000

Spacer, Lift Cylinder Long

Note: (Model 010)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 09051100

Spacer, Lift Cylinder Short

Note: (Model 010)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 08800800

Adapter
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 09071500

Assembly, Hydraulic Hose

$

$

Not available

9

Gravely 07017500

Adapter-Pipe

$11.99

$

In Stock, only 2 left!

0

10

Gravely 09067400

Valve

$

$

Not available

11

Gravely 06221600

Bolt-Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06529800

Nut-Locking .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09072800

Control Rod

$

$

Not available

14

Gravely 06537800

Nut-Jam M10-1.5

$

$

Not available

15

Gravely 07529900

Knob
(Superseded to 07533500)

$9.99

$

In Stock, Qty 7

0

16

Gravely 07051200

Fitting, Adapter

$

$

Not available

17

Gravely 07042900

Adapter, Fitting Tee

$

$

Not available

18

Gravely 07519900

Tie Wrap, Black

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 09052100

Shaft, Mower Lift

$56.99

$

Usually ships in 4-12 days

0

20

Gravely 06713100

Pin-Cotter .25 x 2.0
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06442600

Washer-Flat-Steel 1.38 x 2.50 x .136

$

$

Not available
