990015 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000676 & Above) Electrical System Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

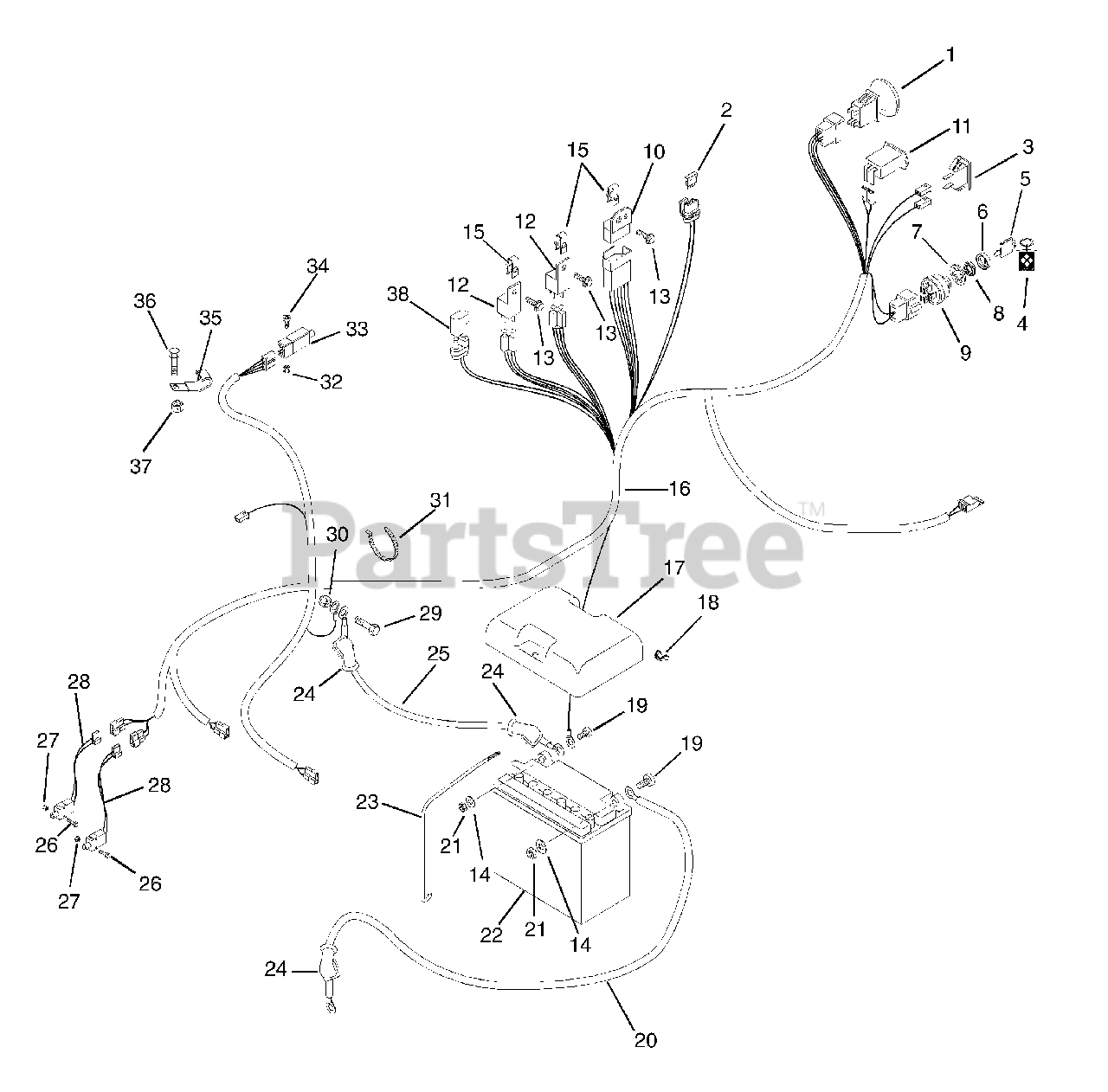

Electrical System Parts Diagram

  • Title

1

Gravely 01545600

Switch-Clutch with Retainer Ring

$25.99

$

In Stock, Qty 20+

0

2

Gravely 00524600

Fuse, 30 Amp

$

$

Not available

3

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

4

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

5

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

6

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

7

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

8

Gravely 019667

Washer-Lock-Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

9

Gravely 03602300

Key Switch

$26.99

$

In Stock, only 1 left!

0

10

Gravely 09044200

Module, Time Delay

$71.99

$

In Stock, only 1 left!

0

11

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

12

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

13

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

14

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07027700

Retainer Nut 10-24

$

$

Not available

16

Gravely 09086200

Harness-Wiring
(Superseded to 09086600)

$

$

Not available

17

Gravely 044348

Cover-Battery
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

18

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

19

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 047649

Cable-Starter
(Superseded to 03492500)

$21.99

$

Usually ships in 4-12 days

0

21

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

22

Gravely 03621100

Battery

$

$

Not available

23

Gravely 051246

Rod-Battery
(Superseded to 09030400)

$

$

Not available

24

Gravely 03384700

Boot-Insulator

$

$

Not available

25

Gravely 042130

Cable-Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

26

Gravely 06116400

Screw-Machine 6-32 x .75

$

$

Not available

27

Gravely 06538900

Nut-Locking-Nylon 6-32 w/Insert

$

$

Not available

28

Gravely 050480

Switch
(Superseded to 08996200)

$52.99

$

Usually ships in 4-12 days

0

29

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 041634

Tie-Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

32

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 03657100

Switch-Single Pole N.O.

$9.49

$

In Stock, only 1 left!

0

34

Gravely 06111700

Screw-Machine .38-7.0

$

$

Not available

35

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

36

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 03081700

Molded Diode Plug

$26.99

$

In Stock, only 1 left!

0
